JINDAL Vertical Freeze Dryer is suitable for freeze drying tests of laboratory biomedical samples. These are widely used in drugs, biological products, chemical & food industries. On the heat sensitive substances such as antibiotics, vaccines, blood products, hormones & other biological tissue enzymes, freeze drying technology is used.
Latest Ergonomic Features:
|
Model
|
SMI-114V-12S
|
SMI-114V-12P
|
SMI-114V-12T
|
SMI-114V-12PT
|
|---|---|---|---|---|
|
Type
|

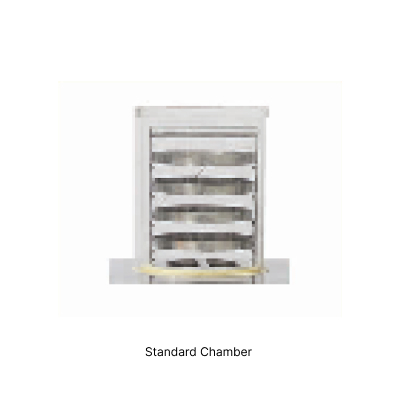

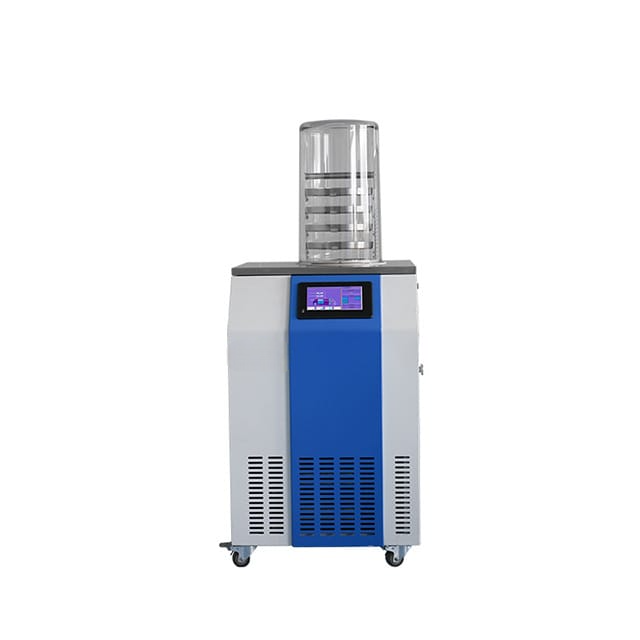

Standard Chamber
|

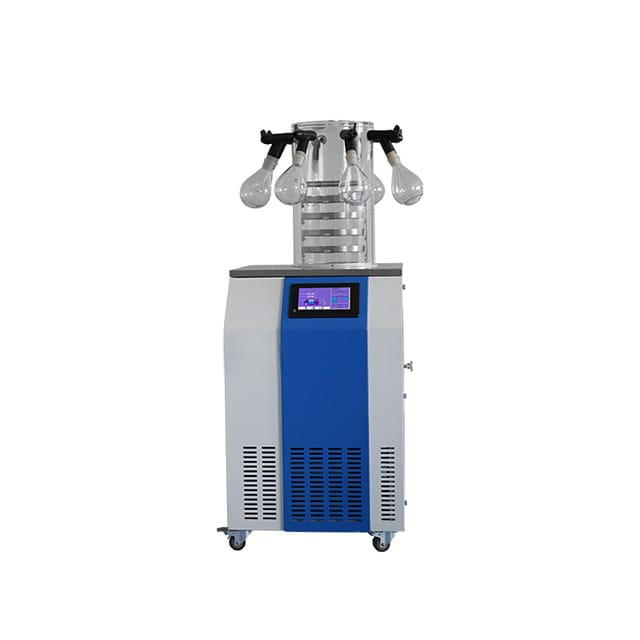

Standard chamber with 8 port manifold
|

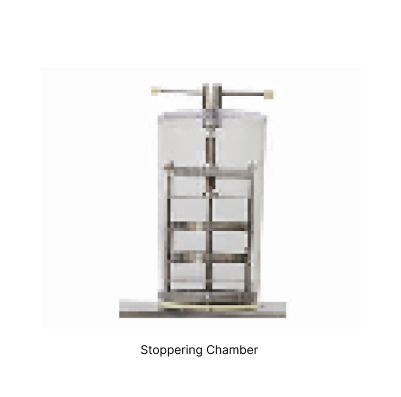

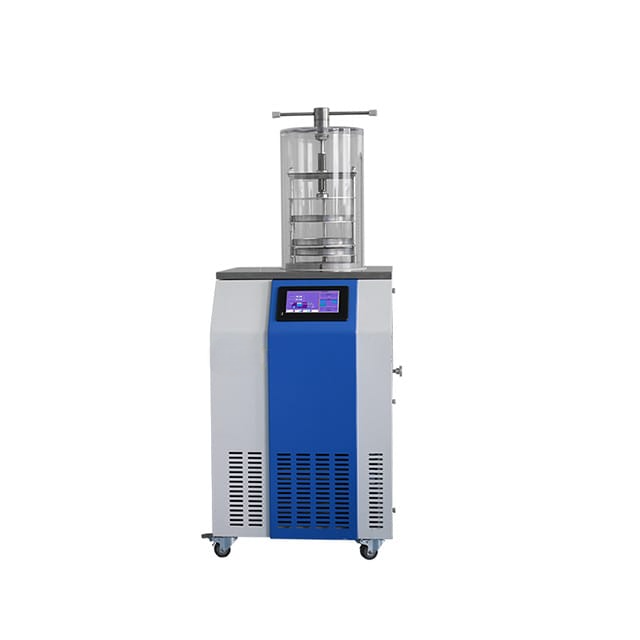

Stoppering Chamber
|

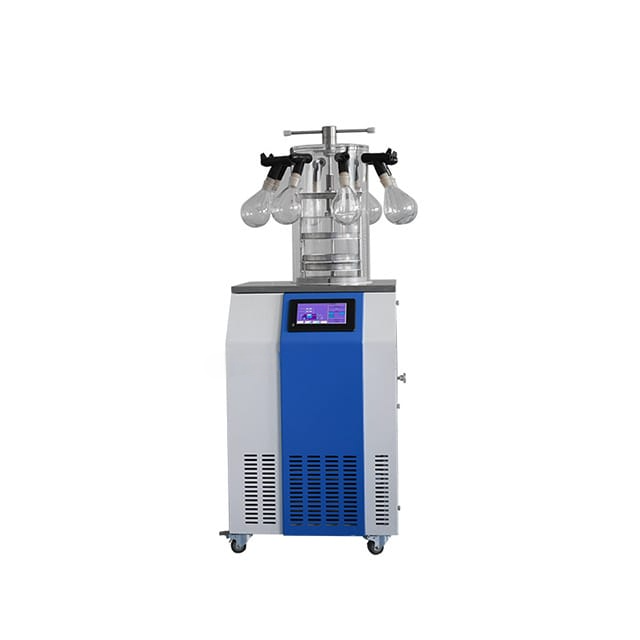

Stoppering chamber with 8 port manifold
|
|
Freeze Drying Area
|
0.12 m2
|
0.09 m2
|
||
|
Tray
|
4 pcs
|
3 pcs
|
||
|
Height Between Trays
|
50mm
|
68mm
|
||
|
Cold Trap Temperature
|
≤-56℃/-80℃
|
|||
|
Cold Trap Capacity
|
9.5L
|
|||
|
Vacuum Degree
|
<10 Pa
|
|||
|
Water Capture Capacity
|
4 Kg/24h
|
|||
|
Tray Size (D X H)
|
Φ200 X 20mm
|
|||
|
Cold Trap Size (Diameter X H)
|
Φ215 X 260mm
|
|||
|
Freeze Drying Time
|
24h
|
|||
|
Loading Capacity/Shelf (Liquid)
|
0.3L
|
|||
|
Total Loading Capacity (Liquid)
|
1.2L
|
0.9L
|
||
|
Drying Chamber Size (D X H)
|
Φ260 X 310mm
|
Φ260 X 450mm
|
Φ260 X 450mm
|
|
|
Total Qty. Of Vial Φ22
|
260
|
195
|
||
|
Total Qty. Of Vial Φ16
|
480
|
360
|
||
|
Total Qty. Of Vial Φ12
|
920
|
690
|
||
|
Refrigerant
|
R600a+R290+R23
|
|||
|
Cooling System
|
Air Cooling
|
|||
|
Standard Accessory
|
Vacuum pump 2L/S, 8m3/h (for all models) Flasks 500mlx8 (only for model SMI-114V-12P/PT)
|
|||
|
Optional Function & Accessory
|
Tray heating (for all models) Cold trap defrosting (for all models) Conical-mouth flask and wide-mouth flask (for SMI-114V-12P/PT) Imported vacuum pump
|
|||
|
Power Consumption
|
-55℃: 0.9KW , -80℃: 1.5KW
|
|||
|
Power Supply
|
220V/50Hz,60Hz (single phase) 110V/60Hz (single phase, only for -55℃)
|
|||
|
External Size (W X D X H)
|
460 X 620 X 920/1370mm
|
|||
|
Packing Size (W X D X H) And Gross Weight
|
||||
|
Main Body
|
1000X700X570mm (90Kg)
|
1000X700X570mm (90Kg)
|
||
|
Vacuum Pump
|
590X380X220 (22Kg)
|
590X380X220mm (22Kg)
|
||
|
Drying Chamber
|
300X300X350mm (12Kg)
|
350X350X570mm (12Kg)
|
||
|
Model
|
SMI-114V-18S
|
SMI-114V-18P
|
SMI-114V-18T
|
SMI-114V-18PT
|
|
|---|---|---|---|---|---|
|
Type
|
Standard Chamber
|
Standard chamber with 8 port manifold
|
Stoppering Chamber
|
Stoppering chamber with 8 port manifold
|
|
|
Freeze Drying Area
|
0.18 m2
|
0.12m2
|
|||
|
Tray
|
4 pcs
|
3 pcs
|
|||
|
Height Between Trays
|
80mm
|
70mm
|
|||
|
Cold Trap Temperature
|
≤-56℃
|
≤-56℃/-80℃
|
|||
|
Cold Trap Capacity
|
26L
|
22L
|
|||
|
Vacuum Degree
|
<10 Pa
|
||||
|
Water Capture Capacity
|
6 Kg/24h
|
||||
|
Tray Size (D X H)
|
Φ240 X 20mm
|
Φ240 X 18mm
|
Φ200 X 18mm
|
||
|
Cold Trap Size (Diameter X H)
|
Φ296 X 390mm
|
Φ270 X 420mm
|
|||
|
Freeze Drying Time
|
24h
|
||||
|
Loading Capacity/Shelf (Liquid)
|
0.3L
|
||||
|
Total Loading Capacity (Liquid)
|
1.8L
|
0.9L
|
|||
|
Drying Chamber Size (D X H)
|
Φ300X451mm
|
Φ300X465mm
|
Φ300X465mm
|
||
|
Total Qty. Of Vial Φ22
|
360
|
270
|
|||
|
Total Qty. Of Vial Φ16
|
740
|
555
|
|||
|
Total Qty. Of Vial Φ12
|
1320
|
990
|
|||
|
Refrigerant
|
R600a+R290+R23
|
R134a+R22
|
|||
|
Cooling System
|
Air Cooling
|
||||
|
Standard Accessory
|
Vacuum pump 4L/S, 14.4m3/h (for all models) Flasks 100mlx2, 250mlx2, 500mlx2, 1000mlx2 (only for model SMI-114V-18P/PT)
|
||||
|
Optional Function & Accessory
|
-
|
Tray heating (for all models) Cold trap defrosting (for all models) Conical-mouth flask and wide-mouth flask (for BK-FD18P/PT) Import vacuum pump
|
|||
|
Power Consumption
|
-55℃: 1.7kW
|
-55℃: 1.8kW -80℃: 2.1.kW
|
|||
|
Power Supply
|
220V/50Hz,60Hz (single phase) 110V/60Hz (single phase)
|
||||
|
External Size (W X D X H)
|
560*710*950/1400mm
|
630*580*970/1430mm
|
810*580*950/1410mm
|
||
|
Packing Size (W X D X H) And Gross Weight
|
|||||
|
Main Body
|
776*652*1170mm (112Kg)
|
780*720*1200mm (165Kg)
|
|||
|
Vacuum Pump
|
650*710*650mm (41Kg)
|
640*220*410 (25Kg)
|
|||
|
Drying Chamber
|
650*710*650mm (41Kg)
|
400*420*640mm (18Kg)
|
|||
