Under Counter ULT Deep Freezer -20~-40℃ SMI-165UUDF-89

Home ≫Ultra Low Temp.>Under Counter ULT Deep Freezer -20~-40℃ SMI-165UUDF-89

Under Counter ULT Deep Freezer -20~-40℃ SMI-165UUDF-89

CLICK TO SCAN

  • Small volume
  • High-efficiency refrigeration system
  • Reliable security system
  • Human-oriented design
  • Pharmaceutical grade undercounter freezer



Overview

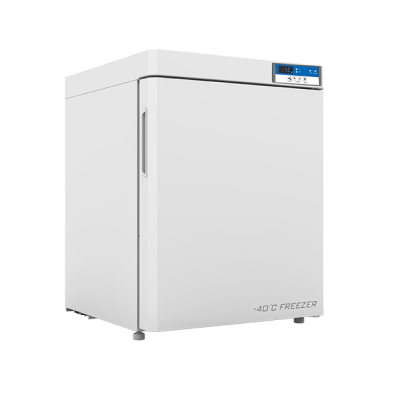

Jindal Under Counter ULT Deep Freezer -20~-40℃ SMI-165UUDF-89 is a high quality medicine/laboratory freezer with stable performance. It is equipped with an internationally famous refrigeration system, which is high-efficiency and environmentally friendly. And the condenser is designed perfectly for temperature stability and refrigeration system reliability. This low temp freezer is designed for laboratory and medical grade and best for storage of special materials, vaccines and biological products.

High-efficiency Refrigeration System

The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise. The condenser installed on the bottom ensures temperature stability and system reliability

High-precision Temperature Control

The high-precision computerized temperature control system ensures an adjustable temperature within a range from -20 to -40℃ inside the cabinet.

Reliable Security System

The well-developed audible & visual alarm system (sensor failure alarm, high temperature/low temperature alarm,door ajar etc.) makes it safer for storage. The turn-on delay and stopping interval protection function can ensure reliability in running;

Human-oriented Design

The invisible door handle can prevent damage during transportation and save space.

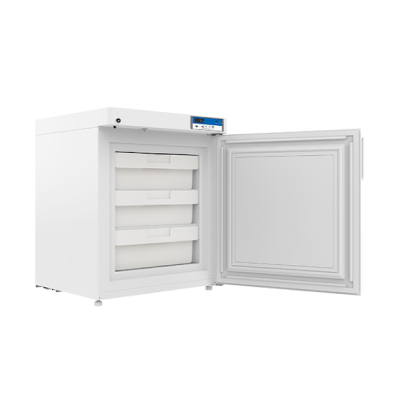

The 3 drawers are convenient for separate storage of different types of things and can prevent cross-influence among various things.

Previous
Next
Enquire Now

Features

  • Small volume undercounter ultra low freezer occupies small space.
  • The system has the function of digital temperature display and temperature inside the cabinet can be set within range from -20℃ to -40℃ The high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control.
  • The compressor supplied by an internationally famous brand and EBM fan is energy-saving and environmentally friendly.
  • The refrigerating circuit with proprietary intellectual property rights ensures high efficiency and stability.
  • 3 drawers can be used for storage based on classification.
  • The two-layer thermal insulating foamed door can prevent loss of refrigerating capacity in an effective way.
  • The cabinet is made from CFC-free polyurethane material, which can improve its heat insulating performance to a large extent.
  • The well-developed audible & visual alarm system makes it safer for storage.
  • The turn-on delay and stopping interval protection function can ensure reliability in running.
  • The keyboard lock function can prevent any adjustment of operating parameters without permission.
  • The door is equipped with a lock, improving security of sample storage.

Technical Data:

Model
SMI-165UUDF-89
Cabinet
Upright
Capacity(L）
89
Internal Size(W*D*H)mm
500*485*532
External Size(W*D*H)mm
700*669*854
Package Size(W*D*H)mm
765*735*935
NW(Kg)
54/68
Performance
Temperature Range
-20～-40℃
Ambient Temperature
16-32℃
Cooling Performance
-40℃
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
1pc
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
R290
Insulation Thickness(mm)
L/R:100, B:100
Construction
External Material
PCM
Inner Material
Aluminum plate with spraying
Coated hanging basket
3(ABS)
Door lock with key
Yes
Backup Battery
Yes
Access Port
1pc. Ø 25 mm
Data logging/Interval/Memory capacity
USB/Record every 10 minutes/1000,000data
Casters
2+(2 leveling feet)
Alarm
Temperature
High/Low temperature
Electrical
Power failure, Low battery
System
Sensor Failure
Accessories
Standard
RS485, Remote alarm contact

Product Brochure

Product Brochure Link here
