Home ≫Ultra Low Temp.>Under Counter Deep Freezer -10°C ~-25°C SMI-165UDF-89
CLICK TO SCAN

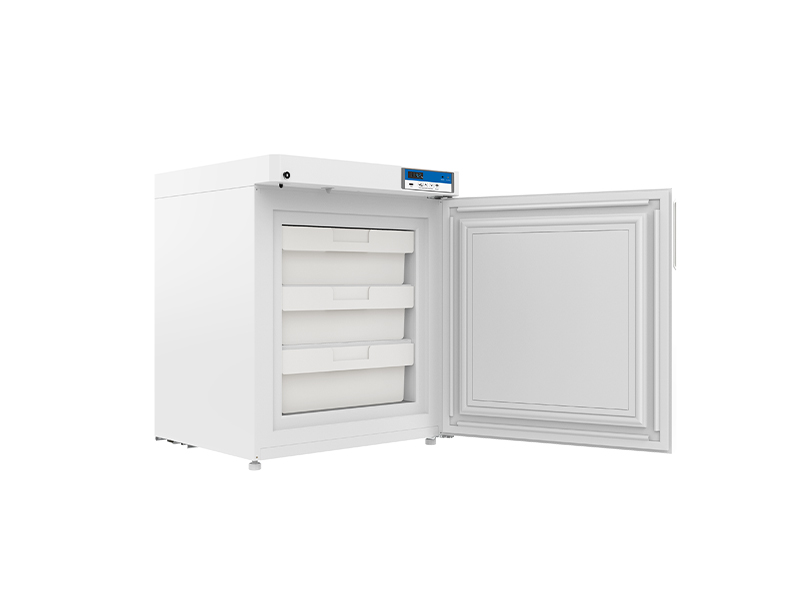

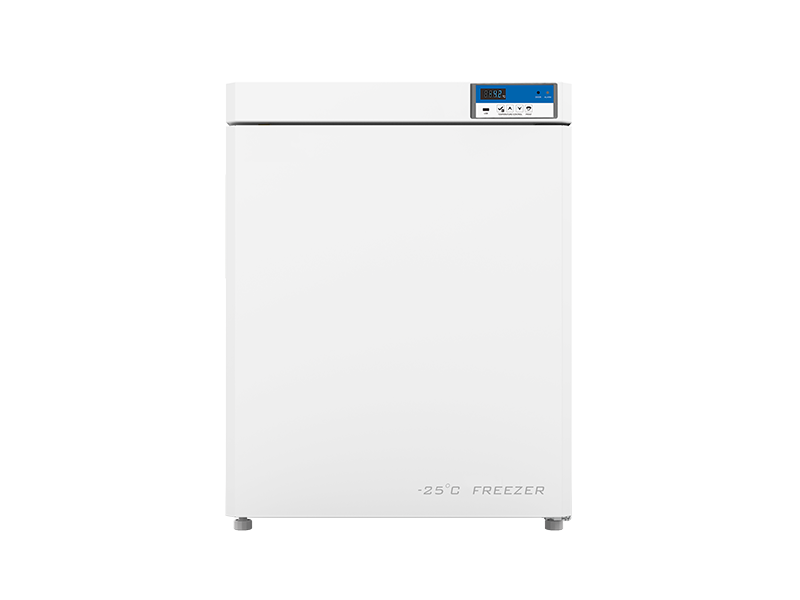

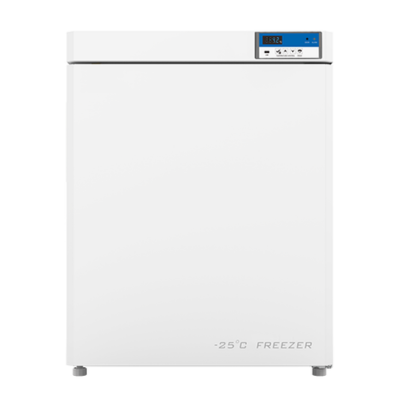

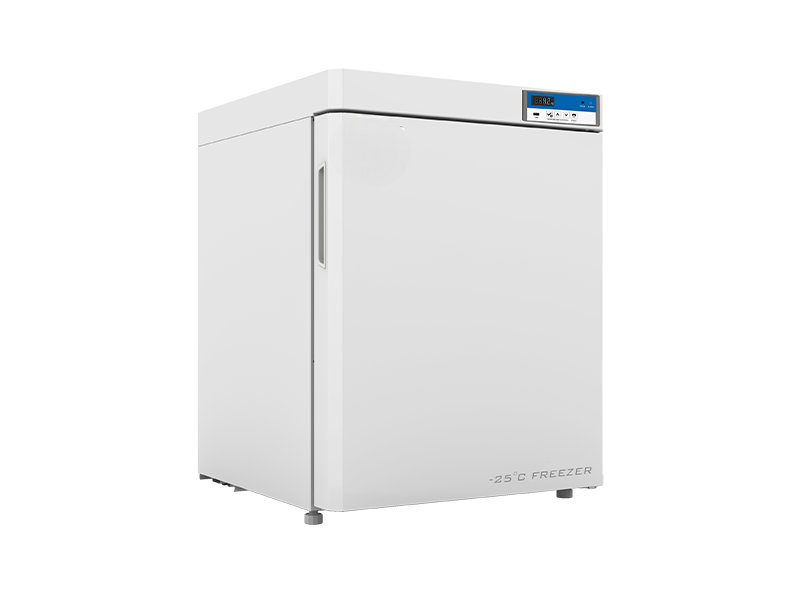

Jindal Under Counter Deep Freezer -10°C ~-25°C SMI-165UDF-89 is a high quality laboratory / medical freezer with stable performance. This mini freezer is designed in specific volume for easy storage and placed on the desktop and under the counter. The small freezer is equipped with a polyurethane foam door enabling perfect thermal insulation effects. And it provides multiple audible and visible alarm systems to ensure more safe storage. The high-precision compromised temperature control system allows you to set and monitor the temperature in the cabinet.
Brand New Appearance with High-quality Product
The polyurethane foam door of this low temperature freezer has great thermal insulation performance and has the ability to ensure constant temperature in the cabinet.
Multiple Alarms Ensure Safety of Storage
The low temp freezer has multiple audible & visual alarm functions, such as high temperature/low temperature alarm, door ajar alarm, sensor failure alarm, etc. and can guarantee security of samples in a comprehensive way.
High-precision Temperature Control
The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet. And the high-definition digital temperature display can display the temperature precisely in 0.1 ℃.
Mappings
Image in the gallery
Scope of Application
Undercounter biomedical freezer Suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagents, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, laboratories in colleges & universities, the frozen food industry and catering industry, etc.
|
Model
|
SMI-165UDF-89
|
|---|---|
|
Cabinet
|
Chest
|
|
Capacity(L）
|
89
|
|
Internal Size(W*D*H)mm
|
500*485*532
|
|
External Size(W*D*H)mm
|
700*669*854
|
|
Package Size(W*D*H)mm
|
765*732*935
|
|
NW(Kg)
|
54/67
|
|
Performance
|
|
|
Temperature Range
|
-10～-25℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-25℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital Display
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
1pc
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
R600a
|
|
Insulation Thickness(mm)
|
100
|
|
Construction
|
|
|
External Material
|
PCM
|
|
Inner Material
|
Aluminum plate with spraying
|
|
Drawers
|
3(ABS)
|
|
Access port
|
1pc. Ø 25 mm
|
|
Door lock with key
|
Yes
|
|
Backup Battery
|
Yes
|
|
Casters
|
2+(2 leveling feet )
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature, High ambient temperature
|
|
Electrical
|
Power failure
|
|
System
|
Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure
|
|
Accessories
|
|
|
Standard
|
RS485,Remote alarm contact
|
Product Brochure Link here
