Home ≫Ultra Low Temp.>Ultra Low Temperature Deep Freezer -40°C SMI-165ULDF-269
CLICK TO SCAN

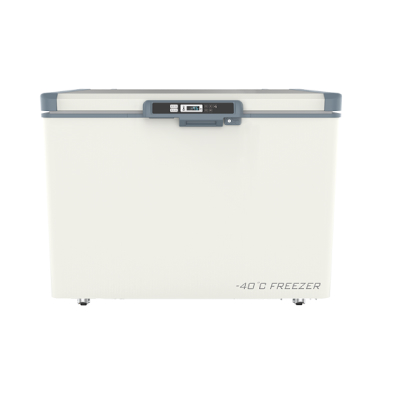

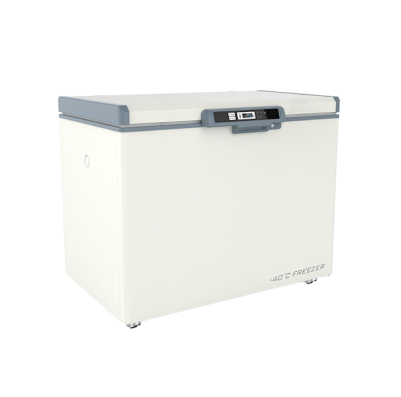

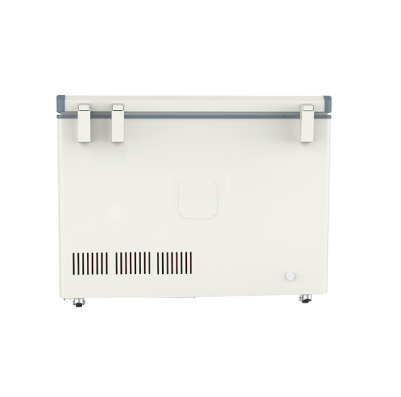

Jindal Ultra Low Temperature Deep Freezer -40°C SMI-165ULDF-269 is equipped with a high-quality refrigeration system for fast cooling. The high-precision temperature control system can display various parameters simultaneously, including power voltage, temperature inside the cabinet and environmental temperature, which can indicate the operation status clearly. And you are free to set the temperature inside the cabinet in the range of -20°C to -40°C. The two-layer heat insulation foamed door with airbag-typed outer steel can prevent loss of refrigerating capacity in an effective way. The liner is made of stainless steel, which is safe for medical use.
High-efficiency Refrigeration system
Freon-free refrigerant, compressor supplied by an internationally famous brand and EBM fan can guarantee fast cooling and are energy-saving and environmentally friendly. Refrigerating circuit with proprietary intellectual property rights ensures high efficiency and stability.
Six sides of the cabinet are made from high-performance vacuum insulation material, improving thermal insulation performance to a large extent.
High-precision Temperature control system
High-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control.
Human-oriented Design
High-quality steel plate structure with phosphate coating, stainless steel liner and low noise design can create a comfortable environment.
Jindal Ultra Low Temperature Deep Freezer suitable for use in scientific research, cryogenic test on special materials,low temperature resistance test on biological materials, vaccines, biological products and military products, etc. Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.
|
Model
|
DW-FW270
|
|---|---|
|
Cabinet
|
Chest
|
|
Capacity(L）
|
269
|
|
Internal Size(W*D*H)mm
|
1019*465*651
|
|
External Size(W*D*H)mm
|
1245*775*929
|
|
Package Size(W*D*H)mm
|
1332*815*975
|
|
NW(Kg)
|
77/125(wood packing)
|
|
Performance
|
|
|
Temperature Range
|
-20～-40℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-40℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital Display
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
1pc
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
R290
|
|
Insulation Thickness(mm)
|
L/R:110,B:110
|
|
Construction
|
|
|
External Material
|
Cold rolled steel
|
|
Inner Material
|
Stainless Steel
|
|
Coated hanging basket
|
1
|
|
Foaming Lid
|
Optional
|
|
Door lock with key
|
Yes
|
|
Access Port
|
1pc. Ø 25 mm
|
|
Backup Battery
|
Yes
|
|
Casters
|
4
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature
|
|
Electrical
|
Power failure, Low battery
|
|
System
|
Sensor Failure
|
Product Brochure Link here
