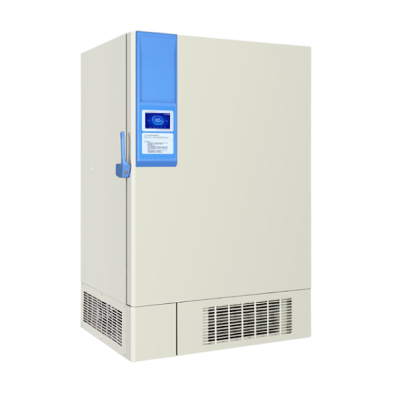

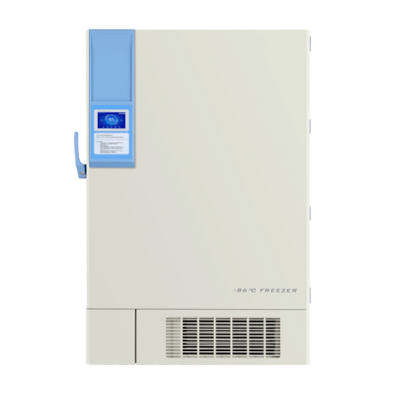

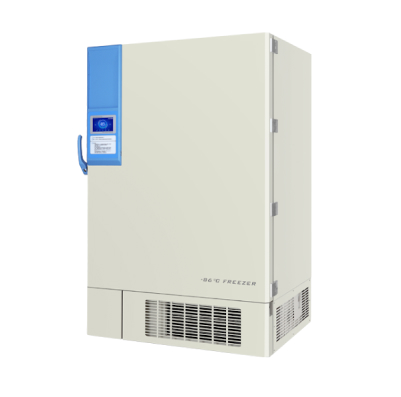

Jindal ULT Vaccine Freezer -86°C SMI-165ULT-HC-1006 brings super updates in ultra low temperature freezer series. The new structure of the deep freezer for laboratory and medical comes with 2 independent inner doors. The optimized foaming insulation inside the doors provides better temperature performance. This ultra low freezer/ lab freezer is specially designed to meet the demands for long-term and safe storage of the high-valued medical and laboratory materials.
High configuration control system
The ultra low freezer has a new look 7 inches LED touch screen display, giving you a more user-friendly and convenient interface. And it makes sure the temperature displays accurately in 0.1℃. And you are free to set the inside temperature from -40°C~-86°C.
Safety alarm system
This ultra cold freezer provides 10 types of audible and visible alarms. The safety alarm system includes high or low temperature alarm,, door ajar alarm, power failure alarm, Condenser overheating alarm, and system failure alarm.
Exquisite structure design

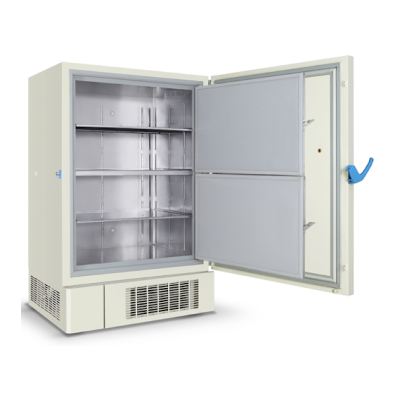

Jindal SMI-165ULT-HC-1006 medical and laboratory ultra low freezer is designed with 2 independent inner doors with foaming insulation, which can ensure better temperature performance. The external material is made of high quality structural steel, while the inner material is made of stainless steel. And the storage structure is designed with 3 high strength SUS304 shelves, which is resistant to corrosion and easy to clean.
Scope of Application
This HC ultra low temperature freezer can be used as laboratory freezer, ultra low medical freezer and deep freezer , suitable for application in hospitals, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, and more.
|
Model
|
SMI-165ULT-HC-1006
|
|---|---|
|
Cabinet Type
|
Upright
|
|
Capacity(L）
|
1006
|
|
Internal Size(W*D*H)mm
|
1022*696*1378
|
|
External Size(W*D*H)mm
|
1362*1025*1994
|
|
Package Size(W*D*H)mm
|
1473*1155*2176
|
|
NW(Kg)
|
426/510(wood packing)
|
|
Performance
|
|
|
Temperature Range
|
-40～-86℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-86℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Touch Screen
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
2pcs
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
HC
|
|
Insulation Thickness(mm)
|
130
|
|
Construction
|
|
|
External Material
|
Cold rolled steel
|
|
Inner Material
|
Stainless Steel
|
|
Shelves
|
3(stainless steel)
|
|
External Lock
|
Yes
|
|
Access Port
|
3pcs. Ø 25 mm
|
|
Door lock with key
|
Yes
|
|
Backup Battery
|
Yes
|
|
Data logging/Interval/Memory capacity
|
USB/Record every 5 minute / 10 years
|
|
Casters
|
4+(2 leveling feet)
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature,High ambient temperature
|
|
Electrical
|
Power failure
|
|
System
|
Sensor failure,Main board communication error,Condenser overheating,Door ajar
|
|
Accessory
|
|
|
Standard
|
RS485, Remote alarm contact
|
|
Options
|
Chart recorder, CO2 backup system
|
