Table Top Freeze Dryer SMI-114TT

CLICK TO SCAN

Description

The Jindal Vacuum freeze-drying technology, also known as sublimation drying, involves first freezing a sample that contains water and then sublimating the moisture under vacuum conditions. This process largely preserves the sample’s original biological, chemical, and physical properties, making it suitable for long-term storage. Upon rehydration, the sample can be restored to its pre-freeze-dried state, retaining its original biochemical characteristics. As a result, freeze-drying technology is widely used in the food, chemical, and biopharmaceutical industries, among others.

Features

  • Compressor – Energy-saving, highly efficient, low noise, and long service life.

  • Vacuum pump – Compact, fast pumping speed, low noise, and capable of achieving a high vacuum level.

  • Integrated design – Compact structure and easy to operate.

  • Environmentally friendly refrigerant – Ozone Depletion Potential (ODP) = 0.

  • Defrosting function – Safe and reliable operation.

  • Cold trap and operating table – Made of stainless steel, corrosion-resistant, and easy to clean.

  • Drying chamber cover – Made of aviation-grade acrylic, high-strength, and non-adhesive.

  • Large cold trap opening – Includes a pre-freezing function, eliminating the need for a low-temperature refrigerator.

  • Professional gas diversion technology – Ensures high freeze-drying efficiency and uniform ice capture.

Technical Data:

Model

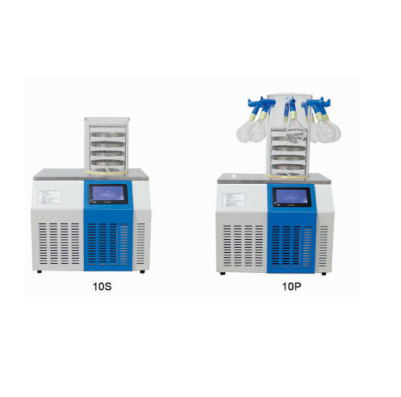

SMI-114TT-10S

SMI-114TT-10P

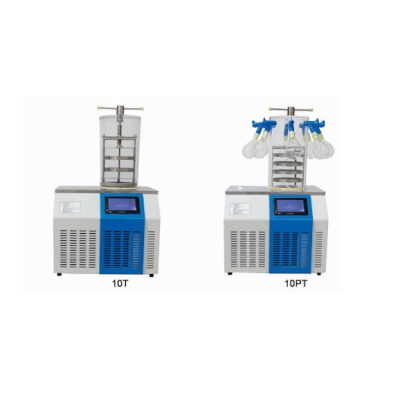

SMI-114TT-10T

SMI-114TT-10PT

Type

Standard chamber

Standard chamber with 8 port manifold

Stoppering chamber

Stoppering chamber with 8 port manifold

Freeze Drying Area

0.12m²

0.08m²

Tray

4pcs

3pcs

Height Between Trays

50mm

/

Cold Trap Temperature

≤-60℃(No load)(-80℃ optional)

Cold Trap Capacity

6L

Cold Trap Size (Diameter*H)

Φ219*140mm

Vacuum Degree

≤5Pa

Water Capture Capacity

3~4L/24h

Tray Size (D*H)

φ200*20mm

φ180*20mm

Freeze Drying Time

36h

Loading Capacity/Shelf (Liquid)

1.2L

0.8L

Total Loading Capacity (Liquid) 2.4L 1.6L
Drying Chamber Size (Diameter*H)

Φ260*420mm

φ260*465mm

Total Qty. of Vial φ22

/

/

147

147

Total Qty. of Vial φ16

/

/

297

297

Total Qty. of Vial φ12

/

/

492

492

Refrigerant

-60℃: R600a, R23

-80℃: R404a, R23

Cooling System

Standard: Air cooling

Power Supply

Standard: 220V, 50Hz

Optional: 220V, 60Hz

Power Consumption

1300W

Standard Accessory

Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)

Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8pcs(only for model SMI-114TT-10P/PT), USB port

Optional Function & Accessory

Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic water discharge and other customization(for all models) 600ml/1200ml Wide-mouth flask(for SMI-114TT-10P/PT)

External Size (W X D X H) mm

640 X 610 X 550


Package Size(W X D X H)mm

Main body

735 X 720 X 760

Accessory

720 X 605 X 560


Gross Weight(kg)

Main body

-60℃: 80

-80℃: 98

Accessory

45

49

54

56
