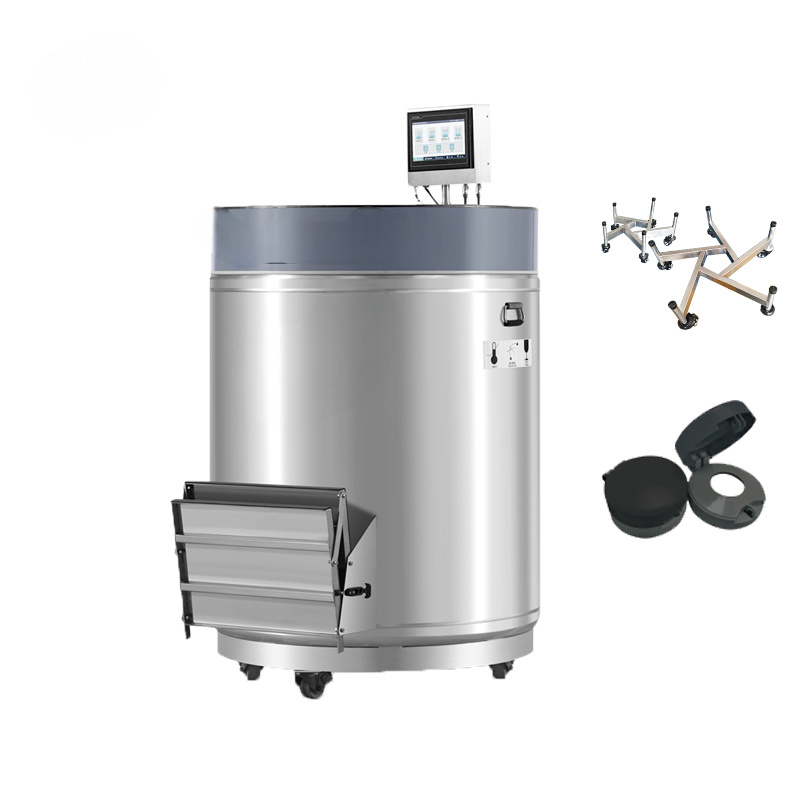

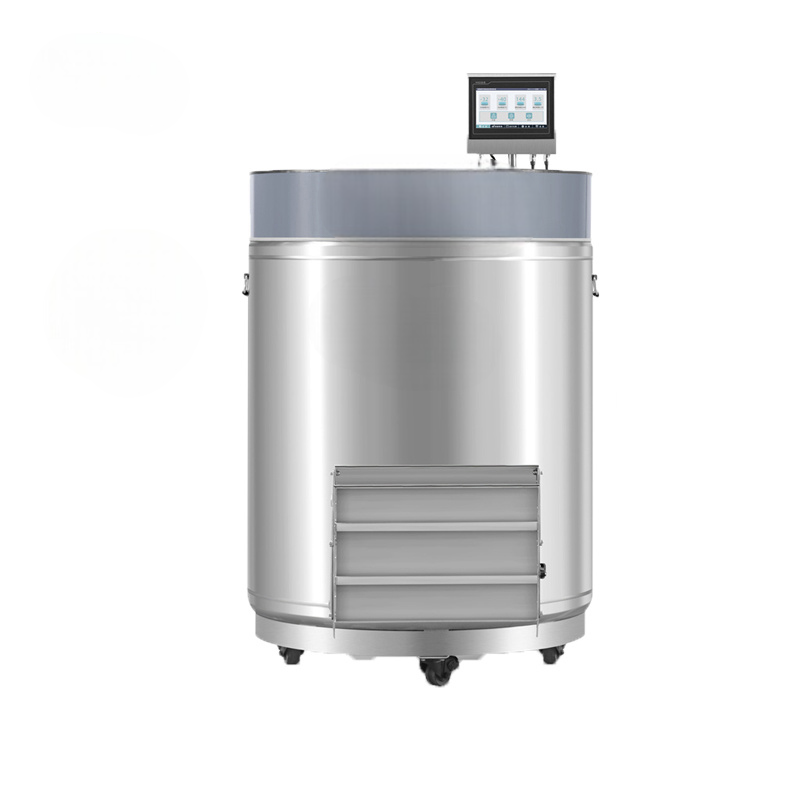

Jindal SS Vapor Phase LN2 Tanks offer users a safer and smarter ultra-low temperature liquid nitrogen storage system with a capacity of 15600-9450 2ml tubes and large off-bore open-ended design for easy storage of samples. Compatible with both gas phase and liquid phase storage modes, the system ensures uniform and stable temperatures throughout the entire tank, even when the lid is open for long periods of time. The temperature difference between the entire storage area and the top of the freezing rack can be as low as -190℃.
Capacity: 370L, 460L, 800L, 1000L, 1800L
Type: Compatible With Vapor Phase And Liquid Phase
Material: Stainless Steel
Control System: 10-Inch LCD Touch Screen
Compatible with both gas and liquid phase storage modes, with a wide range of volumes available.Compatible with both manual and automatic refill control modes for a more flexible operating experience.
Advanced temperature and level monitoring and alarm system for network monitoring, hot gas bypass design reduces the effect of temperature fluctuations inside the tank to ensure sample safety.
Support data backup and saving, exportable for printing, one-touch defogging for easy sample finding and retrieval.
The intelligent monitoring terminal of the liquid nitrogen tank has data storage function; supports compatibility with various mainstream communication protocols; adopts a 10-inch or 7-inch LCD intelligent touch screen to visually display the operating status and parameters of liquid nitrogen tank in the form of a chart.
Wired/wireless/WIFI/4G communication options, remote alarm function by phone / SMS / WeChat / email
Real-time display of temperature and LN2 level data, high precision platinum resistance temperature sensors .
Automatic recording of operating data, local data is stored permanently and can be exported via USB .
|
Model No.
|
SMI-LN2C-003-01
|
SMI-LN2C-003-02
|
SMI-LN2C-003-03
|
SMI-LN2C-003-04
|
SMI-LN2C-003-05
|
SMI-LN2C-003-06
|
|---|---|---|---|---|---|---|
|
MAXIMUM STORAGE CAPACITY
|
||||||
|
1.2& 2 ml vials
|
15600
|
19500
|
39200
|
42000
|
55500
|
94500
|
|
No. of Rack (100 per box)
|
12
|
12
|
24
|
26
|
32
|
60
|
|
No. of Rack (25 per box)
|
4
|
4
|
16
|
16
|
20
|
12
|
|
Layers of each Rack
|
12
|
15
|
14
|
14
|
15
|
15
|
|
PERFORMANCE
|
||||||
|
LN2 Capacity (L)
|
370
|
460
|
797
|
800
|
1000
|
1800
|
|
LN2 under the tray (L)
|
55
|
55
|
133
|
133
|
200
|
295
|
|
Static LN2 retention days(vapor)
|
11
|
11
|
20
|
20
|
25
|
30
|
|
Static LN2 retention days(liquid)
|
74
|
92
|
118
|
118
|
125
|
177
|
|
PARAMETERS
|
||||||
|
Opening Dia.(mm)
|
320
|
320
|
445
|
445
|
500
|
635
|
|
Internal Height(mm)
|
680
|
875
|
780
|
780
|
870
|
870
|
|
Internal Dia.(mm)
|
730
|
730
|
980
|
980
|
1130
|
1390
|
|
Overall Height(mm)
|
1400
|
1450
|
1605
|
1605
|
1680
|
1685
|
|
Rack Lift Height(mm)
|
920
|
1118
|
1052
|
1052
|
1118
|
1118
|
|
Door Width Requirement(mm)
|
815
|
815
|
1090
|
1090
|
1300
|
1565
|
|
Empty Weight(Kg)
|
258
|
283
|
355
|
358
|
580
|
805
|
|
Gross Weight(Kg)
|
559
|
657
|
1006
|
1009
|
743
|
2207
|
|
Package Size(mm)
|
Package Size(mm)
|
98*98*146
|
98*98*165
|
125*125*140
|
-
|
-
|
|
Blood bag/layers of blood bag racks/ No. of blood bag racks
|
||||||
|
791OS/U (25ml)
|
1104/6/184
|
1472/8/184
|
3168/8/396
|
2548/8/364
|
4384/8/548
|
4R9951 (50ml)
|
|
4R9951 (50ml)
|
768/6/132
|
1056/8/132
|
1888/8/236
|
1876/8/268
|
2656/8/332
|
3920/8/490
|
|
4R9953 (250ml)
|
400/4/100
|
500/5/100
|
920/5/184
|
1020/5/204
|
1320/5/264
|
2010/5/402
|
|
4R9955 (500ml)
|
328/4/82
|
410/5/82
|
680/5/136
|
791/5/158
|
1000/5/200
|
1550/5/310
|
|
DF200 (200ml)
|
236/4/59
|
295/5/59
|
496/4/124
|
488/4/122
|
780/5/156
|
1230/5/246
|
|
DF200 (700ml)
|
-
|
-
|
256/4/64
|
264/4/66
|
440/5/88
|
680/5/136
|
