Home ≫Ultra Low Temp.>Small ULT Freezer -86°C SMI-165ESF-HC-48
CLICK TO SCAN

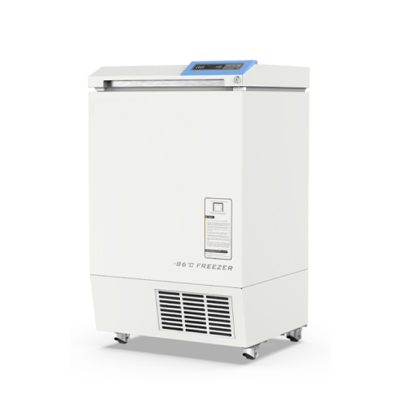

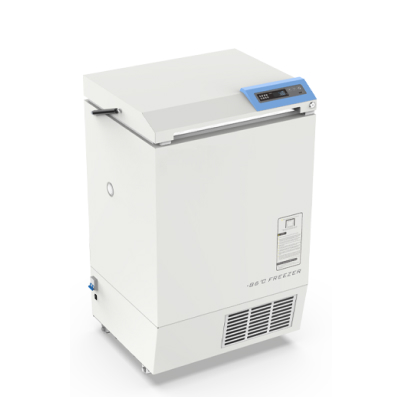

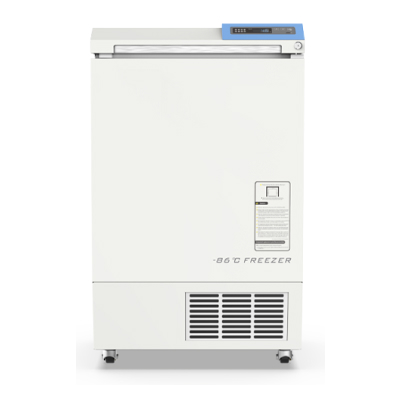

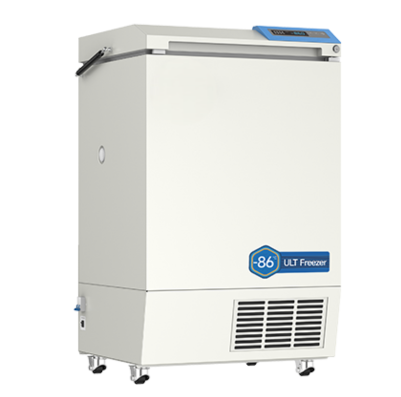

Jindal Small ULT Freezer -86°C SMI-165ESF-HC-48 comes with a little body for great use. It is perfectly designed for storage of low temperature scientific experiments, plasma, tunny, biomaterial, and other biological products. This mini deep freezer can be applied to hospitals, blood banks, university laboratories, electronic industries, research institutes, military industries, pelagic fishery companies, sanitation and anti-epidemic. With the microprocessor-based temperature controller, you are free to set the temperature range of -40℃~-86°C. The chest type and stainless steel interior material helps it to be cleaned easily. This small ultra low temperature freezer provides you with a secure alarm system with keyboard lock and password access.
Microprocessor-based Temperature Control System
Equipped with microprocessor-based temperature controller system, microprocessor-based temperature controller, -40℃~-86℃ can be set freely
At an ambient temperature of 32℃, you are able to set the lowest temperature as -86℃, and make sure the precision is 0.1℃.
Super Safe Alarm System
This ultra low temperature freezer comes with a lockable door to prevent unauthorized access. It has the feature of delayed start and safe stop interval between restart and being terminated.
The small deep freezer is equipped with an audible and visual alarm system, which includes power failure alarm, high / low temperature alarm, communication failure alarm and high ambient temperature alarm and sensor failure alarm etc.
Human-oriented

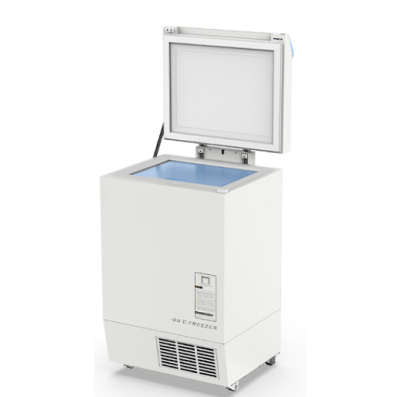

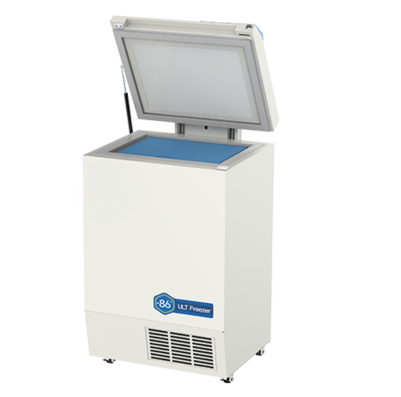

This mini deep freezer is chest type and comes with stainless steel interior material and painted steel panel outer material. And the 4 casters make the freezer can be easily handled.
Its front lockable door provides VIP Plus vacuum insulation, which can well keep the temperature uniformity and avoid overheating.
The foaming design is two-times foaming technology with 110mm foaming insulation to promise better temperature performance.
Scope of Application
Small ultra low deep chest freezer can be used as laboratory freezer, ultra low medical freezer and deep freezer is suitable for application in hospitals, blood bank, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, and more.
|
Model
|
SMI-165ESF-HC-48
|
|---|---|
|
Cabinet Type
|
Chest
|
|
Capacity(L）
|
48
|
|
Internal Size(W*D*H)mm
|
430*305*425
|
|
External Size(W*D*H)mm
|
650*606*1080
|
|
Package Size(W*D*H)mm
|
788*720*1283
|
|
NW(Kg)
|
74/120(wood packing)
|
|
Performance
|
|
|
Temperature Range
|
-40～-86℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-86℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital Display
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
1pc
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
HC
|
|
Insulation Thickness(mm)
|
L/R:110, B:110
|
|
Construction
|
|
|
External Material
|
Cold rolled steel
|
|
Inner Material
|
Stainless Steel
|
|
Shelves
|
1(stainless steel)
|
|
External Lock
|
Optional
|
|
Access Port
|
1pc. Ø 25 mm
|
|
Door lock with key
|
Yes
|
|
Backup Battery
|
Yes
|
|
Data logging/Interval/Memory capacity
|
USB/Record every 10 minutes / 1000,000data
|
|
Casters
|
4
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature,High ambient temperature
|
|
Electrical
|
Power failure, Low battery
|
|
System
|
Sensor failure, Condenser overheating ,Door ajar,Built-in USB datalogger failure, Communication error
|
|
Accessory
|
|
|
Standard
|
RS485,Remote alarm contact
|
|
Options
|
Chart recorder, CO2 backup system
|
Product Brochure Link here
