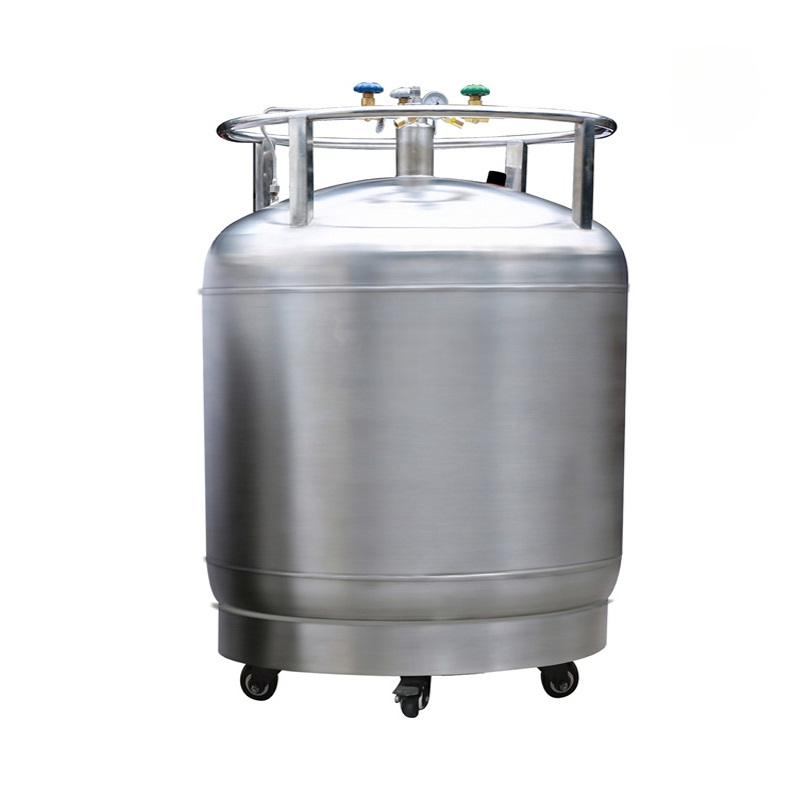

The Self-Pressurized LN2 Tank Series is designed for the transport and storage of low-temperature liquid nitrogen. It features high-quality stainless steel construction, along with precision control components such as valves, gauges, and castors for enhanced portability. These tanks are widely used in industries such as mold making, pharmaceuticals, and aerospace.
The innovative neck design significantly reduces liquid nitrogen evaporation, ensuring efficient long-term storage. Combined with the superior quality of polished stainless steel tank surfaces, this technology sets a new industry standard for performance and durability.

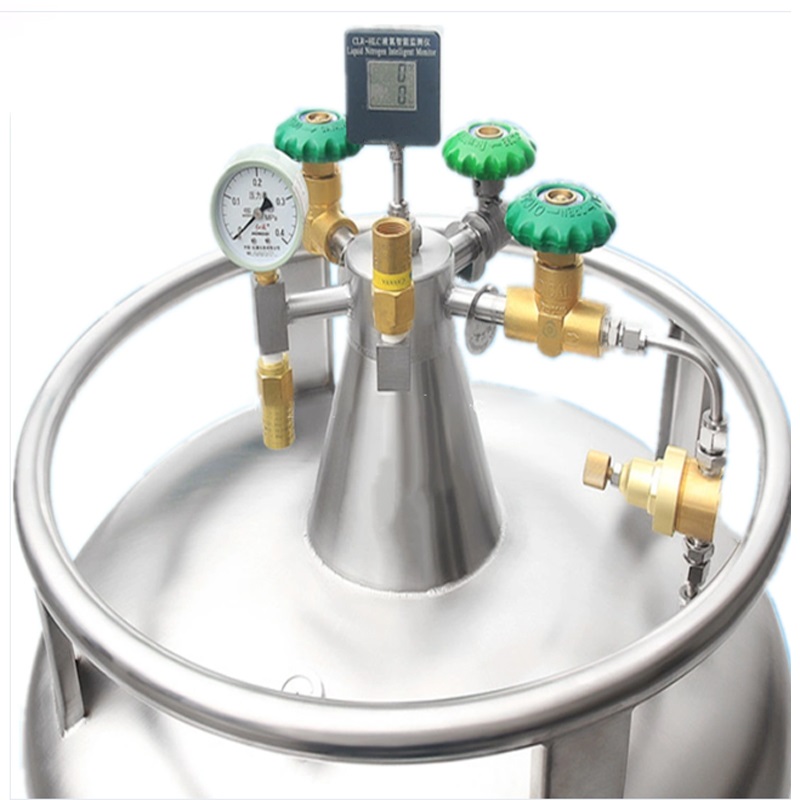

Specialized Neck Configuration
Featuring Smooth Mobility
low-temp pressure control
Intelligent Monitoring System
Effortless mobility is achieved through the integration of universal castors, enabling easy repositioning as needed. Additionally, the system features a robust safety framework that safeguards both equipment and users, ensuring reliable and worry-free operation.

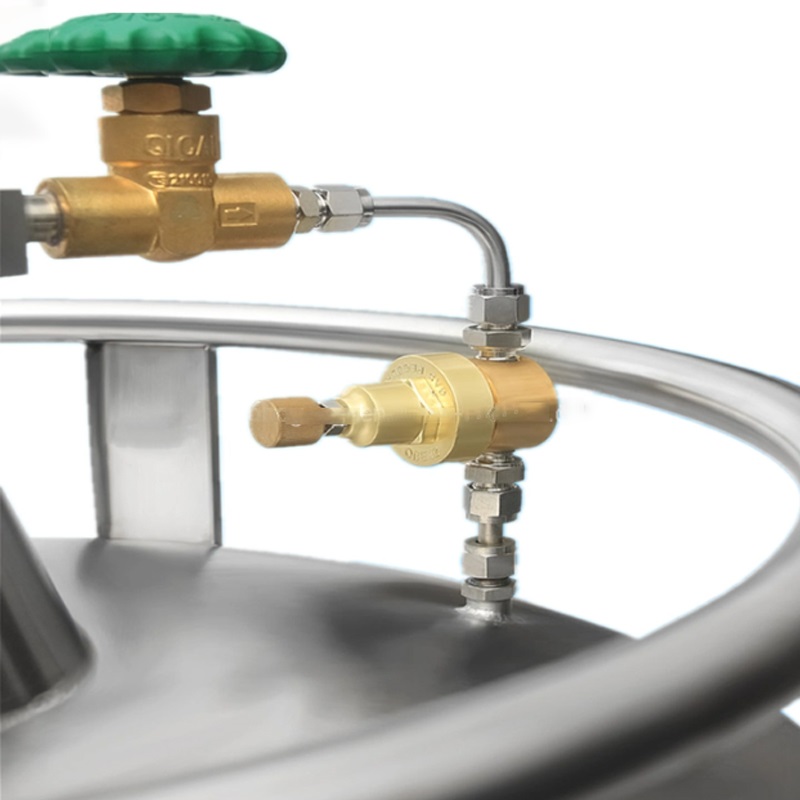

Our commitment to quality and durability is demonstrated by a 5-year vacuum warranty, offering users assurance and peace of mind. Additionally, the integration of a low-temperature pressure stabilization valve enhances system performance, ensuring reliable and stable operation even under extreme conditions.

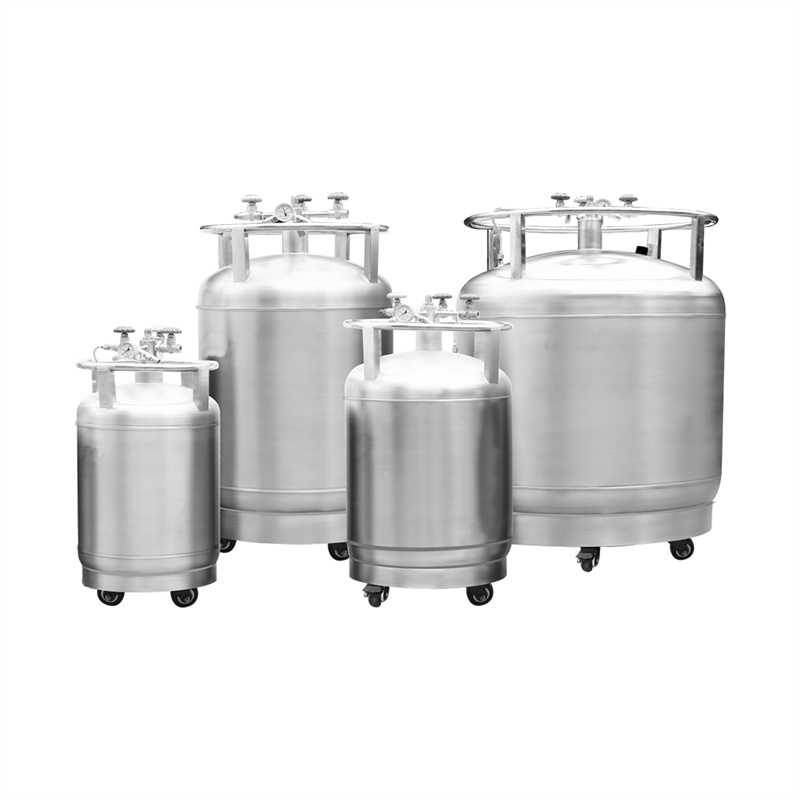

| Model | SMI-LN2T-01 | SMI-LN2T-02 | SMI-LN2T-03 | SMI-LN2T-04 |
| Capacity(L) | 55 | 110 | 220 | 250 |
| Effective Volume(L) | 50 | 100 | 200 | 230 |
| Outer Diameter(mm) | 455 | 556 | 656 | 656 |
| Height(mm) | 960 | 1100 | 1300 | 1400 |
| N.W(kg) | 50 | 68 | 125 | 140 |
| Calibre(mm) | 50 | 50 | 50 | 50 |
| Static LN2 Daily Evaporation Rate(%) | 2 | 1.2 | 1 | 1 |
| Standard Working Pressure(Mpa) | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum Working Pressure(Mpa) | 0.09 | 0.09 | 0.09 | 0.09 |
| Volume of Infusion(L/min) | >5L/min | N5L/Min | >10L/Min | >10L/Min |
| Primary Safety Valve Opening Pressure(Mpa) | 0.099 | 0.099 | 0.099 | 0.099 |
| Sceondary Safety Valve Opening Pressure (Mpa) | 0.15 | 0.15 | 0.15 | 0.15 |
| Rupture Dis Bursting Pressure(Mpa) | – | – | 0.35 | 0.35 |
| Pressure Gauge Indication Range(Mpa) | 0 to 0.25 | 0 to 0.25 | 0 to 0.25 | 0 to 0.25 |
