The Jindal Platelet Agitator Incubator uses state of the art technology to achieve a reliable control over temperature. It is preset at 22° C for platelet application.
The inner chamber of the incubator and the agitator shelves are made of Stainless steel and the outer body is made of Mild Steel duly powder coated. Platelet bags are stored on stainless steel shelves. The chamber is insulated with a high grade high density insulation which provides an extremely efficient thermal barrier ensuring optimum efficiency.
Reliable heavy duty hermetically sealed CFC free refrigeration with a combination of heating provides the required temperature. A forced air type circulation with internal fans ensures uniform temp. within the chamber. The agitator will have sturdy perforated drawers/trays to ensure uniform air circulation through the perforations.
The platelet agitator is used for safe and reliable storage of platelets under a controlled environment.
The exclusive auto stop door switch pauses the agitator when the incubator door is opened. Agitator motion automatically resumes when the door is closed ensuring continuous agitation of platelets.
If the platelet agitator fails to start or stops during use an audible alarm sounds to alert the user. As platelets are living cells and need to be kept in suspension, agitation is gently maintained in conjunction with free gaseous exchange with the outside atmosphere as recommended by the WHO Blood Cold Chain requirements.

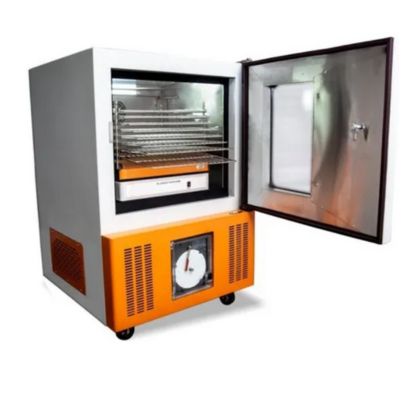

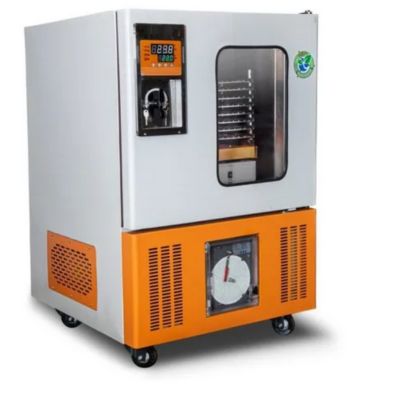

The platelet incubator will have a front glass door for viewing the platelet bags. The door is light in weight and slides into the chamber for keeping and removing the bags from the agitator.
The incubator will have an inbuilt 7 days circular chart recorder. It has a combination of wheels and jack fitted at the bottom for its easy transportation.
A fully automatic dedicated microprocessor helps in monitoring all the functions of the agitator as well as Incubator. The advanced microprocessor monitors the temp. of the chamber in real time. A bright LCD displays all the parameters including date, time, temp., cooling mode, heating mode etc.
RS-232 port for computer interface is a standard feature.
In case of power failure, the inbuilt rechargeable battery backup provides continuous temperature monitoring and recording. The temperature can be set between 15-22°C ±0.5°C with a resolution of 0.1°C. An audio & visual alarm is provided for temperature deviation beyond permitted tolerance with a MUTE Key. A LED display is also provided for easy readout to the user. It has an in-built system to track the motion of Agitator i.e. it will give an audio & visual alarm on the stoppage of the agitator. User- friendly software and soft touch keys are easy to use.
Capacity of Blood Bags
The instrument is designed to operate on 220V Single Phase AC Supply (Model with 110V also available).
