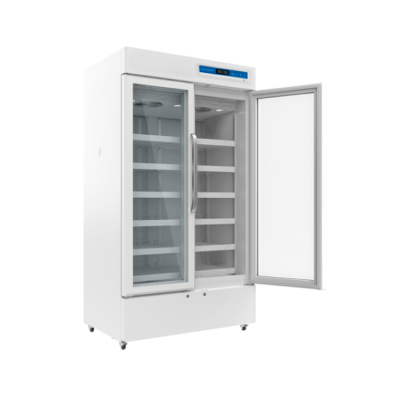

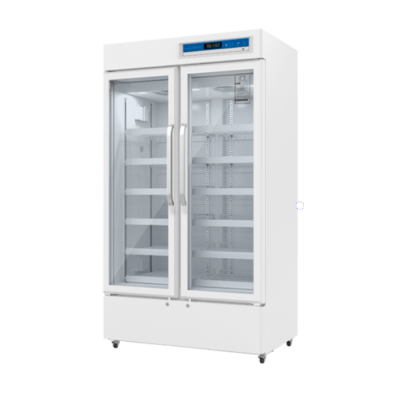

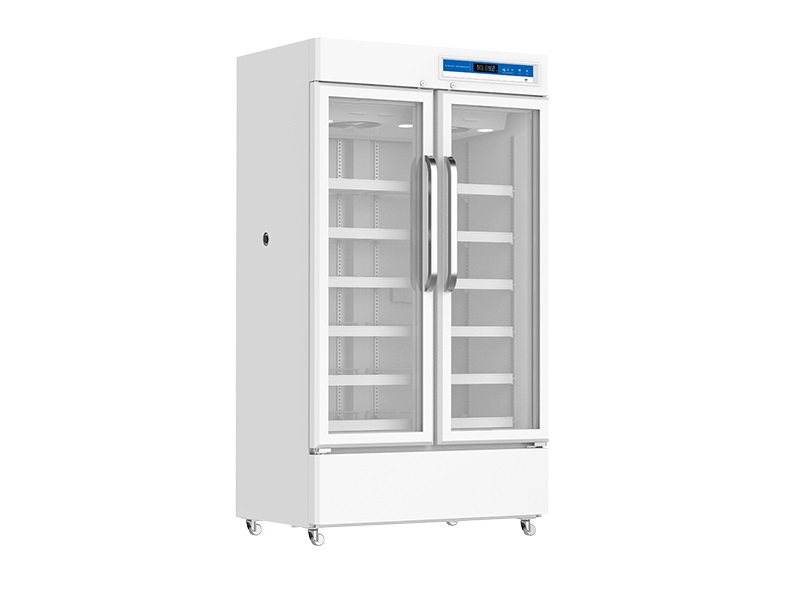

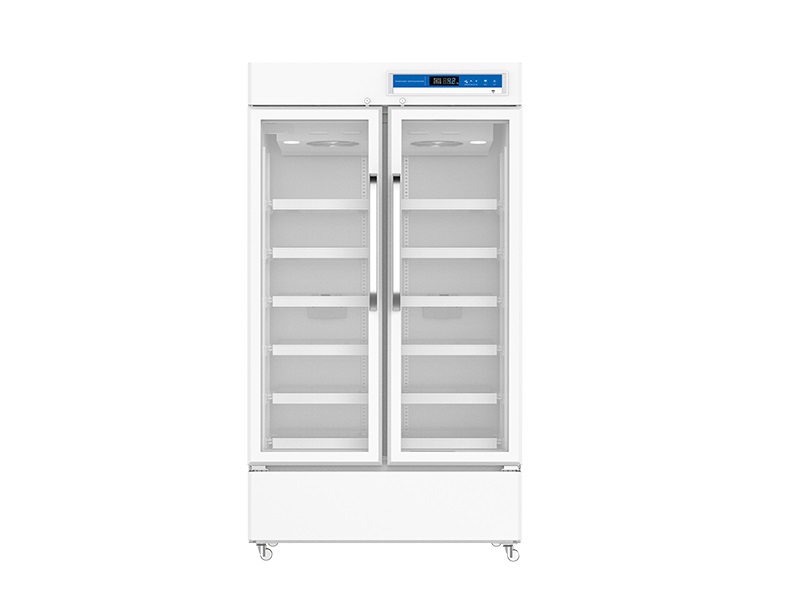

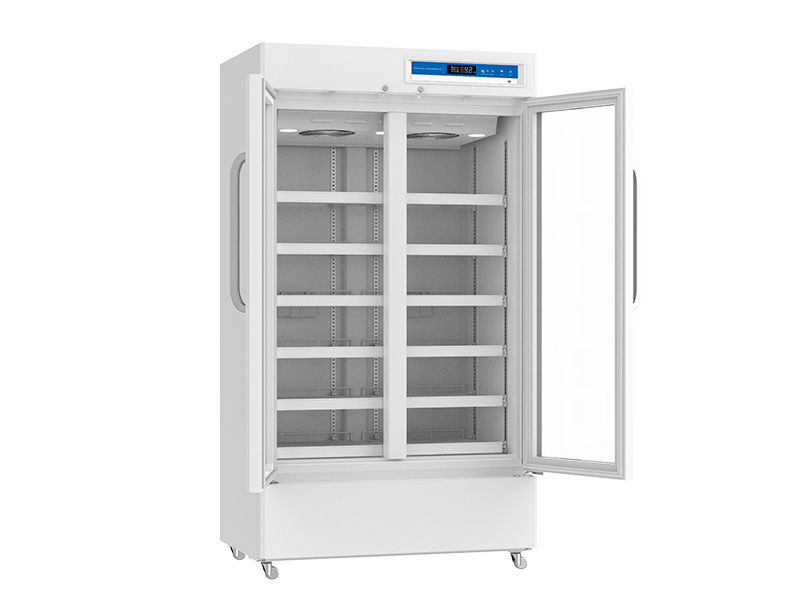

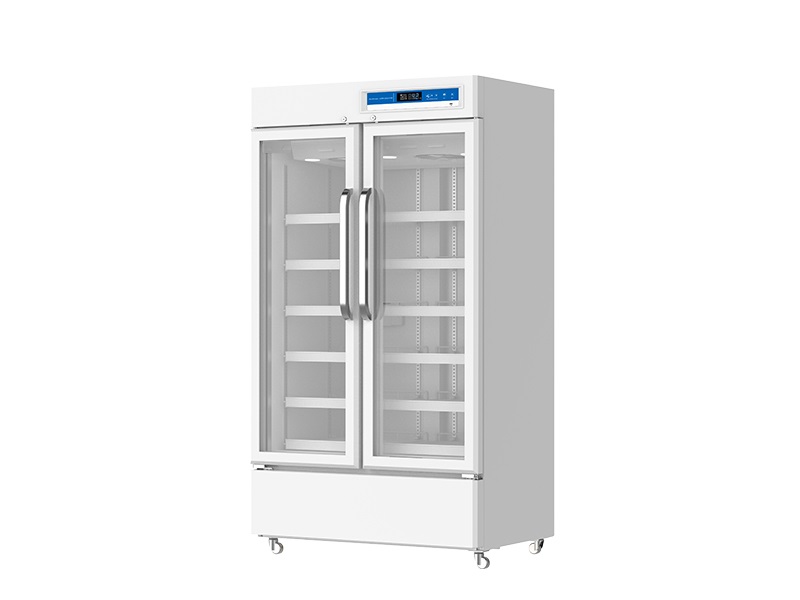

The Jindal SMI-165PR-724L Pharmacy Refrigerator (2℃–8℃) is a high-performance, pharmaceutical-grade unit ideal for storing vaccines and other temperature-sensitive products in pharmacies, clinics, laboratories, medical offices, and research facilities. Engineered for reliability and durability, it complies with strict medical and laboratory refrigeration standards. With a generous 724-liter capacity and 12 adjustable shelves, it offers flexible and efficient storage solutions. The refrigerator features an advanced microcomputer temperature control system that consistently maintains a temperature range of 2℃ to 8℃. It also includes a bright digital temperature display with 0.1℃ accuracy for precise monitoring.
The SMI-165PR-724L Pharmacy Refrigerator features a multi-duct vortex cooling system and a finned evaporator, which completely eliminate frost and greatly enhance temperature consistency. Its high-efficiency air-cooled condenser, combined with the finned evaporator, delivers rapid and reliable cooling performance.
This vaccine refrigerator is equipped with multiple audible and visual alarm functions, including high/low temperature alarms, power failure alarm, low battery alarm, door ajar alarm, high ambient temperature alarm, and communication failure alarm.
The combination of electric heating and LOW-E glass provides enhanced anti-condensation performance for the glass door. This pharmaceutical refrigerator also features high-quality shelves made from PVC-coated steel wire with label holders for easy cleaning and organization. Additionally, the invisible door handle adds a touch of elegance to the overall design.
Model | SMI-165PR-724L |
Cabinet Type | Upright |
Capacity (L） | 724 |
Internal Size(W X D X H)mm | 980 X 595 X 1260 |
External Size(W X D X H)mm | 1093 X 718 X 1992 |
Package Size(W X D X H)mm | 1187 X 795 X 2136 |
NW/GW(Kgs) | 171/208 |
Temperature Range | 2 to 8℃ |
Ambient Temperature | 16 to 32℃ |
Cooling Performance | 5℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Compressor | 1 Nos. |
Cooling Method | Air cooling |
Defrost mode | Automatic |
Refrigerant | R290 |
Insulation Thickness(mm) | L/R:55, B:55 |
External Material | PCM |
Inner Material | Aumlnum plate with spraying/Stainless steel (optional) |
Shelves | 12 (coated steel wired shelf) |
Door lock with key | Yes |
Lighting | LED |
Access Port | 1pc. Ø 25 mm |
Casters | 4+(2 casters with brake) |
Data Logging/Interval/Memory capacity | USB/Record every 10 minutes/100,000data |
Door with Heater | Yes |
Temperature | High/Low temperature, High ambient temperature, Condenser overheating |
Electrical | Power failure, Low battery |
System | Sensor error, Door ajar, Built-in datalogger USB Failure, Communication failure |
Standard | RS485, Remote alarm contact, Backup battery |
