Pharmacy Refrigerator‎ 2℃ to 8℃ SMI-165PR-524L

Home Ultra Low Temp.>Pharmacy Refrigerator>Pharmacy Refrigerator 2℃ to 8℃ SMI-165PR-524L

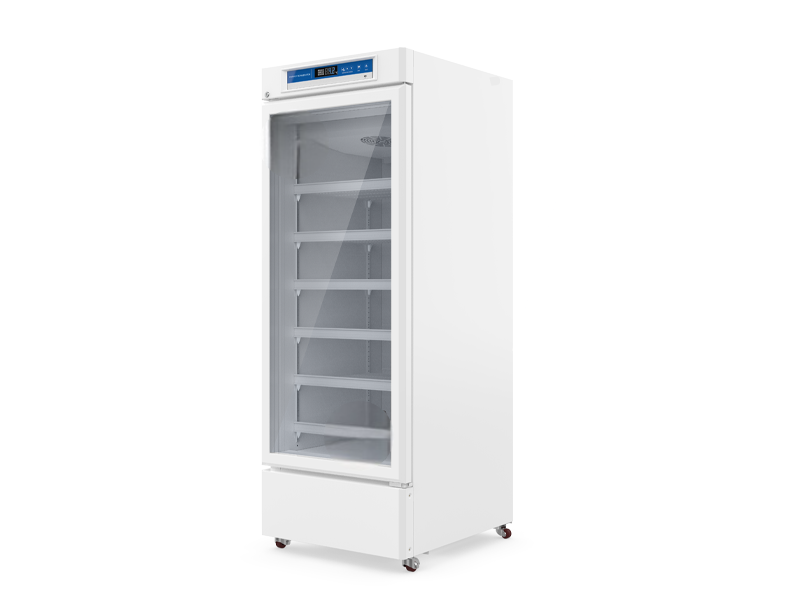

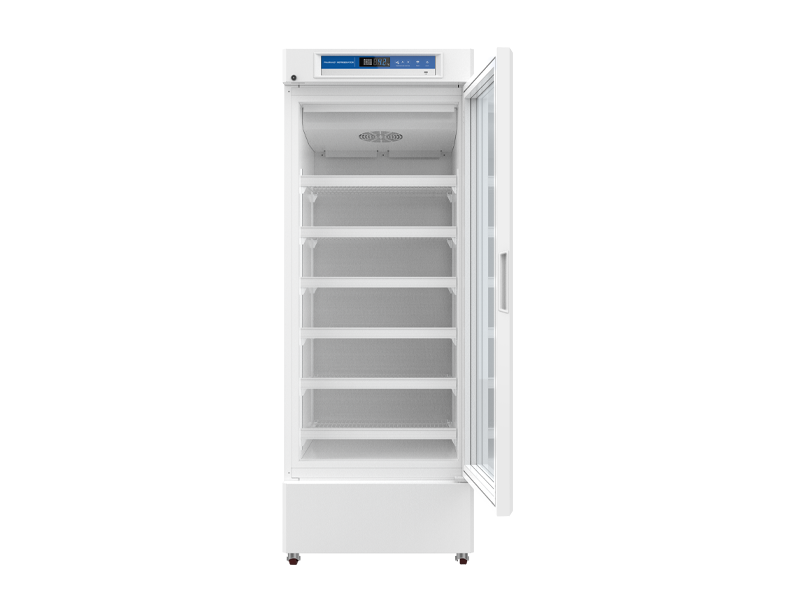

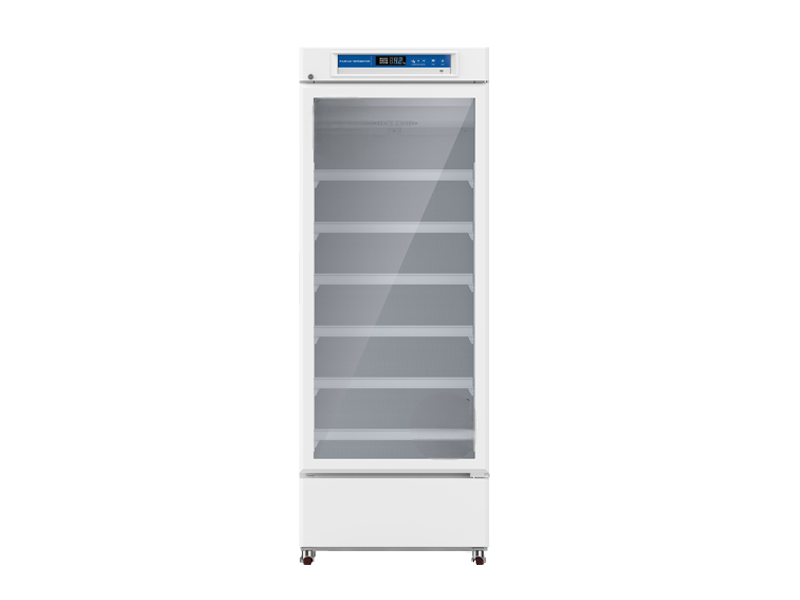

Pharmacy Refrigerator‎ 2℃ to 8℃ SMI-165PR-524L

CLICK TO SCAN

Description

The Jindal Pharmacy Refrigerator (2℃–8℃) is purpose-built for storing temperature-sensitive items in pharmacies, medical practices, laboratories, clinics, and research institutions. Engineered for reliability and long-term performance, it complies with strict medical and laboratory standards. With a 524-liter storage capacity and six adjustable plus one fixed shelf, it offers flexible and efficient storage solutions. The unit is equipped with a high-precision microcomputer temperature control system to maintain a stable temperature between 2℃ and 8℃. A high-brightness digital display shows the temperature with an accuracy of 0.1℃.

Advance Air Cooling Refrigeration System

The SMI-165PR-524L pharmacy refrigerator is equipped with a multi-duct vortex refrigeration system and a finned evaporator, which effectively prevents frost buildup and significantly improves temperature uniformity. Its high-efficiency air-cooled condenser and finned evaporator ensure rapid and consistent refrigeration performance.



Smart Audio-Visual Alarm System

This vaccine refrigerator features multiple audible and visual alarm functions, including high/low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, high ambient temperature alarm, and communication failure alarm.

Advanced Technology Design

The refrigerator features a double-layer foamed solid door for high-efficiency heat preservation. It is equipped with high-quality shelves made from PVC-coated steel wire, each with a tag card for easy cleaning. An invisible door handle adds to the elegant appearance.

Features

  • The SMI-165PR-524L pharmacy refrigerator utilizes seven temperature sensors to deliver precise temperature regulation with minimal fluctuation, enhancing the safety of stored materials.
  • It includes a USB data export port, allowing automatic storage of temperature records from the past month through the current month in PDF format.
  • When a USB drive is connected, temperature data can be continuously logged and saved for over two years.
  • A dual-LED interior lighting system provides clear visibility throughout the cabinet.
  • A built-in test port offers added convenience for monitoring internal temperature conditions.
  • With a generous 524-liter capacity, this unit provides optimal storage for vaccines, pharmaceuticals, reagents, and other medical or laboratory supplies.
  • Its eco-friendly, 100% CFC-free design avoids the use of ozone-depleting substances.
  • The interior is constructed from a coated aluminum panel, with an optional stainless steel liner available for enhanced durability.

Technical Data:

Model

SMI-165PR-524L

Cabinet Type

Upright

Capacity (L)

524

Internal Size (W X D X H)mm

610 X 685 X 1264

External Size (W X D X H)mm

720 X 810 X 1961

Package Size (W X D X H)mm

775 X 868 X 2130

NW/GW(Kgs)

141/178

Temperature Range

2 to 8℃

Ambient Temperature

16 to 32℃

Preset Temperature

5℃

Climate Class

N

Controller

Microprocessor

Display

Digital display

Compressor

1 Nos.

Cooling Method

Air cooling

Defrost Mode

Automatic

Refrigerant

R290

Insulation Thickness(mm)

L/R:55, B:55

PCM

PCM

Inner Material

Aumlnum plate with spraying/Stainless steel (optional)

Shelves

6 (coated steel wired shelf)

Door lock with key

Yes

Lighting

LED

Access Port

  1pc. Ø 25 mm

Casters

4 (2 casters with brake)

Data logging/Interval/Memory capacity

USB/Record every 10 minutes/100,000data

Door with heater

Yes

Temperature

High/Low temperature, High ambient temperature, Condenser overheating

Electrical

Power failure, Low battery

System

Sensor failure, Door ajar, Built-in USB datalogger Failure, Communication failure

Standard

RS485, Remote alarm contact, Backup battery



Product Brochure

Product Brochure Link here
