Home ≫Ultra Low Temp.>Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-449
CLICK TO SCAN

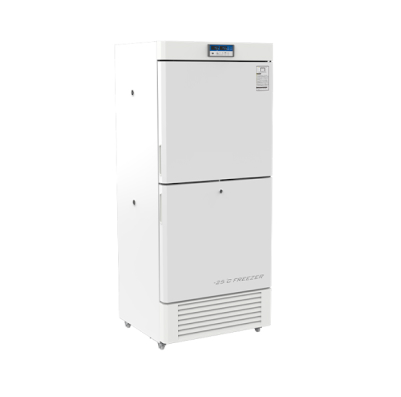

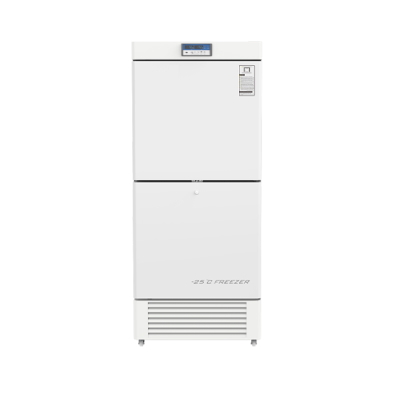

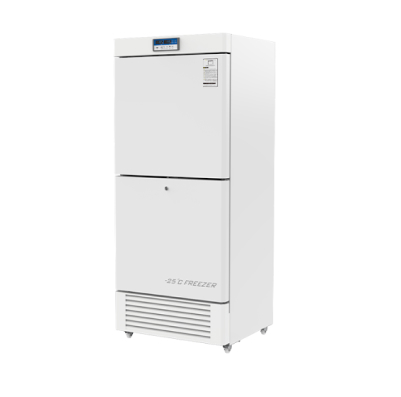

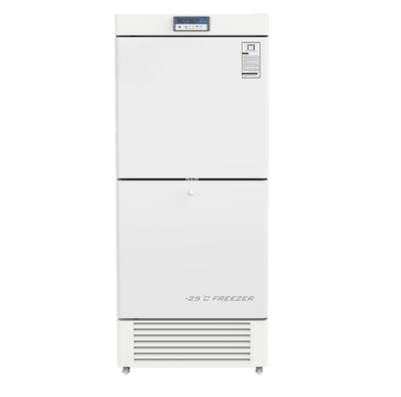

Jindal Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-449 is special for medical freezer and lab freezer. This low temperature freezer is designed with two compressors and two chambers, which allows you to control the upper chamber and lower chamber independently. And the high-precision microcomputer temperature control system has the ability to set the temperature inside the cabinet in the range of -10°C ~-25°C. The built-in door gasket can perfectly maintain a constant inside temperature and is easy to clean. The low temp freezer is best for storage of various medical and scientific materials, including reagent, and more.
Environmentally Friendly Refrigeration System
The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise.
The condenser installed on the bottom ensures temperature stability and system reliability.
High-precision Temperature Control
The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet. The freezer is equipped with two compressors, so independent control of the upper chamber and lower chamber can be realized.
Audible & visual Security System
The well-developed audible & visual alarm system (sensor failure alarm, door ajar alarm, high temperature/low temperature alarm,power failure,low battery,USB datalog failure, communication failure etc.) makes it safer for storage; The turn-on delay and stopping interval protection function can ensure reliability in running.
Human-oriented Structure Design
The arc angle-shaped door frame and cabinet design makes its appearance more attractive. The built-in door gasket is dustproof and easy to clean. Each of the refrigerating chamber and the freezing chamber is equipped with 6 drawers, which are convenient for storage of things.
Mappings
Image in the gallery
Scope of Application
Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-449 suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, blood banks, laboratories in colleges & universities, and catering industry, etc.
|
Model
|
SMI-165LDF-449
|
|---|---|
|
Cabinet
|
Chest
|
|
Capacity(L）
|
449
|
|
Internal Size(W*D*H)mm
|
(650*570*627)*2
|
|
External Size(W*D*H)mm
|
810*735*1960
|
|
Package Size(W*D*H)mm
|
895*820*2135
|
|
NW(Kg)
|
136/165
|
|
Performance
|
|
|
Temperature Range
|
-10～-25℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-25℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital Display
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
2pcs
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
R600a
|
|
Insulation Thickness(mm)
|
80
|
|
Construction
|
|
|
External Material
|
PCM
|
|
Inner Material
|
Aluminum Plate With Spraying
|
|
Drawers
|
12(ABS)
|
|
Access Port
|
2pcs. Ø 25 mm
|
|
Door lock with key
|
Yes
|
|
Backup Battery
|
Yes
|
|
Casters
|
4(2 casters with brake)
|
|
Data Logging / Interval / Recording Time
|
USB/Record every 10 minutes / 2 years
|
|
Door
|
2
|
|
Backup Battery
|
Yes
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature,High ambient temperature
|
|
Electrical
|
Power failure, low battery
|
|
System
|
Sensor failure,Door ajar, Main board communication error, Condenser overheating
|
|
Accessories
|
|
|
Standard
|
RS485,Remote alarm contact
|
Product Brochure Link here
