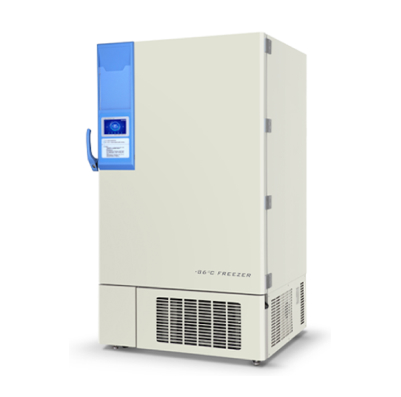

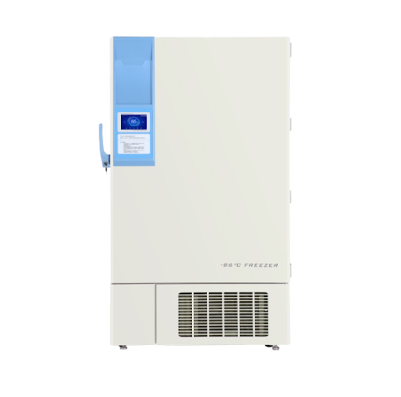

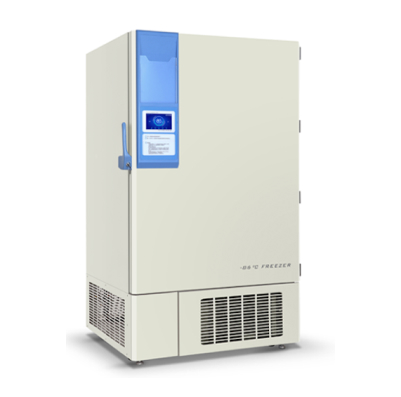

Intelligent Touch Screen ULT Freezer -40~-86℃ SMI-165ICS-SA-776

Home ≫Ultra Low Temp.>Intelligent Touch Screen ULT Freezer -40~-86℃ SMI-165ICS-SA-776



Intelligent Touch Screen ULT Freezer -40~-86℃ SMI-165ICS-SA-776

CLICK TO SCAN

Description

  • Targeted Refrigeration
  • Fast Refrigeration
  • Energy-saving & Environmentally Friendly
  • Awarded with the Second Prize under State Technological Invention Award
  • VIP vacuum thermal insulation plate
  • For COVID-19 vaccine storage

7” Screen Control System

7-inch Intelligent HD display touch screen,user-friendly interface and more accurate temperature control, with Bluetooth, Wi-Fi and other functions, more convenient operation and more comprehensive functions.

The high-precision microcomputer control system and platinum resistor sensors enable users to set temperature inside the cabinet within a range from -40 to -86℃.

Refrigeration System

The imported high-efficiency compressor and EBM fan are energy-saving and highly efficient. The large finned condenser with a space between fins ≤ 2mm, providing effective heat dissipation.

Security System

The perfect audible & visual alarm system,  high and low temperature ,sensor failure ,power failure ,low battery ,door ajar ,main board communication error, high ambient temperature ,built-in data logger USB failure,samples out of date notification etc.

The compressor start delay and stopping interval protection can ensure reliable operation. Both the touch screen controller and key- board controller have password protection which can prevent any adjustment of operation without permission.

Three-dimensional Thermal Insulation

The six sides of the cabinet are made from high -efficiency VIP vacuum thermal insulation plate, and the thermal insulation design of the inner door made from foaming material and the outer door system was awarded with multiple patents, which can improve the thermal insulation performance of the freezer.

Human-oriented

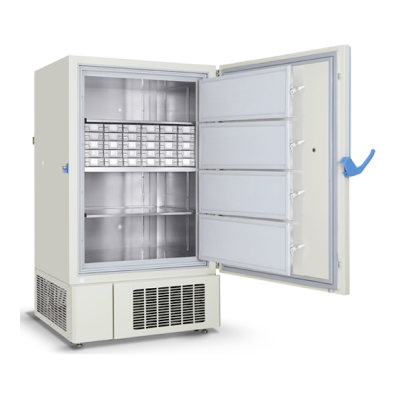

The new designed assisting handle and vacuum release port let the freezer be operated single- handed to open and close the outer door. The newly added file box makes recording easier and more convenient.The liner made from High quality stainless steel for medical use is low-temperature tolerant and corrosion-resistant, which has a long service life and is easy to clean.The universal casters and leveling feet design are more convenient for movement and fixation.

Optional Accessory(WiFi/Bluetooth printer/Mechanical lock/Swipe card/Fingerprint)

Connect WiFi to upload data to the cloud space, monitor the device, check the status of the refrigerator faster, and ensure the safety of the samples.Optional Bluetooth printer, real-time export temperature data, temperature graph, setting operation and other data, to understand the freezer operating status.Optional functions such as card unlocking, fingerprint unlocking, and facial recognition unlocking are available to facilitate quick access to samples.

Features

  • Intelligent control system.
  • The new generation of ultra-low temperature refrigeration system can ensure fast refrigeration and was awarded with the Second Prize under State Technological Invention Award.
  • Imported high-efficiency compressor,separated evaporator, composite heat exchanger, optimized fractional condensation & separation system , high-efficiency thermal insulation.
  • System can save energy and reduce power consumption of the freezer by 40%.

 Scope of Application

This Intelligent Control System  Ultra low Energy saving freezer can be used as laboratory freezer, ultra low medical freezer and deep freezer is suitable for application in hospitals, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, and more.

SMI-165ICS-SA-776 is the current hot ultra-low temperature freezer for COVID-19 vaccine storage.

Specifications

Model
SMI-165ICS-SA-776
Cabinet Type
Upright
Capacity(L)
776
Internal Size(W*D*H)mm
865*696*1286
External Size(W*D*H)mm
1205*1025*1955
Package Size(W*D*H)mm
1320*1155*2171
NW(Kg)
365/455(wood packing)
Performance
Temperature Range
-40~-86℃
Ambient Temperature
16-32℃
Cooling Performance
-86℃
Climate Class
N
Controller
Microprocessor
Display
HD intelligent touch screen
Refrigeration
Compressor
2pcs
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
Mixture Gas
Insulation Thickness(mm)
L/R:130, B:130
Construction
External Material
Cold rolled steel
Inner Material
Stainless Steel
Shelves
3(stainless steel)
External Lock
Yes
Access Port
3pcs. Ø 25 mm
Door lock with key
Yes
Backup Battery
Yes
Data logging/Interval/Memory capacity
USB/Record every 5 minute / 10 years
Casters
4+(2 leveling feet)
Alarm
Temperature
High/Low temperature,High ambient temperature
Electrical
Power failure,Low battery
System
Sensor failure,Main board communication error,Condenser overheating,Door ajar
Accessory
Standard
Remote alarm contact,RS485
Options
Chart recorder, CO2 backup system
