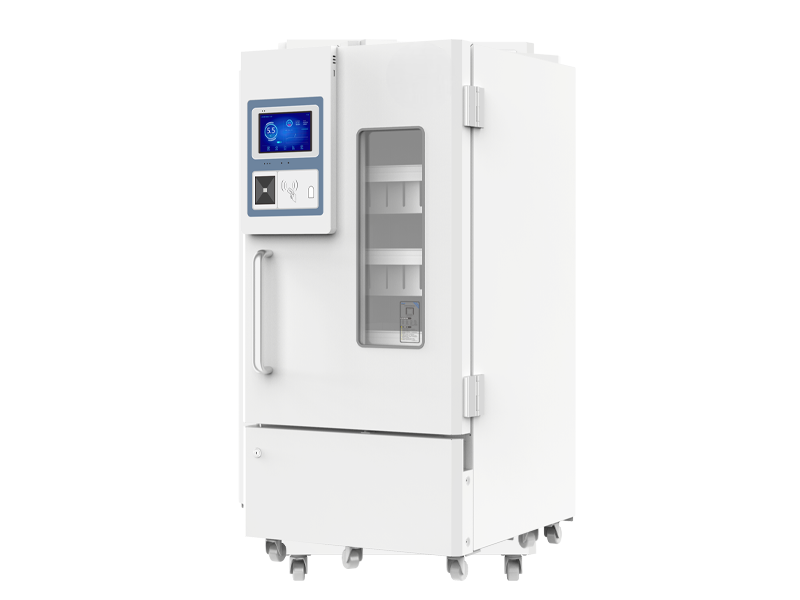

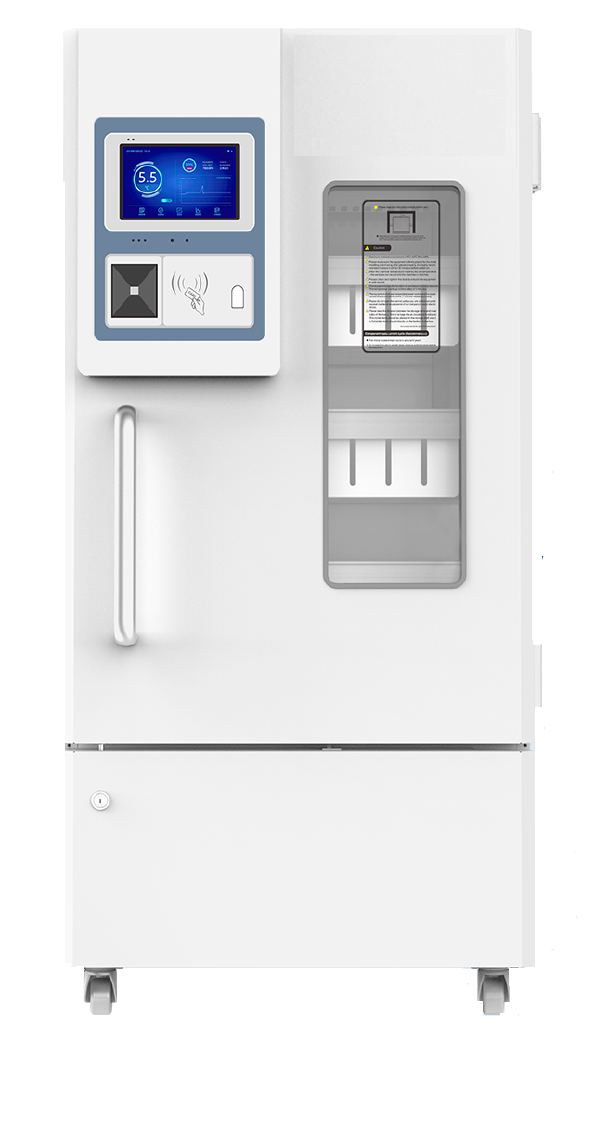

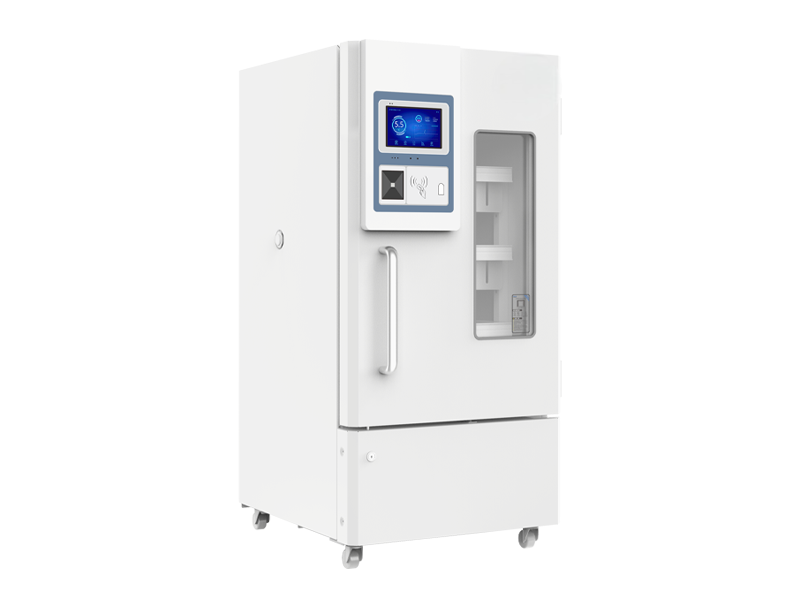

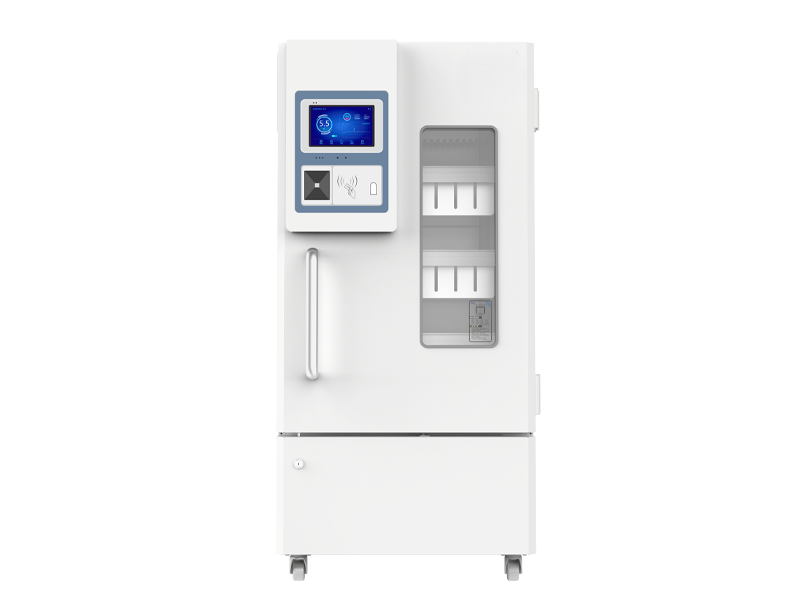

The Jindal 4℃ Blood Bank Refrigerator SMI-167L is designed for storing blood products and is suitable for use in blood stations, hospitals, epidemic prevention centers, research institutes, and more. It features an auto-defrost glass door to ensure the safe storage of medical or laboratory materials.
A comprehensive audible and visual alarm system provides alerts for high temperature, low temperature, sensor failure, door ajar, and power failure.
High-brightness digital temperature display with a resolution of 0.1℃.
Lockable door with key to prevent unauthorized access.
Aluminum-finned copper tubing and a high-efficiency air-cooled evaporator ensure optimal performance.
Audible and visual alarm system includes alerts for high/low temperature, power failure, door ajar, and more.
Double-layer glass door with auto-defrost function ensures temperature uniformity.
Non-CFC rigid polyurethane insulation minimizes heat gain and enhances energy efficiency.
Advanced air-cooling design with precise temperature control ensures the safety and security of stored blood.
Stainless steel inner chamber, copper tube evaporator, and high-performance refrigeration system deliver reliable and efficient cooling.
Equipped with three stainless steel drawers.
Capacity to hold up to 117 blood bags (400 ml each).
Model | SMI-167L |
Cabinet type | Upright |
Capacity(L） | 167 |
Internal size(W X D X H)mm | 525 X 550 X 744 |

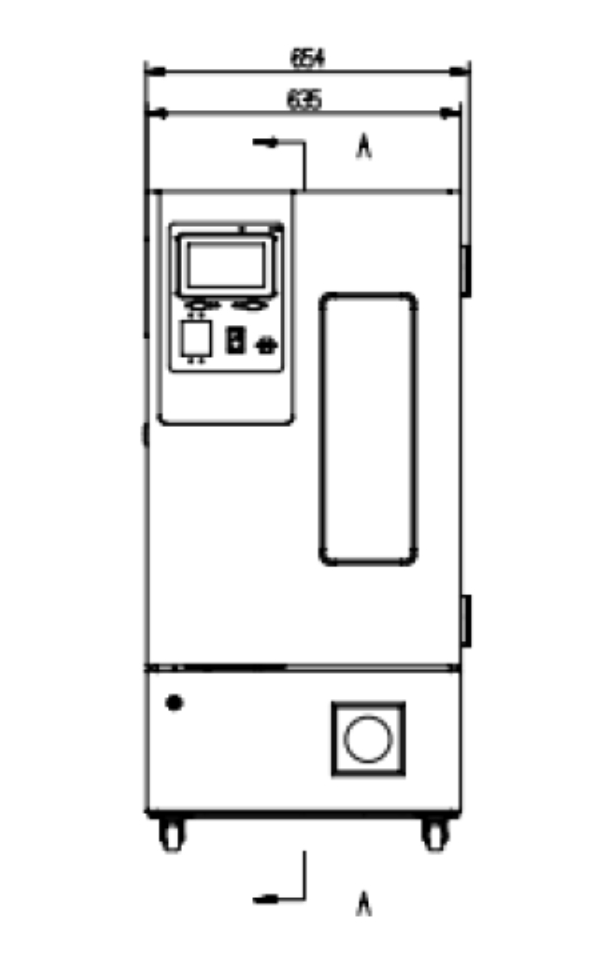

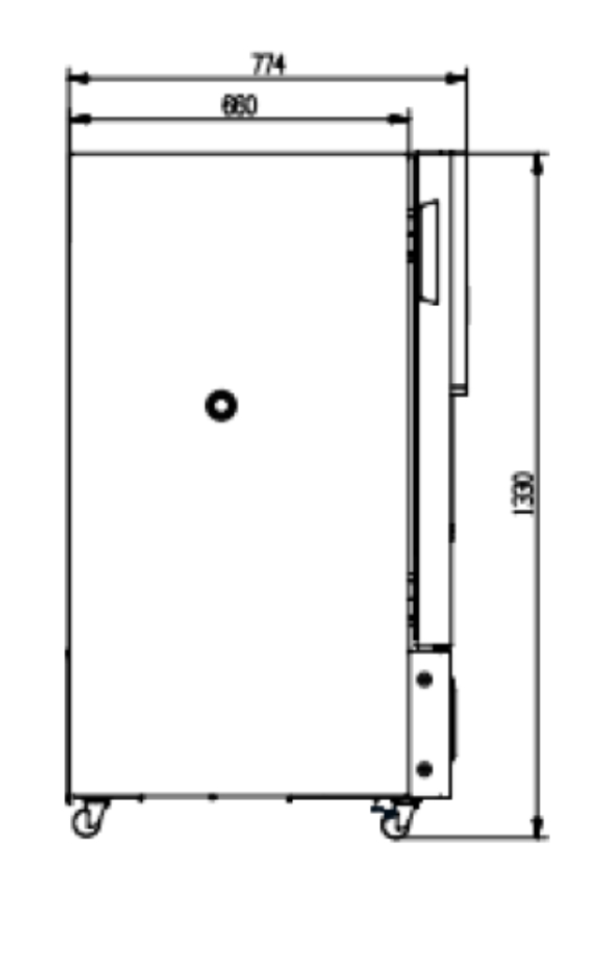

External size(W X D X H)mm | 654 X 774 X 1330 |
Package size(W X D X H)mm | 700 X 837 X 1492 |
NW/GW(Kgs) | 116/144 |
Ambient temperature | 16-32℃ |
Climate class | N |
Controller | Microprocessor |
Display | touch screen |
Compressor | 1Nos. |
Cooling method | Air cooling |
Defrost mode | Automatic |
Refrigerant | R290 |
Insulation thickness(mm) | R/L:55, B:50 |
External material | PCM |
Inner material | Stainless steel |

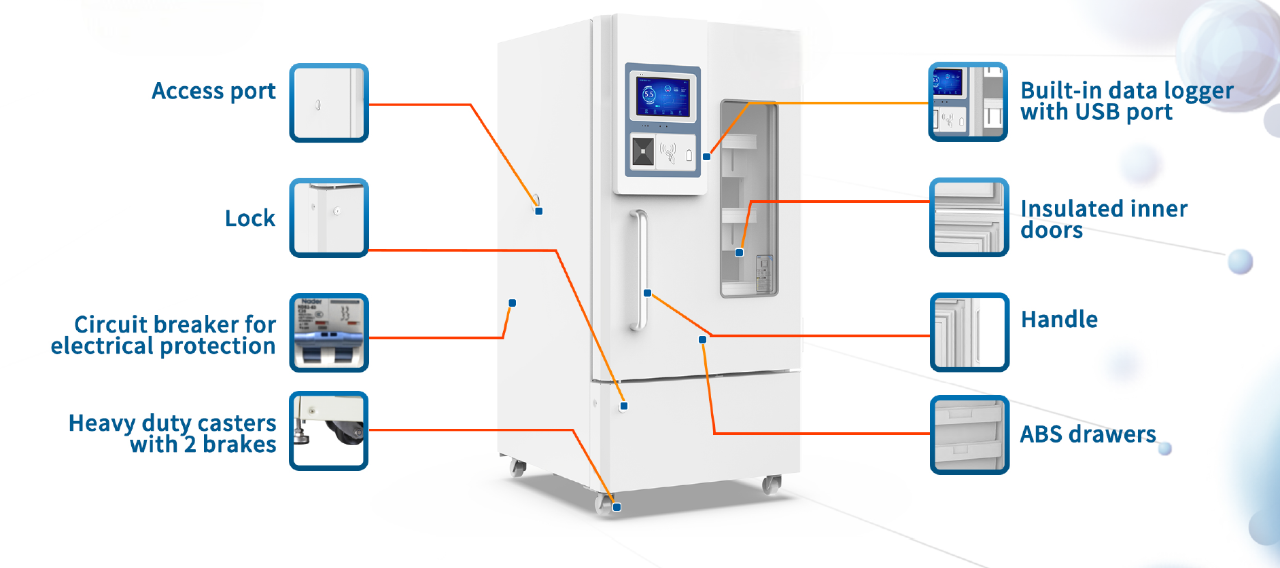

Door lock with key | Yes |
Access port | 1pc.Ø 25 mm |
Casters | 4 ( 2 casters with brakes) |
Data logging/Interval/Memory capacity | USB/Record every 5 minutes / 10 years |
Backup battery | Yes |
Temperature | High/Low temperature, High ambient temperature |
Electrical | Power failure , Low battery |
System | Sensor failure, Door ajar, Condenser overheating, Communication error |
Options | Chart recorder |
Standard | USB interface ,RS485,Remote alarm contact |
