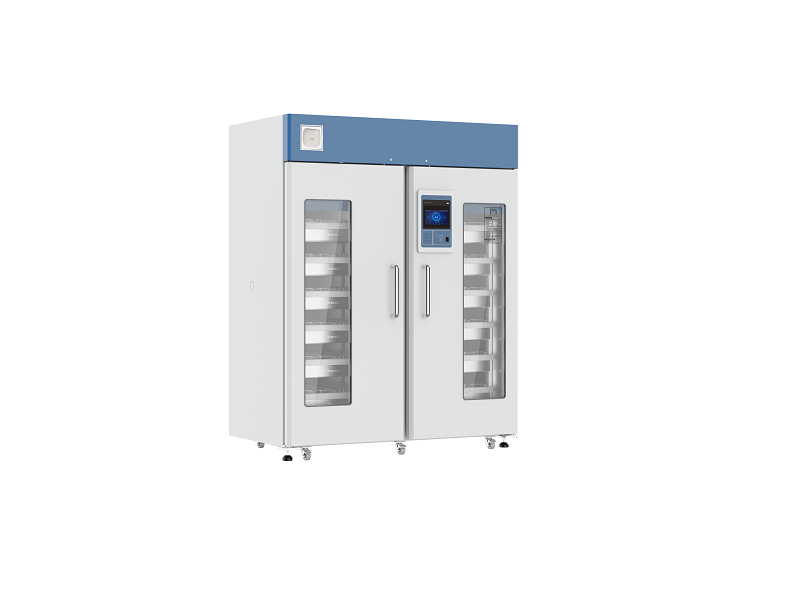

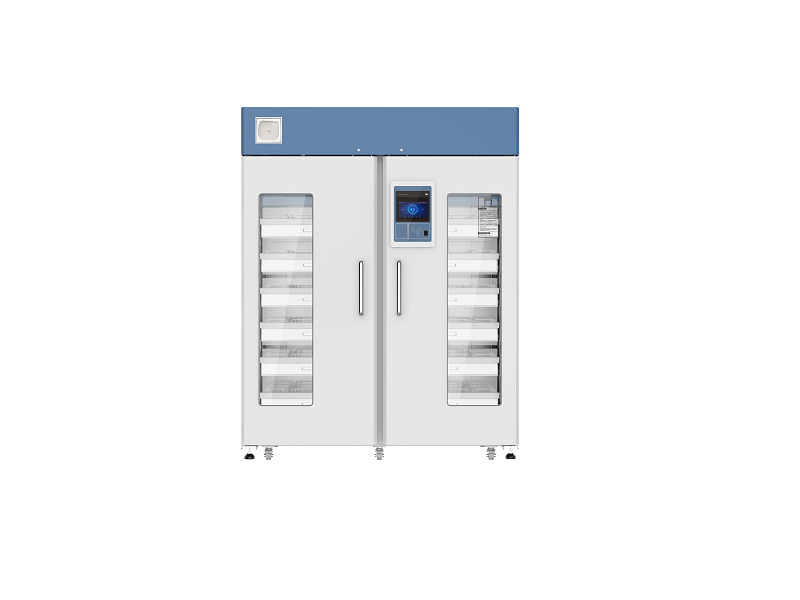

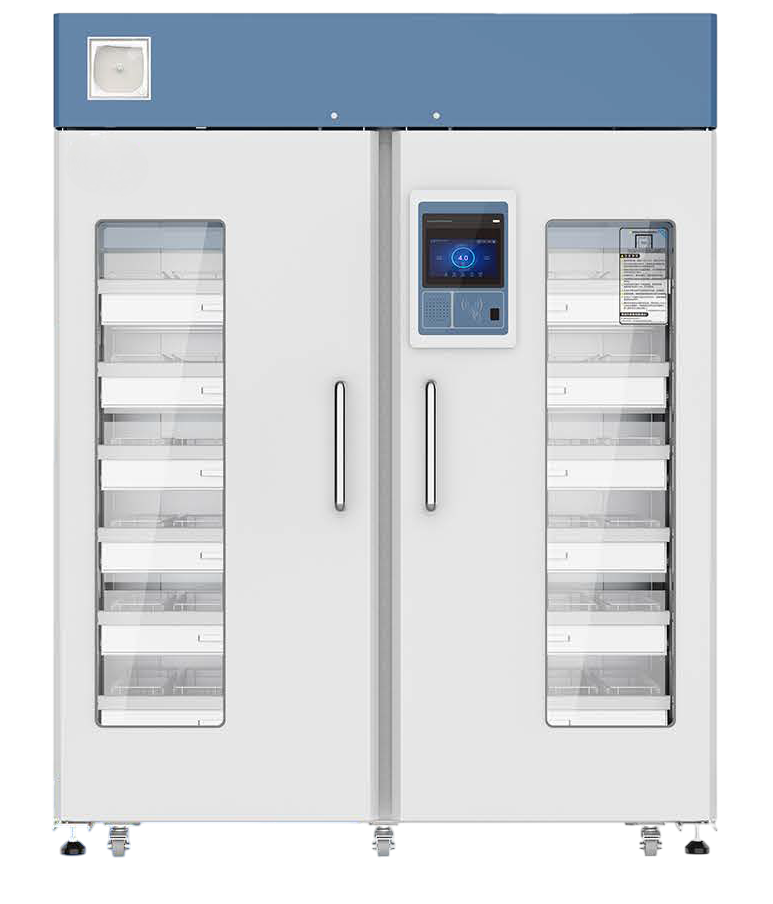

The Jindal large-capacity blood bank refrigerators, models SMI-1377L, are suitable for use in blood stations, hospitals, research institutes, centers for disease control and prevention, and other facilities that require the preservation of Concentrated Red Blood Cells (CRC), Leukocyte-Poor Red Cells (LPRC), Red Cell Suspensions (CRCs), Washed Red Blood Cells (WRC), Frozen Red Blood Cells (FTRC), and Whole Blood.
The environmentally friendly, Freon-free refrigerant and high-efficiency, hermetically sealed compressor from a renowned brand ensure energy savings and low noise operation.
A comprehensive audible and visual alarm system provides alerts for high temperature, low temperature, sensor failure, door ajar, and power failure.
Temperature uniformity: ≤±1°C
USB data export: Data can be exported and stored via USB every 5 minutes by default, with support for up to 10 years of storage.
Self-closing door design: The door remains open when positioned above 90° and closes automatically when opened less than 90°.
Audible and visual alarm system: Includes alarms for high/low temperature, power failure, door ajar, and more.
Large capacity: Can store up to 768 units of 400ml blood bags or 624 units of 450ml blood bags.
304 stainless steel drawers: Durable, corrosion-resistant, and easy to clean, ideal for medical-grade storage.
Large storage capacity: Accommodates up to 768 units of 400ml blood bags or 624 units of 450ml blood bags.
Self-closing door design: The door remains open when angled over 90°, and closes automatically when opened less than 90°, ensuring convenience and energy efficiency.
Model | SMI-1377L |
Cabinet type | Upright |
Capacity(L） | 1377 |
Internal size(W X D X H)mm | 1460 X 680 X 1512 |

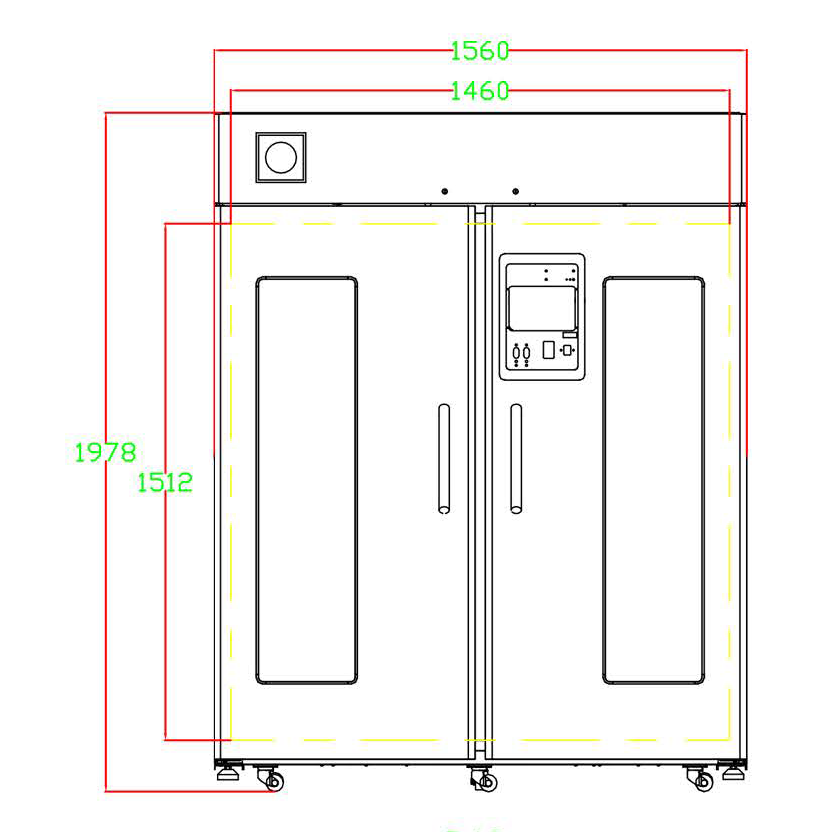

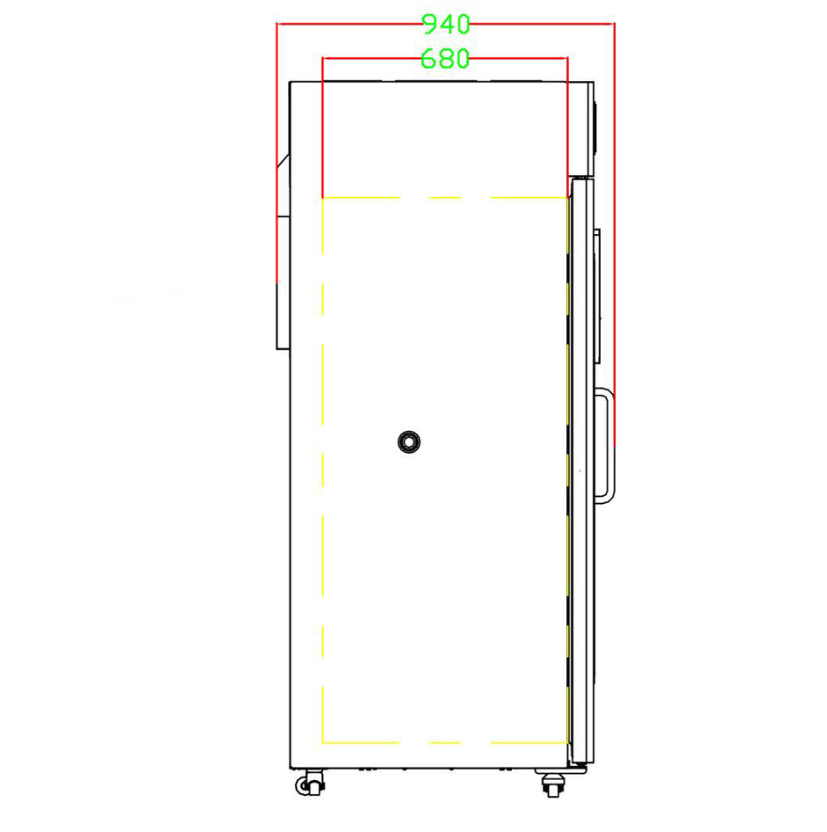

External size(W X D X H)mm | 1560 X 940 X 1978 |
NW(Kgs) | 443 |
Ambient temperature | 16-32℃ |
Climate class | N |
Compressor | 1 Nos. |
Cooling method | Air cooling |
Defrost mode | Automatic |
Refrigerant | R600a |
Insulation thickness(mm) | L:67,R:50, B:50 |
External material | PCM |
Inner material | Stainless steel |
Drawers | 12(Stainless steel drawer) |
Temperature | High/Low temperature,High ambient temperature |
Electrical | Power failure , Low battery |
System | Sensor failure,Door ajar,Condenser overheating,Communication error |
Standard | RS485,Remote alarm contact |
Option | Chart recorder |
