Ice Cube Making Machine SMI-4013C

Home ≫Ultra Low Temp.> Ice Maker >Ice Cube Making Machine SMI-4013C

CLICK TO SCAN

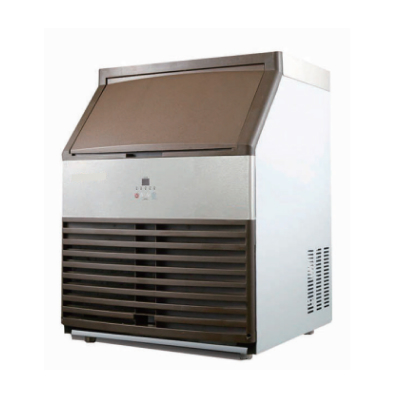

JINDAL Ice Cube Making Machine is designed to meet the requirements of the industry.

The ice type is Square ice, suitable for all applications.
All-in-one independent structure makes them simple and compact and space-saving.
High-quality stainless steel is used for their shells, they are anti-corrosive and durable.
They stop automatically in case of ice full or water deficiency and starts automatically when power or water supply is resumed.
They have ice full display, water deficiency display, overcooling protection display and malfunction warning display, etc. for shutdown protection.
There are power switch and function indicators deployed in the front with detailed instructions. It is intuitive and easy to use. Various safety performance indicators have passed electrical tests, they are safe and reliable.
Their boxes are protected with fluorine-free foam thermal cover featuring good insulation effect.
Their internal bladders are of fluorine-free bacterial inhibitory-type. They are both energy-saving and environmental friendly.

Model	SMI-4013C-40	SMI-4013C-80	SMI-4013C-210
Ice making Capacity(kg/24h)	40	80	210
Ice Storage Capacity (kg)	15	40	145
Ice Shape	Ice shape	Ice shape	Ice shape
Input Current (w)	380	460	860
Ambient Temp.	5 to 35⁰C	5 to 35⁰C	5 to 35⁰C
Water Temperature	10 to 25⁰C	10 to 25⁰C	10 to 25⁰C
Power Supply	AC220V,50/60HZ	AC220V,50/60HZ	AC220V,50/60HZ
Refrigeration type	Air Cooling	Air Cooling	Air cooling/ Water Cooling
Water Input Type	Automatic Water Tap	Automatic Water Tap	Automatic Water Tap
Tank Shell	Stainless Steel	Stainless Steel	Stainless Steel
Compressor	CFC-Free	CFC-Free	CFC-Free
Refrigerant	R404A	R404A	R404A
Standard Accessories	Water inlet pipe1, Drainage pipe1, Ice spoon*1,Filter
Net Weight (kg)	36	59	75
Gross Weight (kg)	53	74	85
External size (W X D X H) mm	500 X 460 X 790	660 X 670 X 890	560 X 830 X 1580
Package size (W X D X H) mm	580 X 540 X 860	770 X 750 X 920	710 X 640 X 630 (Head Size) 850 X 630 X 950 (Ice Tank Size)

Product Brochure Link here
