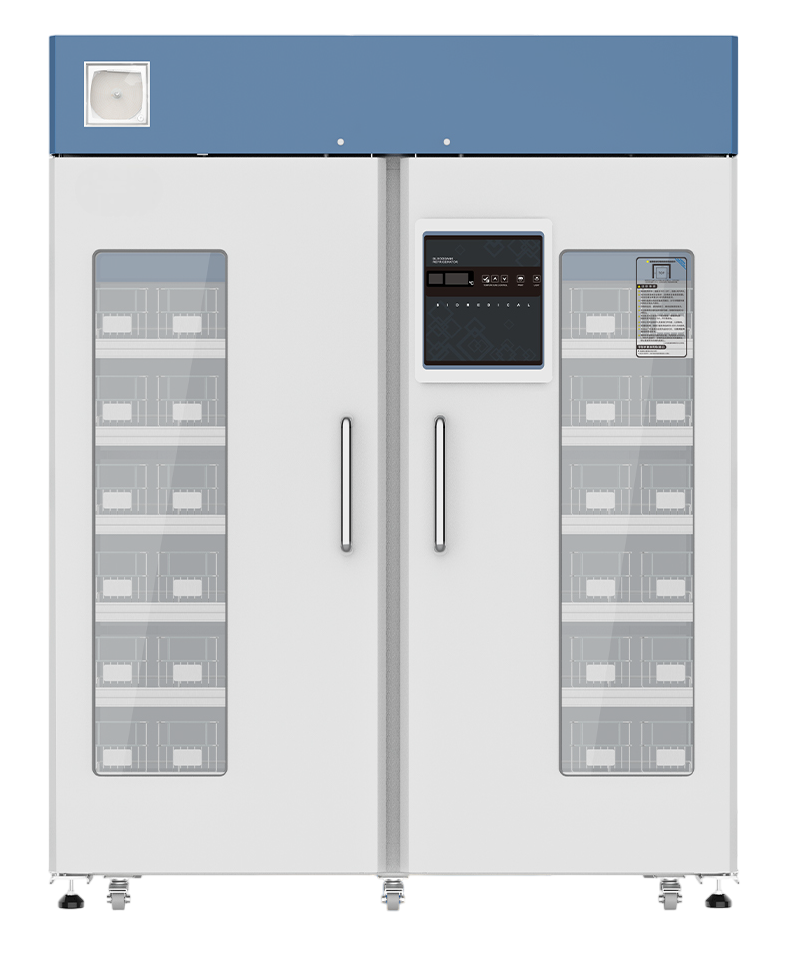

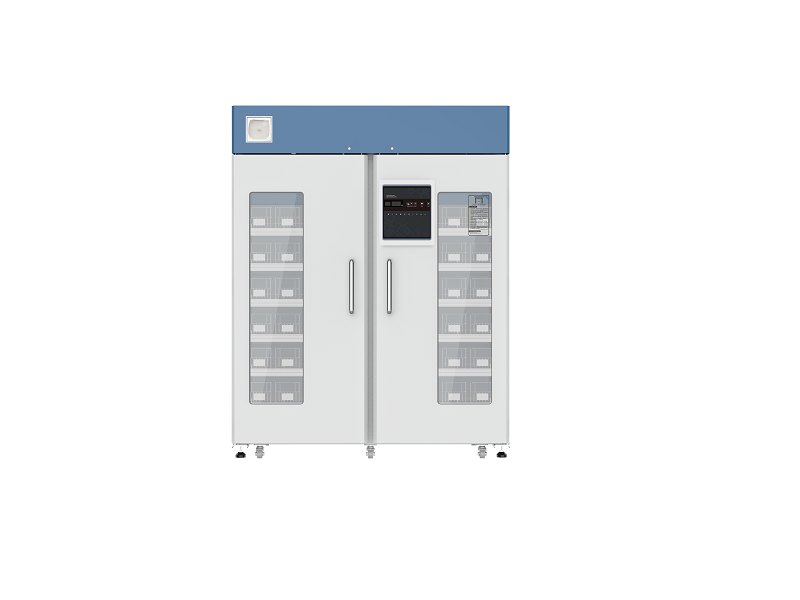

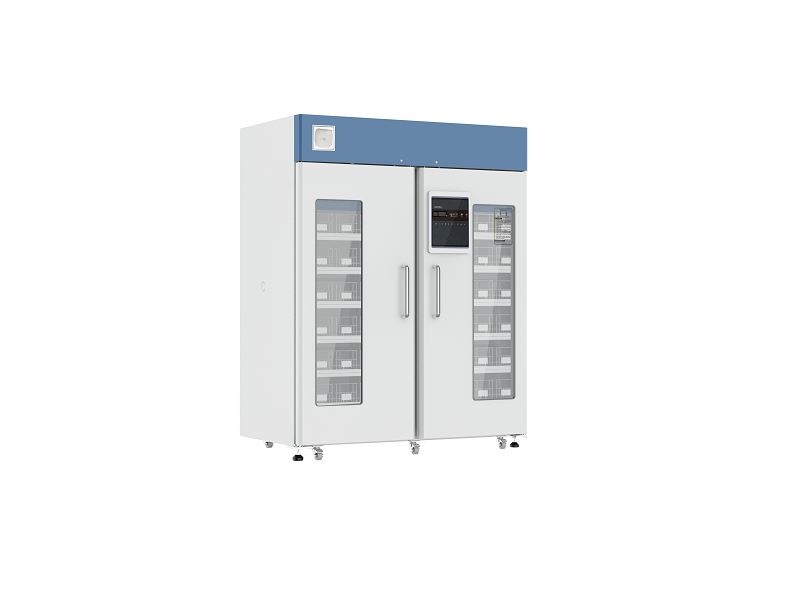

The Jindal large-capacity Blood Bank Refrigerator SMI-164E-1379L is suitable for use in blood stations, hospitals, research institutes, centers for disease control and prevention, and other facilities requiring the preservation of various blood components, including Concentrated Red Blood Cells (CRC), Leukocyte-Poor Red Cells (LPRC), Red Cell Suspension (CRCs), Washed Red Blood Cells (WRC), Frozen Red Blood Cells (FTRC), and Whole Blood.
Can store up to 768 pieces of 400ml blood bags or 624 pieces of 450ml blood bags.
The environmentally friendly, Freon-free refrigerant and high-efficiency enclosed compressor, supplied by a renowned brand, ensure energy savings and low noise.
Temperature uniformity: ≤±1℃.

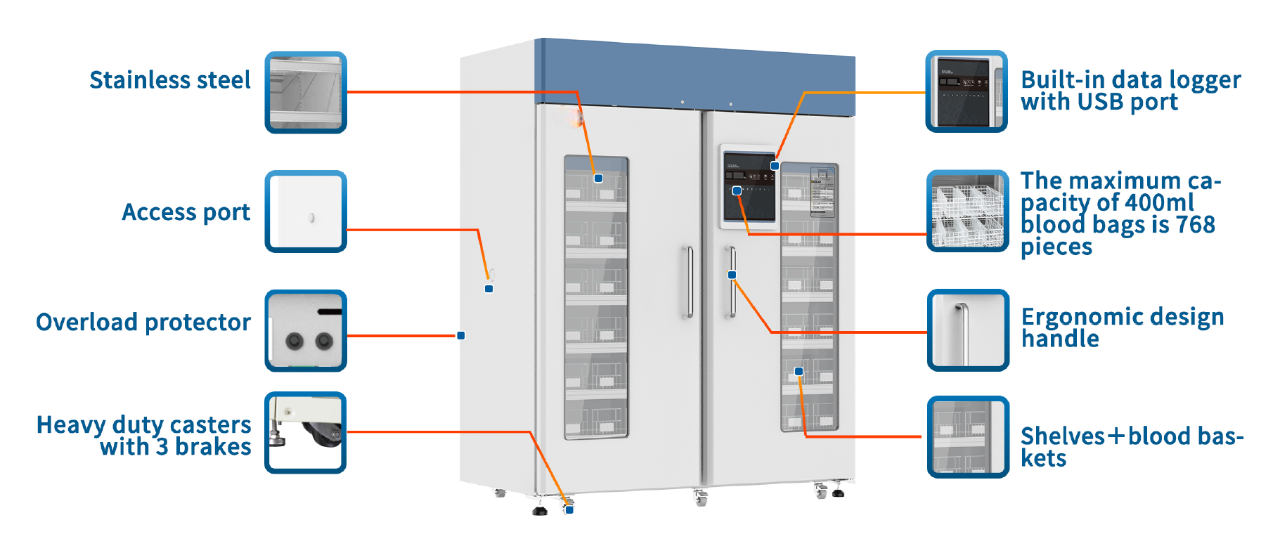

USB data export: Data can be exported and stored every 5 minutes by default, with a maximum support duration of 10 years.
Self-closing door design: The door remains open when it is opened more than 90° and closes automatically when opened less than 90°.
Audible and visible alarm system: Includes high/low temperature alarms, power failure alarms, door ajar alarms, and more.
Large capacity: Can store up to 768 pieces of 400ml blood bags or 624 pieces of 450ml blood bags.
Model | SMI-164E-1379L |
Cabinet type | Upright |
Capacity(L） | 1379 |

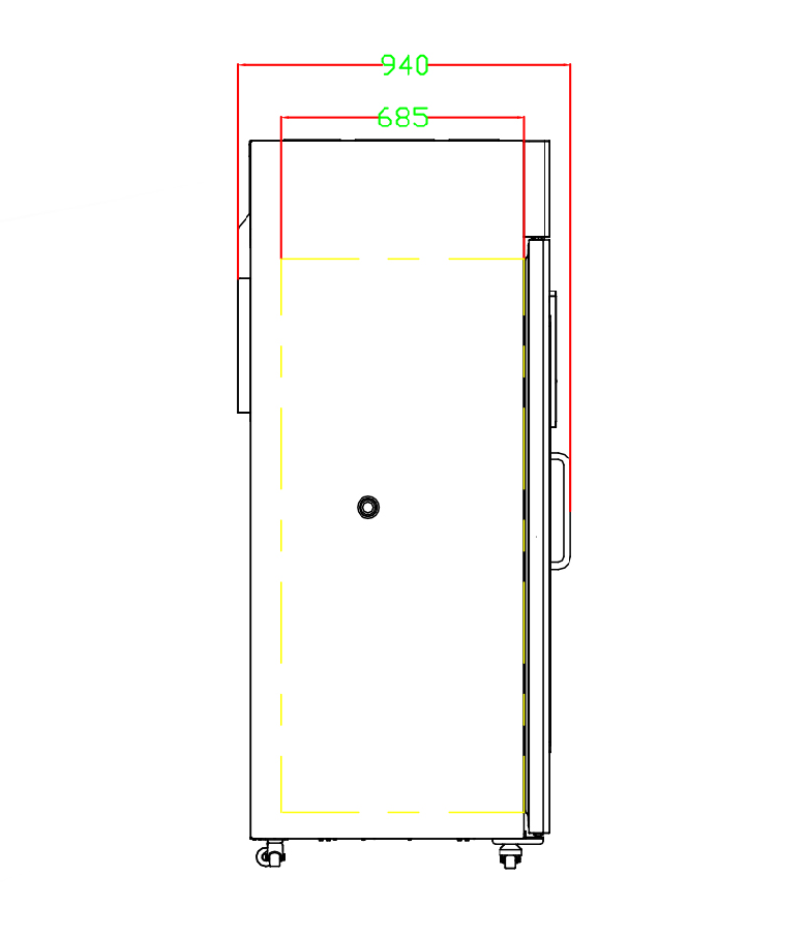

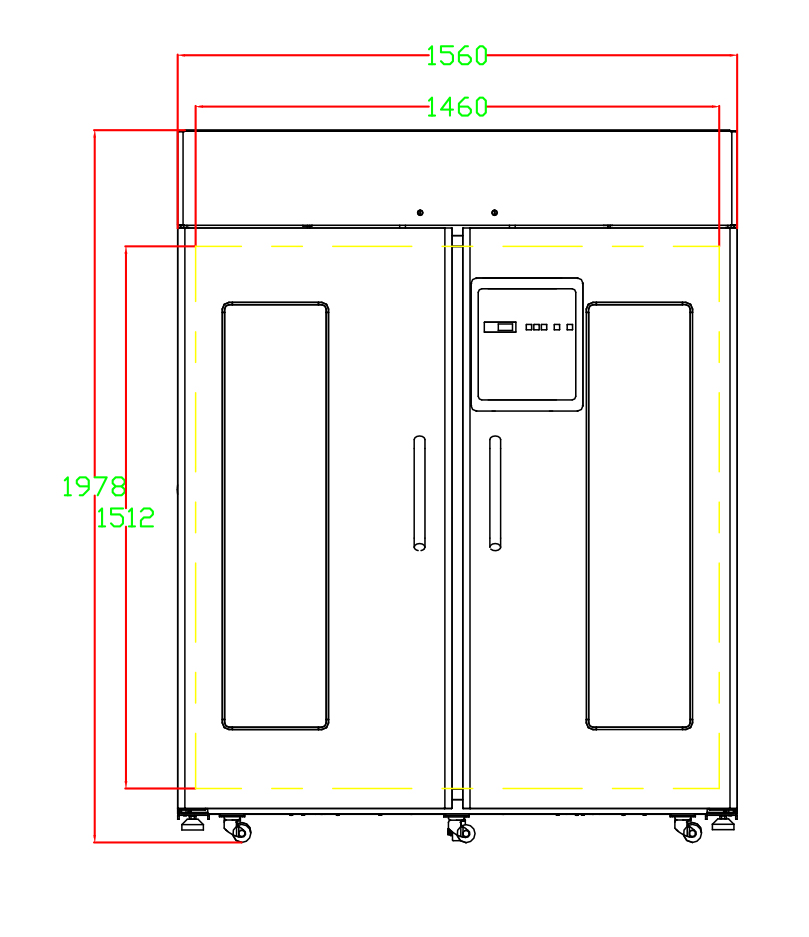

Internal size(W X D X H)mm | 1460 X 685 X 1512 |
External size(W X D X H)mm | 1560 X 940 X 1978 |
NW(Kgs) | 367 |
Ambient temperature | 16-32℃ |
Climate class | N |
Compressor | 1 Nos. |
Cooling method | Air cooling |
Defrost mode | Automatic |
Refrigerant | R600a |
Insulation thickness(mm) | L:67,R:50, B:50 |
External material | PCM |
Inner material | Stainless steel |
shelves | 12(Stainless steel shelves) |
Temperature | High/Low temperature,High ambient temperature |
Electrical | Power failure , Low battery |
System | Sensor failure,Door ajar,Condenser overheating,Communication error |
Standard | RS485,Remote alarm contact |
Option | Chart recorder |
