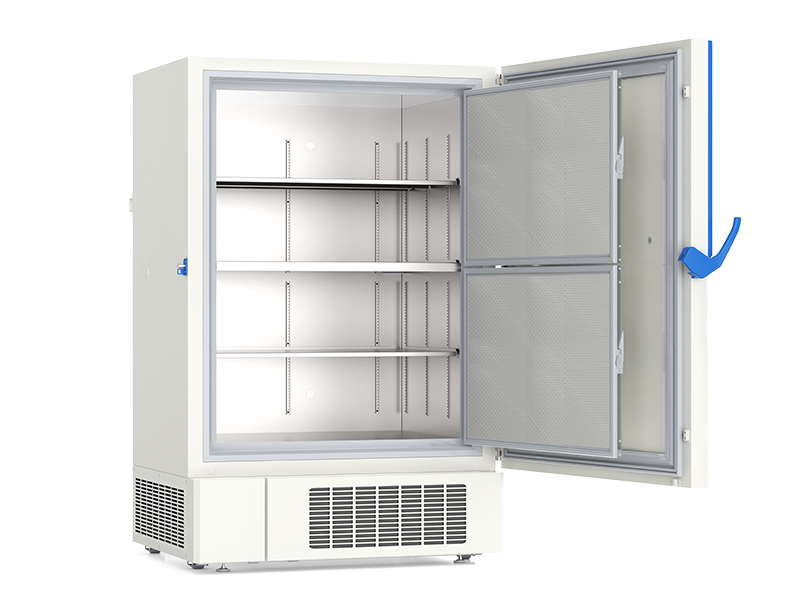

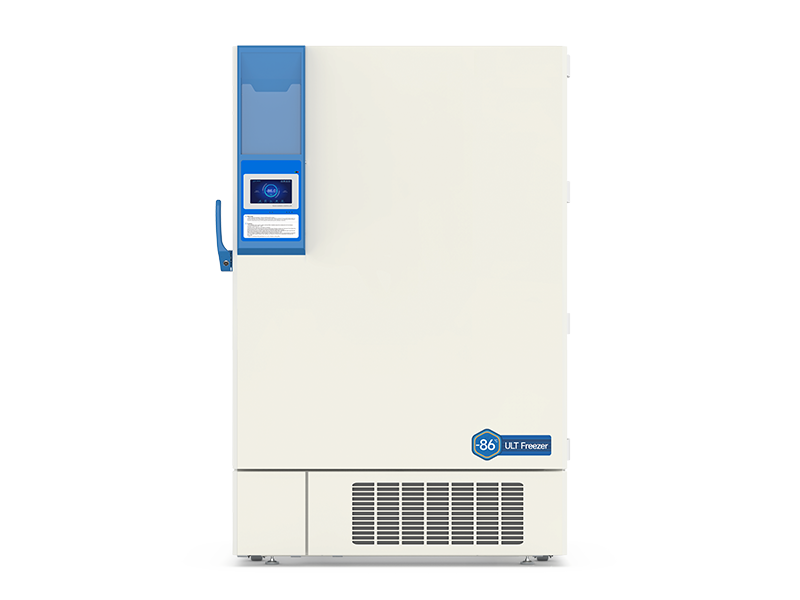

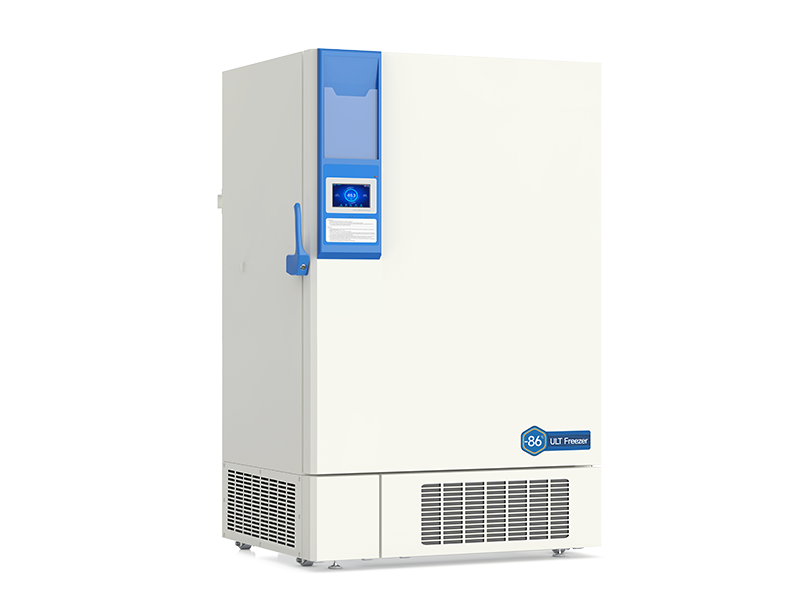

The Jindal -86°C Ultra-Low Vaccine Freezer SMI-165CD-1007 introduces major upgrades to the ultra-low freezer series. This newly designed deep freezer for laboratory and medical use features four independent inner doors with optimized foamed insulation, delivering improved temperature performance. Specially engineered for long-term and secure storage, this ultra-low freezer is ideal for preserving high-value medical and laboratory materials.

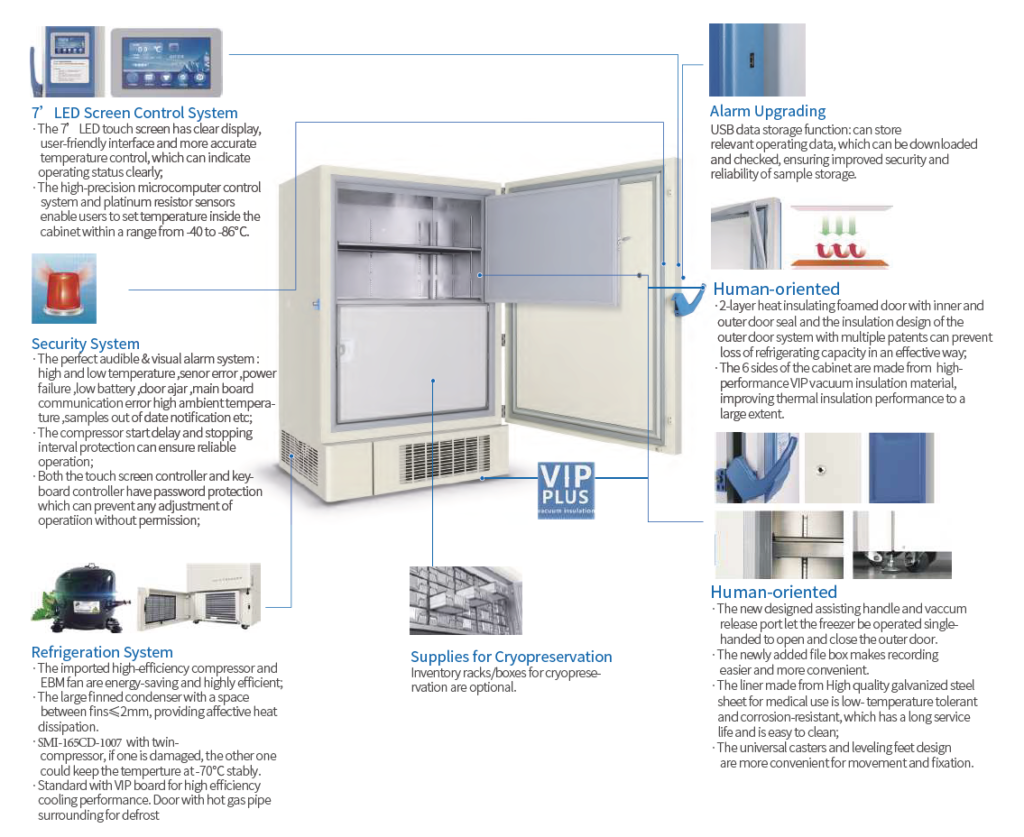

The ultra-low freezer features a new design with a 7-inch LED touchscreen display, offering a more user-friendly and convenient interface. It ensures accurate temperature display to 0.1°C and allows you to freely set the internal temperature from -40°C to -86°C.
The Double Protection system is newly designed to securely store valuable biological samples. It consists of two independent compressors that ensure a reliable ultra-low temperature environment of -80°C. In the event of an unexpected failure in one cooling circuit, the other can maintain a temperature of at least -80°C for long-term operation. This is crucial for safeguarding valuable and irreplaceable samples with the utmost confidence, ensuring they remain secure even in the event of a compressor failure.
The ULT freezer uses natural green gases as refrigerants to meet safety requirements for usage. These natural hydrocarbon refrigerants are SNAP-compliant according to U.S. regulations. Additionally, this is supported by European Union regulation (EU-517/2014). The foaming agents used during manufacturing are fully controlled to ensure they are environmentally friendly.

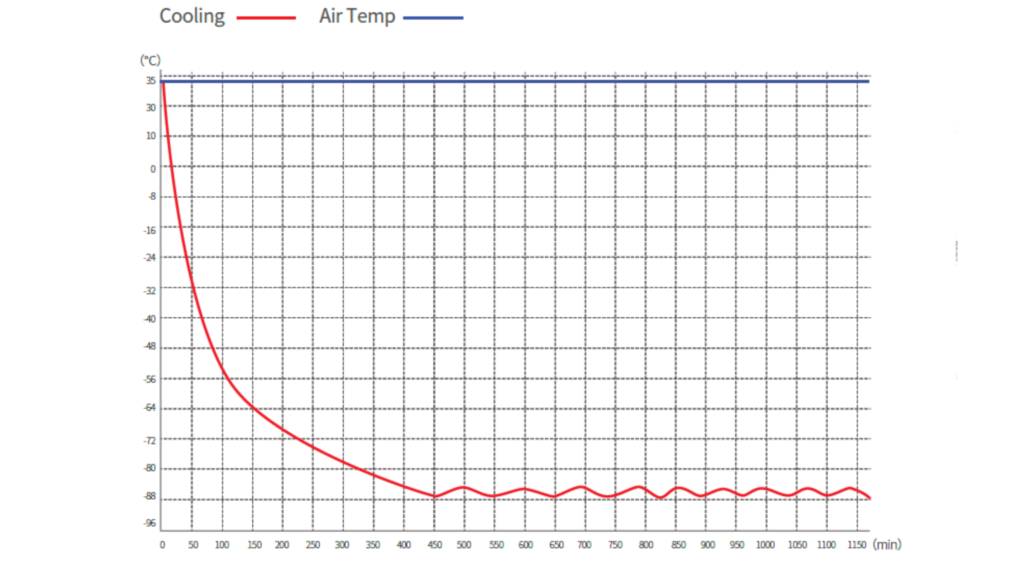

The auto cascade system with a patented refrigerant formula offers superior cooling performance and a simplified structure, thanks to a more compact coil design compared to conventional cascade systems. The parallel refrigeration system features dual cooling compressors, ensuring rapid temperature pull-down and quick recovery after door openings. In the event that one compressor fails, the other can continue operating to maintain the temperature at -70°C, effectively preserving the samples until a service engineer arrives.
Model | SMI-165CD-1007 |
Cabinet type | Upright |
Capacity(L) | 1007 |
Internal size(W X D X H)mm | 1022 X 696 X 1378 |
External size(W X D X H)mm | 1362 X 1025 X 1994 |
Package size(W X D X H)mm | 1473 X 1155 X 2176 |
NW/GW(Kgs) | 426/510(wood packing) |
Temperature range | -40 to -86℃ |
Ambient temperature | 16-32℃ |
Cooling performance | -86℃ |
Climate class | N |
Controller | Microprocessor |
Display | Touch screen |
Compressor | 2 Nos. |
Cooling method | Direct cooling |
Defrost mode | Manual |
Refrigerant | HC |
Insulation thickness(mm) | L/R:130,B:120 |
External material | Cold rolled steel |
Inner material | Stainless steel |
Shelves | 3(stainless steel) |
Door lock with key | Yes |
External lock | Yes |
Access port | 3pcs. Ø 25 mm |
Casters | 4+(2 leveling feet) |
Data logging/Interval/Memory capacity | USB/Record every 5 minutes / 10 years |
Backup battery | Yes |
Temperature | High/Low temperature, High ambient temperature |
Electrical | Power failure, Low battery |
System | Sensor error, Main board communication error, Condenser overheating alarm ,Door ajar, System failure |
Standard | RS485,Remote alarm contact |
Optional | Chart recorder,CO2 backup system |
