S.M. Scientific Instruments (P) LTD

Deep Freezer -86deg C (Single Compressor) Vertical SMI-165EX

Home ≫Ultra Low Temp.>Deep Freezer -86deg C (Single Compressor) Vertical SMI-165EX

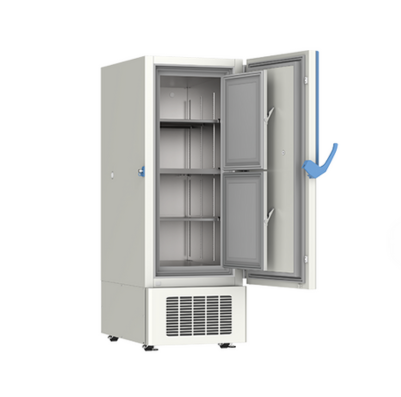

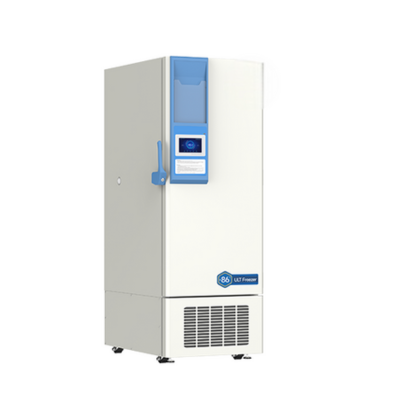

Deep Freezer -86deg C (Single Compressor) Vertical SMI-165EX

CLICK TO SCAN

Description

Jindal Ultra low temperature Deep Freezer is used for low temperature scientific experiments, preservation of red blood cells, white blood cells, skin, DNA/RNA, bone, bacteria, semen, biomedical products, ocean products, electronic devices, and low-temperature testing of special materials. It is suitable for blood banks, hospitals, sanitation and anti – epidemic stations, electronic industries, university laboratories, and military industries.

Control System

  • Temperature control range between -400C and -860C that is user adjustable .
  • Temperature control is precise to 1°C.
  • Along with a digital temperature display, it has a keyboard lock and a password protected menu.
  • Configuration page for ease of operation .
  • The freezer has a delayed start and safe stop interval between restart and being terminated.
  • Equipped with audio and video alarms, such as: High or Low Temperature alarm, Power Failure alarm, Low Battery alarm, Door Open alarm, Filter Blocking alarm and System Failure alarm.



Structural Design

  • Stainless steel interior, powder coated GI steel panel exterior along with four casters for easy handling.
  • The front opening lockable door comes with a handle for easy accessibility as well as a vacuum release port.
  • Adjustable stainless-steel shelves with inner insulation doors and double silicon gasket seal.
  • Two-times foaming technology with 120mm foaming insulation as well as a VIP insulation board.
  • Comes with USB storage functions.
  • Optional additions include: chart recorder, CO2 back-up system, storage racks/boxes and remote alarm system.

Refrigeration System

  • It is fitted with a popular imported compressor.
  • Makes less noise and has reduced power consumption.
  • Uses a technology of mixture refrigerant.

Control System

Technical Data

Model
Capacity (Ltr)
Input Power
External Size (WxDxH) mm
Internal Size (WxDxH) mm
Net Weight
Racks (5X5)
Max Vials (5X5)
SMI-165EX-100
100
850W
1066x742x820
450x439x514
145Kg
-
5460
SMI-165EX-200
200
950W
840x940x1552
470x570x767
205Kg
6
12000
SMI-165EX-350
350
980W
842x989x2023
510x590x1254
245Kg
12
30000
SMI-165EX-500
500
1050W
842x989x2023
662x600x1344
298Kg
16
40000
SMI-165EX-650
650
1300W
1090x1025x1955
750x696x1286
330Kg
20
50000
SMI-165EX-750
750
1400W
1205x1025x1955
865x696x1286
380Kg
24
60000
SMI-165EX-800
800
1550W
1217x1025x2005
877x696x1378
390Kg
24
69000
SMI-165EX-1000
1000
1900W
1362x1025x2002
1022x696x1378
430Kg
28
80500

Product Brochure

Product Brochure Link here

Featured Video
