Jindal horizontal ultra-low temperature freezer is used for low temperature scientific experiments, preservation of red blood cells, white blood cells, skin, DNA/RNA, bone, bacteria, semen, biomedical products, ocean products, electronic devices, and low-temperature testing of special materials. It is suitable for blood banks, hospitals, sanitation and anti – epidemic stations, electronic industries, university laboratories, and military industries.

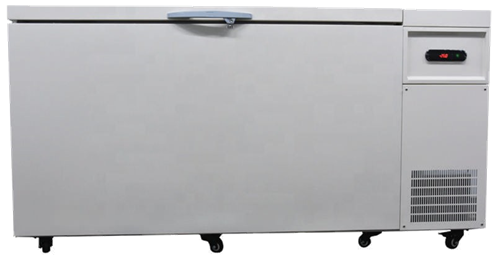

The Freezer consist horizontal chamber with top loading construction. External body is made of tough powder coated steel finish on cold rolled plate to ensure anti-corrosion and anti-bacterial coating. Inner chamber is made of durable stainless steel 304 grade material. The Freezer body gap is insulated with CFC-free PUF for efficient cooling and prevent of thermal losses. The Freezer has heavy-duty lockable castors and lockable outer doors and lids. The Freezer has Freezer has washable condenser filter indication which keep fins free of dust to maintain peak cooling efficiency. The Freezer is insulated with high density polyurethane foam vacuum panel insulation in conjunction with Environmentally-Friendly Water Blown foam nanogel VIP panels which help in preventing the loss of temperature, thermal protection and structural strength. The Freezer has on board diagnostic software to report failures to service personnel.
Freezer has silicon door seal with double gasket for less loss of cold air during opening and closing of doors. These compressor are designed to run at a large voltage band of 190-270V Single Phase AC Supply.
The instrument is designed to operate on 220-240V, 50Hz single phase AC power supply. The Freezer is supply with power cord with Indian grade plug top (Model with 110V also available).
Model | Capacity (Ltr) | Input Power | External Size (W X D X H) mm | Internal Size (W X D X H) mm | Net Weight | Racks (5×5) | Max Vials (5×5) |
SMI-165HEJ – 120 | 120 | 860W | 1320 X 890 X 1009 | 490 X 470 X 570 | 205 Kg | 9 | 9000 |
SMI-165HEJ – 300 | 300 | 1050W | 2005 X 890 X 1009 | 1200 X 470 X 570 | 280 Kg | 24 | 14000 |
SMI-165HEJ – 400 | 400 | 1400W | 1550 X 890 X 1009 | 1000 X 800 X 600 | 296 Kg | 30 | 30000 |
SMI-165HEJ – 600 | 600 | 2100W | 2070 X 945 X 1090 | 1200 X 815 X 610 | 330 Kg | 40 | 40000 |
