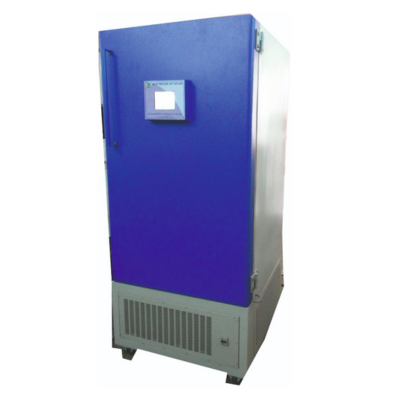

Deep Freezer -86°C (Dual Compressor) Vertical SMI-165EJ



Jindal Ultra Low Temperature Freezers are ideally suited for use in laboratories and hospitals for long-term preservation & storage of various samples, sensitive stem cells, plasma, semen, virus, bone graft and other biological samples. The outer body is made of galvanized steel sheet with powder coated finished and vacuumed polyurethane foam panels and inner chamber and shelves are made of Stainless Steel (304G) sheet. Freezer has 4 nos. of inner individual compartment with polystyrene insulated inner doors. Freezer has silicon door seal with double gasket for less loss of cold air during opening and closing of doors. Freezer door latch allow one hand opening & closing.
Door is fitted with heavy duty handle include door key lock as well as padlock provision for added surety and sealed with multiple layers rubber gasket to avoid temperature leakage for sample security. Exterior illumination of freezer ensure for long term viability and enhanced temperature uniformity is +3°C. The complete body is mounted on heavy duty lockable castor wheels for easy movement. Freezer has 100mm ground clearance.

The Freezer is insulated with high density polyurethane foam vacuum panel insulation in conjunction with Environmentally-Friendly Water Blown Foam nanogel VIP panels which help in preventing the loss of temperature, thermal protection and structural strength. Enhanced acoustic insulation helps to reduce compressor sound. The down-feed coil evaporator for efficient refrigerant flow and air-cooled condenser filter to maintain low peak protects samples. Freezer has rotary air circulation to maintain temperature uniformity. Freezer has frost free management with adjustable cabinet heater. The filter also is washable for economy and do-it-yourself maintenance with indicator light. Freezer has pressure sensitive mechanisms to protect the compressor in long run. The freezer system is H-Drive Information Center (HIC) with adaptive control is designed to detect high and low usage patterns, adjust compressor speeds, and reduce energy without compromising protection. Freezer has connected common main duct for throw hot air out of room.

All models use specially designed cascade refrigeration for energy efficiency direct cooling system with dual high efficiency Hermetic sealed compressors with automatically regulate according to the freezer for ultra-low temperature applications. These 1Hp compressors are designed to run at a large voltage band of 190-270V Single Phase AC Supply. A highly efficient cascade refrigeration cycle helps in attaining the required temperature within a short time period. The combination of efficient technology and construction brings the added benefit of considerable energy savings.

Salient Points

  • Vertical Cabinet
  • Dual Compressor
  • Noise Level 52db
  • Built-in USB data logger
  • Door Open Recovery: 12 minutes
  • External door has locking facility
  • Hold over time ambient temperature: 2 hours
  • Freezer functional at lab temperature (25-32 °C)
  • 3 Nos. of corrosion resistant racks
  • Energy Consumption: 9.5kwh/day at set point -80℃
  • CFC-free, HCFC-free nonflammable refrigerants
  • Stainless steel side access rack for cryo-box (6 nos.) and 81 placed PP cryo boxes (20 nos.)
  • Holding racks (according to your requirement)
  • Heat emission is 2000 (Btu/hr)
  • Warm up time (from -80°C to -50°C): 4.5 hrs.

Fully Automatic Microprocessor based control (Eye level touch screen display)

A multi-functional, fuzzy supported process controller which ensures accurate setting. Freezer has microprocessor based controlled programmable LED display for display set temperature, current temperature and voltage. The temperature is adjustable -50°C to -86°C with +1°C temperature accuracy. Freezer able to maintain a temperature of -86°C to -50°C for more than three hours in the event of electricity failure. A rechargeable inbuilt battery backup battery for temperature display & display security lock. Freezer has audio-visual alarm system for deviations in temperature, Power failure, System failure and integrated battery powered backup to take over the alarm function. The Freezer has temperature record and events for the lifetime of the freezer. Freezer has RS-485/ USB port to download event log and freezer setting. Freezer control panel display main switch, thermometer, temperature selection control. Freezer has record door open and log time the door open and closed.

Freezer has removable heat exchanger with all other relevant components of the cooling system is maintained and replaceable. Freezer has RS485 output, dry contacts and 4- 0mA output for remote monitoring purposes. Freezer has protection from accidental setting of control panel. The Freezer consist mean Kinetic Temperature able to be calculated for any days & alarm deviation report on report, Reports in graphical and tabular form.

The instrument is designed to operate on 220-240V, 50Hz single phase AC power supply. The Freezer is supply with power cord with Indian grade plug top (Model with 110V also available).


  • 100Ltrs.
  • 150Ltrs.
  • 300Ltrs.
  • 420Ltrs.
  • 500Ltrs.
  • 600Ltrs.
  • 710Ltrs.
  • 840Ltrs.
  • 900Ltrs.
  • 1000Ltrs.

Optional Accessories

  • Cryo-Gloves & Ice Scraper
  • CO2/Liquid Nitrogen Cylinder
