Home ≫Ultra Low Temp. >Deep Freezer – 86°C > Assorted Deep Freezer — 86°C > Deep Freezer – 86°C (Dual Compressor) Upright SMI-165EJ-600
CLICK TO SCAN
Jindal Ultra Low Temperature Freezers used for storage of various samples, sensitive stem cells, plasma , semen , virus, bone graft and other biological samples. The outer body is made of galvanized steel sheet with epoxy paint. Inner chamber is made of stainless steel of 304 grade material. Freezer has 3 nos. of inner storage compartments with insulated doors and adjustable height and doors are magnet-free and removable without tools for easy cleaning. Freezer door has triple silicon section seal with pressing lock door to prevent temperature loss. Freezer door latch allow one hand opening & closing. Door is fitted with heavy duty handle include door key lock as well as padlock provision for added security and sealed with multiple layers rubber gasket to avoid temperature leakage for sample security. Exterior illumination of freezer ensures for long term viability and enhanced temperature uniformity ±3°C. The Freezer has castor wheels & leveling adjustor for adjustment and installation. Freezer has 100 mm ground clearance.
The Freezer insulated with vacuum polyurethane foam panel insulation in conjunction with Environmentally-Friendly Water Blown Foam nanogel VIP panels which help in preventing the loss of temperature, thermal protection and structural strength. Enhanced acoustic insulation helps to reduce compressor sound. The down-feed coil evaporator for efficient refrigerant flow and air-cooled condenser filter to maintain low peak protects samples. Freezer has frost management with adjustable cabinet heater. The Freezer has washable condenser filter indicator which keep fins free of dust to maintain peak cooling efficiency. Freezer has pressure sensitive mechanisms to protect the compressor in long run. The freezer system is H-Drive Information Center (HIC) with adaptive control is designed to detect high and low usage patterns, adjust compressor speeds, and reduce energy without compromising protection.

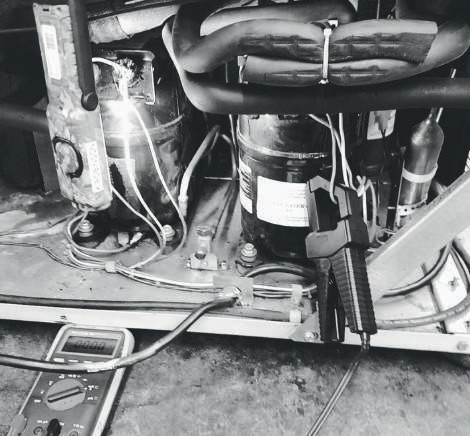

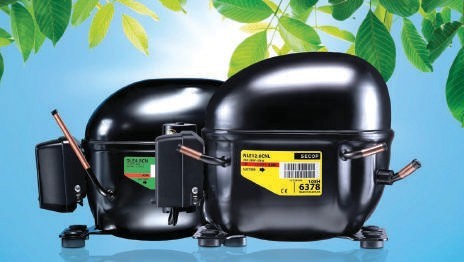

All models use specially designed cascade cooling system for energy efficiency direct cooling system with dual high energy efficiency hermetically sealed compressors with automatically regulate according to the freezer for ultra-low temperature applications. These 1Hp compressors are designed to run at a large voltage band of 190-270V Single Phase AC Supply. A highly efficient cascade refrigeration system cycle helps in attaining the required temperature within a short time period. The Freezer has availability of decompression valve facility to lower air pressure inside freezer for easy door opening.
Fully Automatic Microprocessor based control (Eye level touch screen display)
A multi-functional, fuzzy supported process controller which ensures accurate setting. Freezer has fully programmable microprocessor controlled with membrane keypad and eye level control panel. The Freezer temperature range -55°C to -80°C. An inbuilt battery backup for the display and security lock for the display. Freezer has audio-visual alarm for fault acknowledgement, low & high temperature, condenser fault, remote contact, open door, clean filter Indicator and power failure. Freezer has touch-screen user interface with easy-to-use set-up wizard, event log, temperature mapping and data downloads by an inbuilt USB port.
Freezer has removable heat exchanger with all other relevant components of the cooling system is maintained and replaceable. Freezer has RS485 output, dry contacts and 4-20mA output for remote monitoring purposes. Freezer has protection from accidental setting of control panel. The Freezer consist mean Kinetic Temperature able to be calculated for any days & alarm deviation report on report, Reports in graphical and tabular form.
The instrument is designed to operate on 220-240V, 50Hz single phase AC power supply. The Freezer is supply with power cord with Indian grade plug top (Model with 110V also available).
