Home ≫Ultra Low Temp.>Deep Freezer -86°C (Automatic Cascade System) SMI-165ACS
CLICK TO SCAN

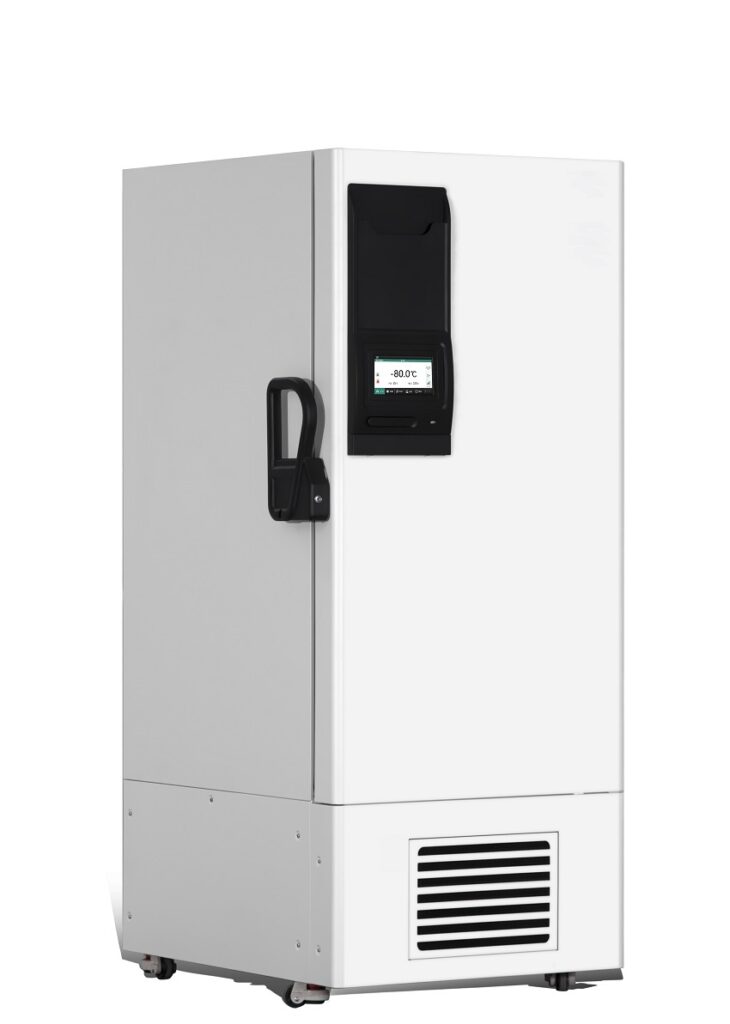

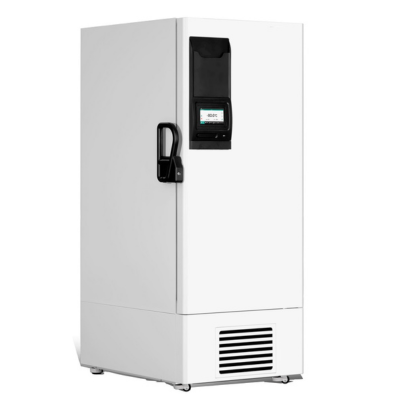

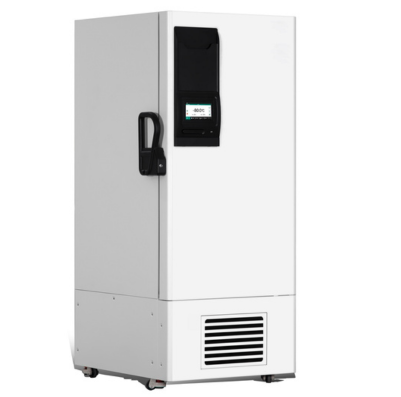

Deep Freezer -86°C (Automatic Cascade System) is specially designed and manufactured for long term storage of various biological products . The ultra freezer with professional control system design to achieve balanced operation of cascade refrigeration system.
The ultra-low temperature freezer adopts the unique secondary foaming technology, and the ultra-thick VIP insulation layer greatly improves the insulation effect; the VIP vacuum insulation board tightly locks the cold air to ensure the insulation effect.
high and low temperature alarm, power failure alarm, high and low voltage alarm, sensor failure alarm, low battery alarm, condenser heat dissipation alarm, system failure alarm, etc, to ensure the safety of stored samples. Start-up delay and shutdown interval protection functions ensure reliable operation.
CFC Ultra-low power consumption, down to less than 10kWh/day, ensuring a world leading environmentally friendly performance.
Big LED Display is good for people who can control this ultra low freezer ,and also monitor all data during the running .
|
Temperature Range
|
-40℃~-86℃
|
|---|---|
|
Capacity
|
180L,340L,408L,588L,728L,838L
|
|
Cooling Type
|
Direct Cooling
|
|
Display
|
LED Display
|
|
Temp. Controller
|
Microprocessor
|
|
Ambient Temperature
|
10℃~32℃
|
|
Power Supply
|
220V/50Hz or 110V/60Hz
|
|
Model
|
Shelf/Drawer QTY
|
Capacity（L/cu.ft)
|
Measurement(W*D*H)(mm)
|
Insulation
|
Racks
|
Boxes (2 Inches)
|
Samples Loading QTY(2ml)
|
|---|---|---|---|---|---|---|---|
|
SMI-165ACS-180E
|
Stainless steel shelf/2
|
188/6.63
|
850*930*1595
|
PURF
|
9(4X3)
|
108
|
10800
|
|
SMI-165ACS-340E
|
Stainless steel shelf/3
|
340/12
|
875*980*1900
|
PURF
|
12(4X4)
|
192
|
19200
|
|
SMI-165ACS-408E
|
Stainless steel shelf/3
|
408/14.40
|
890*930*1945
|
PURF
|
16(5X4,4X4)
|
288
|
28800
|
|
SMI-165ACS-588E
|
Stainless steel shelf/3
|
588/20.76
|
880*1090*1995
|
VIP plus PURF
|
16(5X5)
|
400
|
40000
|
|
SMI-165ACS-728E
|
Stainless steel shelf/3
|
728/25.7
|
1229*1012*1994.5
|
VIP plus PURF
|
24(5*4/6*4)
|
504
|
50400
|
|
SMI-165ACS-838E
|
Stainless steel shelf/3
|
838/29.59
|
1175*1075*1990
|
VIP plus PURF
|
24(5X5)
|
600
|
60000
|
Product Brochure Link here
