S.M. Scientific Instruments (P) LTD

Deep Freezer -164℃ SMI-165DF-127

Home ≫Ultra Low Temp.>Deep Freezer -164℃ SMI-165DF-127

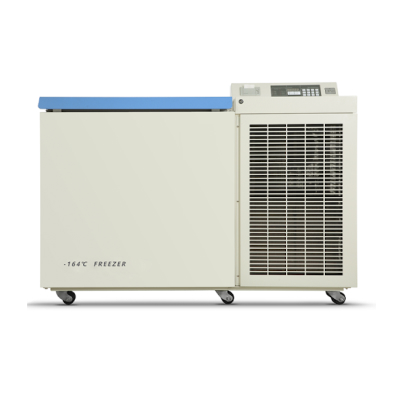

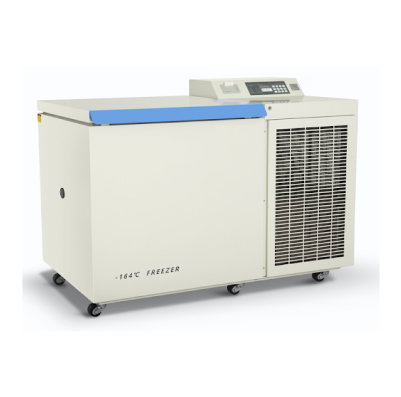

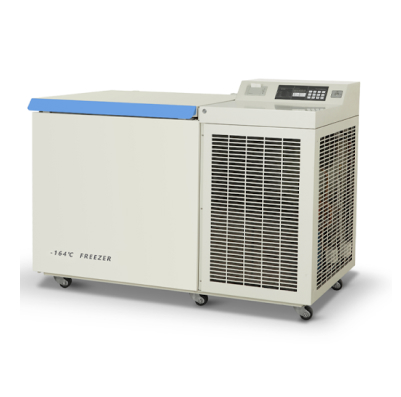

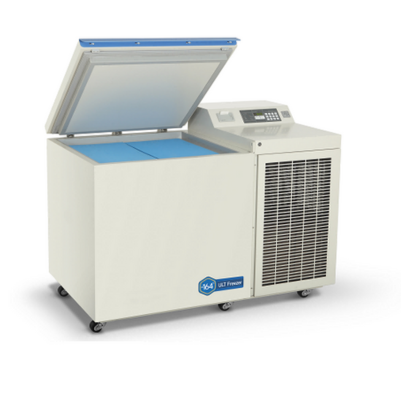

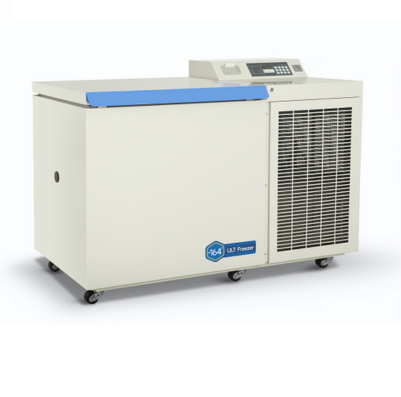

Deep Freezer -164℃ SMI-165DF-127

CLICK TO SCAN

Description

  • Unique, high-efficient and recycling cooling system
  • Superior leader in extremely low temperature
  • VIP vacuum three-dimensional thermal insulation
  • Single-pole lubrication compressor refrigeration technology
  • High-precision temperature control system

Jindal Deep Freezer -164℃ SMI-165DF-127 has a unique, high-efficient and recycling cooling system, a winner of second prize in the National Technology and Invention Award. The company became the superior leader in the same industry that can produce equipment with the lowest temperature to -164℃ for mass production.

Targeted Refrigeration

Unique, high-efficient and recycling cooling system, a winner of second prize in National Technology and Invention Award.

Extremely Low Temperature

With SMI-165DF-127, the company became the superior leader in the same industry that can produce equipment with the lowest temperature to -164℃ for mass production.

Three-dimensional Thermal Insulation

The VIP vacuum thermal insulation plate can lock cool air inside the cabinet and guarantee thermal insulation effect.

Refrigeration System

The single-pole lubrication compressor refrigeration technology has improved refrigeration capacity; International famous brand compressor, enabling fast refrigeration.

High-precision Temperature Control System

The high-precision microcomputer temperature control system and platinum resistor temperature sensors enable users to set temperature inside the cabinet within a range from -120 to -164℃, digital temperature display, the running status is clearly displayed.

Features

  • The well-developed security system with multiple audible & visual alarm functions: high/ low temperature alarm, power failure alarm, high/low voltage alarm, sensor failure alarm, low battery alarm, condenser heat dissipation alarm, system failure alarm etc. to ensure the storage sample safety.
  • The turn-on delay and stopping interval protection function can ensure reliable operation.
  • The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission.
  • Unique secondary foaming technology, super thick VIP insulation which greatly improves the insulation effect; VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect.
  • Optional single type upright racks , optional alarm lamp, voltage compensation, remote alarm and liquid N2 backup system.
Scope of Application

Application to scientific research, low temperature test of special materials, freeze  skins, DNA/RNA, bones, bacteria, sperm and biological products etc. Suitable for use in  hospitals, sanitation and anti-epidemic stations, biological engineering, laboratories in colleges & universities, military enterprises and so on.

Specifications

Model
SMI-165DF-127
Cabinet Type
Chest
Capacity(L)
127

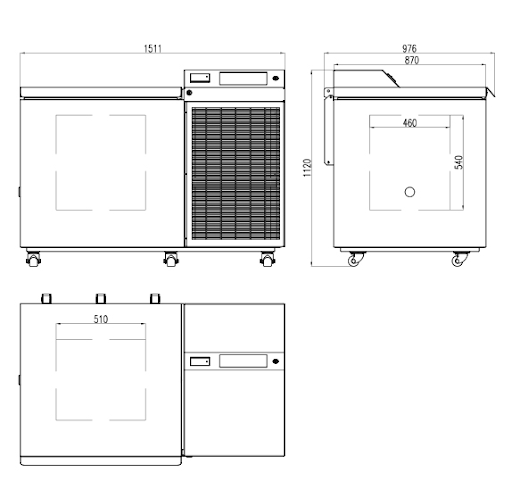

Internal Size(W*D*H)mm
510*460*540
External Size(W*D*H)mm
1665*1000*1115
Package Size(W*D*H)mm
1815*1085*1304
NW(Kg)
380/445
Performance
Temperature Range
120~-164℃
Ambient Temperature
16-32℃
Cooling Performance
-164℃
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
1pc
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
Mixture Gas
Insulation Thickness(mm)
205
Construction
External Material
High quality Steel plates with spraying
Inner Material
304 Stainless Steel
Foaming Lid
2
Access Port
1pcs. Ø 40 mm
Backup Battery
Yes
Data logging/Interval/Recording time
Print/Record every 20 minute / 7 days
Casters
6
Alarm
Temperature
High/Low temperature,High ambient temperature
Electrical
Power failure, Low battery
System
Sensor failure, Condenser overheating ,Door ajar,Built-in USB datalogger failure, Communication error
Accessory
Options
Chart recorder, CO2 backup system
