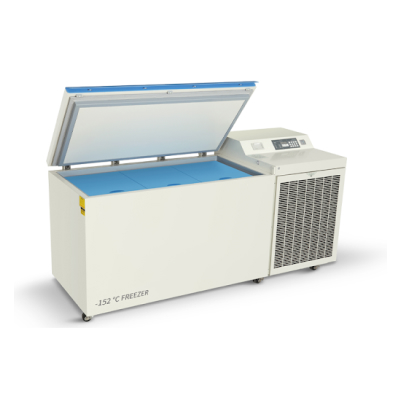

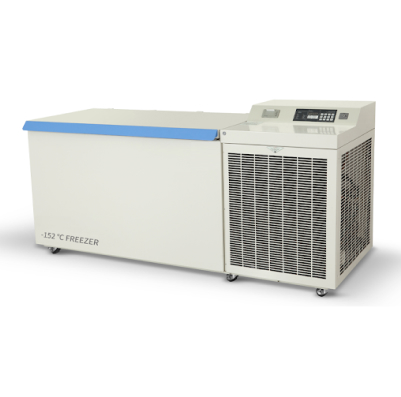

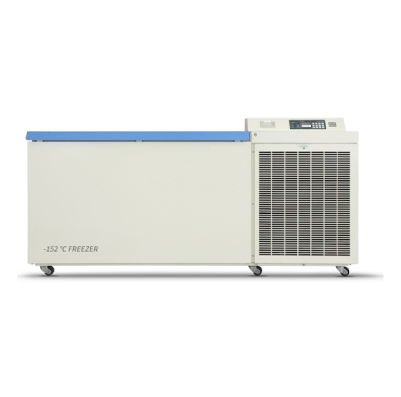

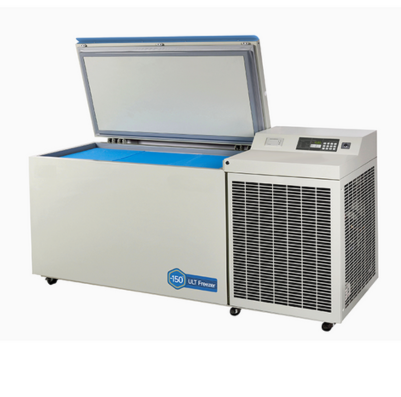

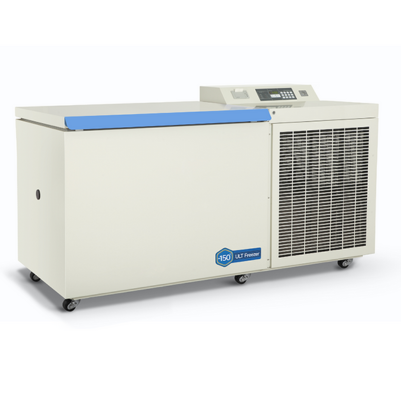

Deep Freezer - 150°C SMI-165E2

Home ≫Ultra Low Temp.>Deep Freezer – 150°C SMI-165E2



Deep Freezer - 150°C SMI-165E2

CLICK TO SCAN

Description

  • Targeted refrigeration with high-efficient cooling system
  • High-precision temperature control system
  • Well-developed audible and visual security system
  • VIP vacuum three-dimensional thermal insulation
  • Single-pole lubrication compressor refrigeration technology
  •

Jindal Deep Freezer – 150°C SMI-165E2 has a Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention. SMI-165E2, the company becomes the superior leader in the same industry that can produce the lowest temperature to -150℃ and can mass produce the products.

Features

  • Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention.
  • The turn-on delay and stopping interval protection function can ensure reliable operation.
  • The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission
  • Unique two times foaming technology, super thick VIP insulation which greatly improves the insulation effect; VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect.
  • Optional single type upright racks Optional alarm lamp, voltage compensation, remote alarm and liquid N2 backup system.
  • Chest type with lid to be opened from the top, assisting balanced hinges to make it easy Casters can be fixed for easy movement and fixation.

Specifications

Model
SMI-165E2
Capacity(L)
257
Internal Size(W*D*H)mm
1140*410*552
External Size(W*D*H)mm
2250*940*1120
Package Size(W*D*H)mm
399*1084*1299
NW(Kg)
435/510
Performance
Temperature Range
-110~-150℃
Ambient Temperature
16-32℃
Cooling Performance
-145℃
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
1pc
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
Mixture Gas
Insulation Thickness(mm)
185
Construction
External Material
High quality Steel plates with spraying
Inner Material
304 Stainless Steel
Foaming Lid
3
Door lock with key
Yes
Access Port
1pcs. Ø 40 mm
Backup Battery
Yes
Data logging/Interval/Recording time
Print/Record every 20 minute / 7 days
Casters
6
Alarm
Temperature
High/Low temperature,High ambient temperature
Electrical
Power failure, Low battery
System
Sensor failure, Condenser overheating ,Door ajar,Built-in USB datalogger failure, Communication error
Accessory
Options
Chart recorder, CO2 backup system
