Home ≫Ultra Low Temp. >Deep Freezer -150°C >Deep Freezer -150°C SMI-165E2
CLICK TO SCAN

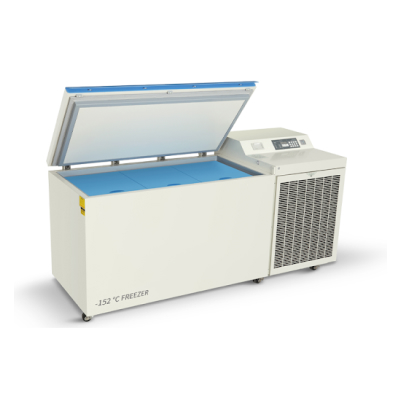

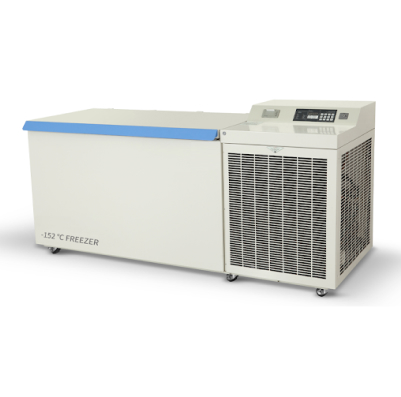

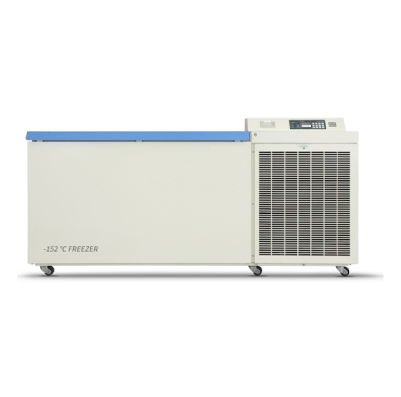

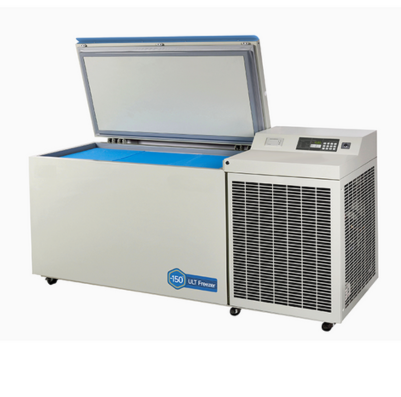

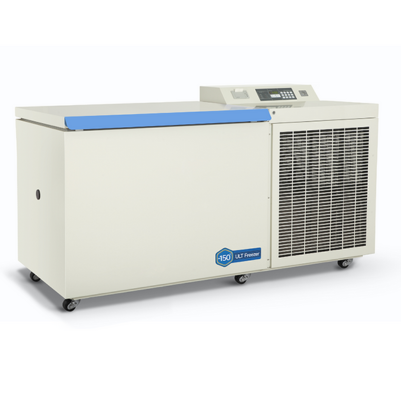

The Jindal Deep Freezer – 150°C SMI-165E2 features a unique, high-efficiency, and recyclable cooling system. The SMI-165E2, the company has become the industry leader, capable of producing temperatures as low as -150°C and mass-producing the products.
The company has become the leading industry player, capable of producing temperatures as low as -150°C and mass-producing the products.
The VIP vacuum thermal insulation board effectively locks cold air inside the cabinet, ensuring excellent thermal insulation.
The single-pole lubrication compressor refrigeration technology enhances refrigeration capacity, while the internationally renowned brand compressor enables fast cooling.
The high-precision microcomputer temperature control system and platinum resistor temperature sensors allow users to set the temperature inside the cabinet within a range of -110°C to -150°C. The digital temperature display clearly shows the running status.
The well-developed security system features multiple audible and visual alarm functions, including high/low temperature alarms, power failure alarms, high/low voltage alarms, sensor failure alarms, low battery alarms, condenser heat dissipation alarms, and system failure alarms, ensuring the safety of stored samples.
Model No. | SMI-165E2 |
Capacity(L) | 257 |
Internal size(W X D X H)mm | 1140 X 410 X 552 |
External size(W X D X H)mm | 2250 X 940 X 1120 |
Package size(W X D X H)mm | 2399 X 1084 X 1299 |
NW/GW(Kgs) | 435/510 |
Temperature range | -110 to -150℃ |
Ambient temperature | 16-32℃ |
Cooling performance | -145℃ |
Climate class | N |
Controller | Microprocessor |
Display | Digital display |
Compressor | 1 Nos. |
Cooling method | Direct cooling |
Defrost mode | Manual |
Refrigerant | Mixture gas |
Insulation thickness(mm) | 185 |
External material | High quality steel plates with spraying |
Inner material | 304Stainless steel |
Foaming lid | 3 |
Door lock with key | Yes |
Backup battery | Yes |
Access port | 1pcs. Ø 40 mm |
Casters | 6 |
Data logging/Interval/Memory capacity | Printer/Record every 20 minute /100,000data |
Temperature | High/Low temperature, High ambient temperature |
Electrical | Power failure , Low battery |
System | Sensor error, System failure, Condenser overheating, main board communication failure |
| Accessory | CO2 backup system |
Product Brochure Link here
