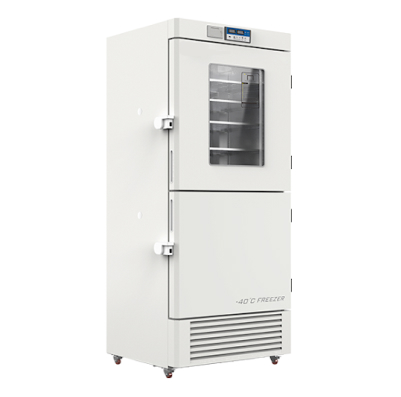

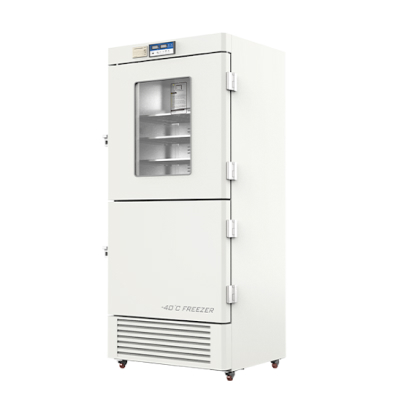

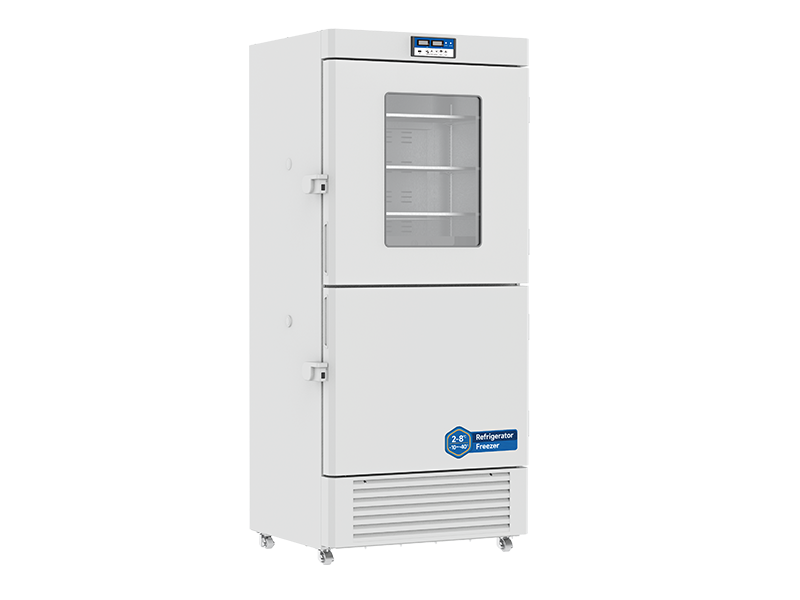

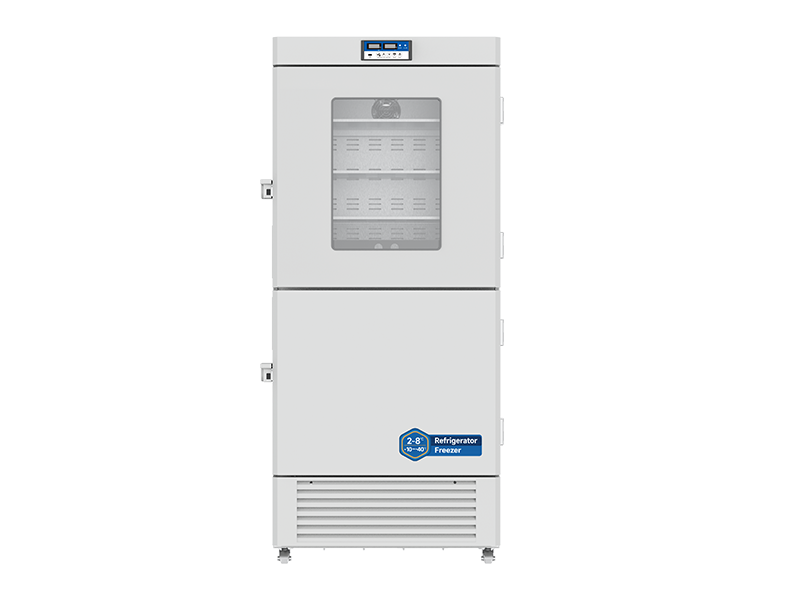

Combined Refrigerator and Freezer SMI-165FCR-FL518

CLICK TO SCAN

Description

The Jindal 2℃ to 8℃ / -10℃ to 40℃ combination refrigerator-freezer SMI-165FCR-FL518 is engineered for professional use, offering independent temperature control for both refrigeration and freezing compartments. Equipped with two high-efficiency compressors, it enables precise, separate management of the upper refrigeration chamber and the lower freezer chamber. Utilizing a Freon-free, environmentally friendly refrigeration system, the unit delivers energy-efficient and sustainable performance. Enhanced thermal insulation, featuring CFC-free polyurethane foam and a thicker insulation layer, ensures excellent temperature stability. The advanced computerized temperature control system allows precise adjustment, with the upper chamber configurable between 2℃ and 8℃, and the lower chamber between -10℃ and -40℃. Purpose-built for laboratory and medical environments, the Jindal SMI-165FCR-FL518 provides reliable storage for reagents and other temperature-sensitive materials.

Advanced Digital Temperature Control System

The digital temperature and humidity are displayed independently, allowing the operating status to be clearly viewed and monitored. Users can freely set high and low temperature alarm points on the medical-grade refrigerator-freezer according to their specific requirements. The upper temperature can be adjusted within a range of 2℃ to 8℃, while the lower temperature can be set between -10℃ and -40℃.

Advance Cooling Technology

This commercial refrigerator-freezer is equipped with a CFC-free refrigerant and a high-efficiency compressor, ensuring rapid cooling, energy savings, and reliable performance. It features two compressors for independent control of the upper refrigeration chamber and the lower freezing chamber. With CFC-free polyurethane foam insulation and a thicker insulation layer, it provides excellent thermal insulation.

Advanced Protection System

This medical refrigerator-freezer is equipped with eight types of audible and visual alarm functions, including high/low temperature alarm, high ambient temperature alarm, sensor failure alarm, low battery alarm, communication failure alarm, USB data download failure alarm, door ajar alarm, and power failure alarm to ensuring safer and more reliable sample storage.

Features

  • Combined refrigerator and freezer with an upper temperature range of 2°C to -8°C and a lower range of -10°C to -40°C.
  • Features electronic temperature control for high-precision and consistent temperature regulation.
  • Utilizes a dual cooling system: fan-assisted cooling in the upper chamber and direct cooling in the lower chamber.
  • Equipped with two compressors for independent control of the upper refrigeration chamber and the lower freezing chamber.
  • A digital temperature display allows for precise temperature control and clear monitoring of the operating status.

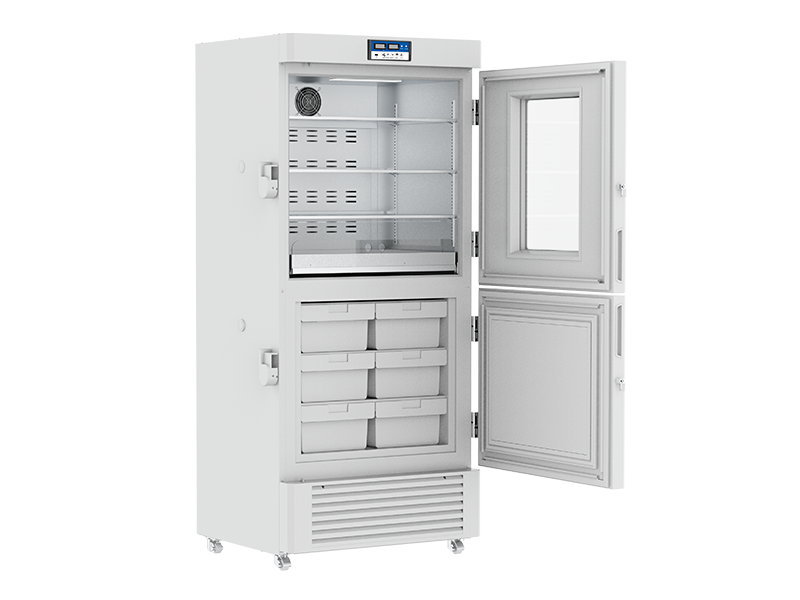

  • Constructed with a stainless steel interior and three-layer stainless steel clapboards.
  • Includes sheet metal refrigerated drawers and acrylic plates for organized storage.
  • Features inter-chamber independent door locks and an external padlock for secure sample storage.
  • Electric heating and LOW-E double-glazed glass provide excellent anti-condensation performance.
  • LED lighting inside the cabinet ensures clear visibility and easy operation.
  • Comes standard with a built-in USB datalogger for accurate temperature data recording.
  • The freezer compartment includes three-layer ABS drawers.
  • Equipped with four universal wheels and two front and rear casters with brakes for easy mobility and placement.

Technical Data:



Model

SMI-165FCR-FL518

Cabinet Type

Upright

Capacity (L)

519, R:323, F:196

Internal Size (W X D X H)mm

R:750 X 610 X 740,F:650 X 560 X 565

External Size(W X D X H)mm

910 X 740 X 1972

Package Size(W X D X H)mm

990 X 855 X 2140

NW/GW(Kgs)

186/215

Temperature Range

R:2 to 8, F:-10 to -40

Ambient Temperature

16-32℃

Cooling Performance

R:5, F:-40

Climate Class

N

Controller

Microprocessor

Display

Digital display

Compressor

2 Nos.

Cooling Method

R: Forced air cooling, F:Direct cooling

Defrost Mode

R:Automatic, F:Manual

Refrigerant

R:R600a, F:290

Insulation Thickness(mm)

R:50, F:100

External Material

Cold rolled steel sheet

Inner Material

Stainless steel

Shelves

R:3+1(stainless steel), F:6(ABS)

External Lock

Yes

Lighting

LED

Access Port

2pcs. Ø 25 mm

Casters

4 (2 casters with brakes)

Data logging/Interval/Memory capacity

USB/Record every 10 minutes/1000,000data

Backup Battery

Yes

Door with heater

Yes

Temperature

High/Low temperature, High ambient temperature

Electrical

Power failure, Low battery

System

Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure

Standard

RS485,Remote alarm contact
