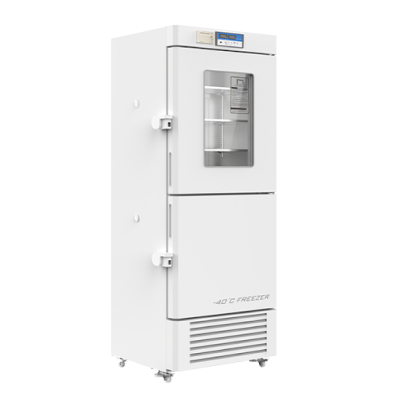

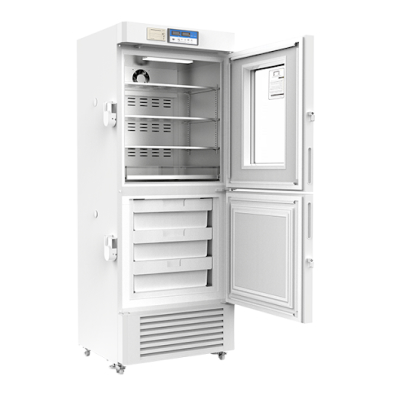

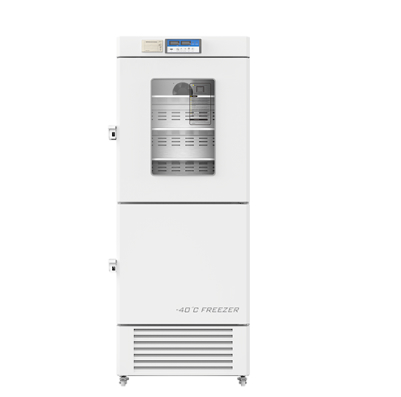

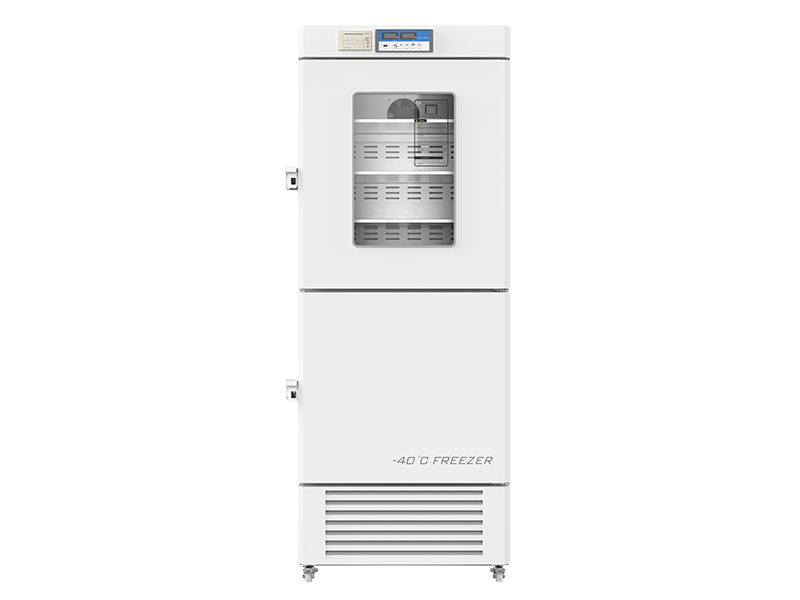

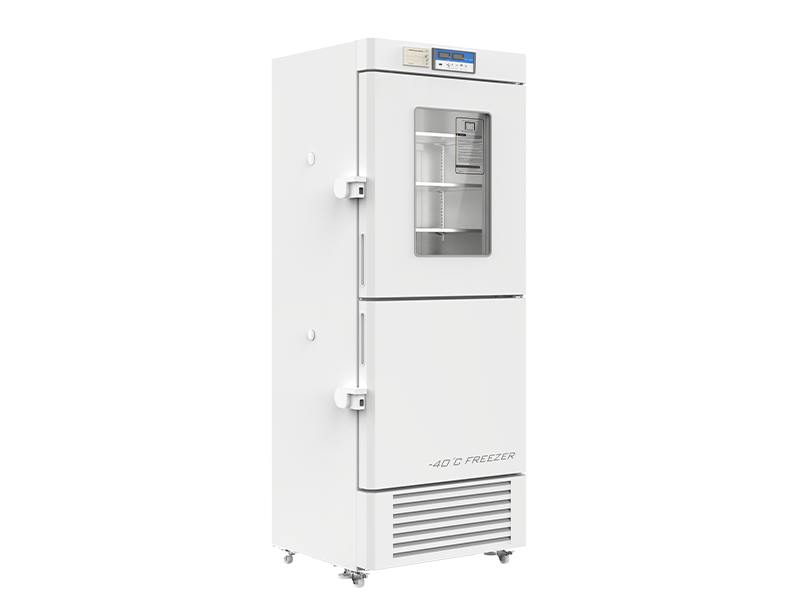

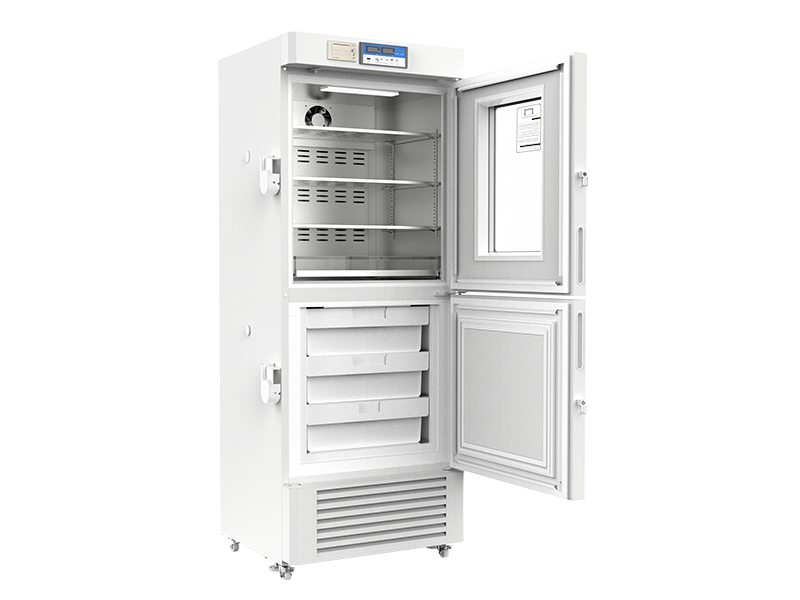

The Jindal scientific research-grade 2℃ to 8℃/-10℃ to -40℃ combination refrigerator-freezer SMI-165FCR-FL288 is designed with independent controls for refrigeration and freezing. It is equipped with two compressors, allowing separate regulation of the upper refrigeration chamber and the lower freezer chamber. This fridge-freezer combo utilizes Freon-free refrigeration, making it eco-friendly and energy-efficient. It also features enhanced thermal insulation with CFC-free polyurethane foam technology and a thicker insulation layer. The precise computerized temperature control enables you to set the upper temperature range from 2℃ to 8℃ and the lower range from -10℃ to -40℃. The Jindal 2℃ to 8℃/-10℃ to -40℃ Medical Refrigerator & Freezer SMI-165FCR-FL288 is specially crafted for storing reagents and other medical and laboratory materials.
This commercial refrigerator-freezer is equipped with CFC-free refrigerant and a high-efficiency compressor, ensuring rapid cooling, energy savings, and high efficiency. It features two compressors, allowing separate control of the upper refrigeration chamber and the lower freezing chamber. With CFC-free polyurethane foam technology and a thicker insulation layer, it provides excellent insulation performance.
The digital temperature and humidity are displayed independently, allowing the operating status to be easily viewed and monitored. You can freely set the high and low-temperature alarm points on the medical-grade refrigerator-freezer according to your needs. Additionally, the upper temperature can be set within a range of 2℃ to 8℃, and the lower temperature can be set within a range of -10℃ to -40℃.
This medical refrigerator and freezer is equipped with 8 types of audible and visual alarm functions, including high/low temperature alarms, high ambient temperature alarm, sensor failure alarm, low battery alarm, communication failure (USB) data download alarm, door ajar alarm, power failure alarm, and more, ensuring safer sample storage.
Model | SMI-165FCR-FL288 |
Cabinet Type | Upright |
Capacity (L） | 289, R:189, F:100 |
Internal Size (W X D X H)mm | R: 600 X 510 X 710，F: 500 X 460 X 505 |
External Size (W X D X H)mm | 700 X 640 X 1845 |
Package size(W X D X H)mm | 830 X 756 X 2004 |
NW/GW(Kgs) | 143/165 |
Temperature Range | R:2 to 8, F:-10 to -40 |
Ambient Temperature | 16-32℃ |
Cooling Performance | R:5, F:-40 |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Compressor | 2 Nos. |
Cooling Method | R: Forced air cooling, F:Direct cooling |
Defrost Mode | R:Automatic, F:Manual |
Refrigerant | R:R600a, F:R290 |
Insulation Thickness(mm) | B:50(R), 100(F) |
External Material | Cold rolled steel |
Inner Material | Stainless steel |
Shelves | R:3+1(Stainless steel),F:3(ABS) |
External Lock | Yes |
Access Port | 2pcs. Ø 25 mm |
Casters | 4 (2 casters with brakes) |
Data logging/Interval/Memory capacity | USB/Record every 10 minutes/1000,000data |
Door with heater | Yes |
Temperature | High/Low temperature, High ambient temperature |
Electrical | Power failure, Low battery |
System | Sensor failure , Door ajar, Built-in USB datalog failure, Communication failure |
Standard | RS485, Remote alarm contact |
Product Brochure Link here
