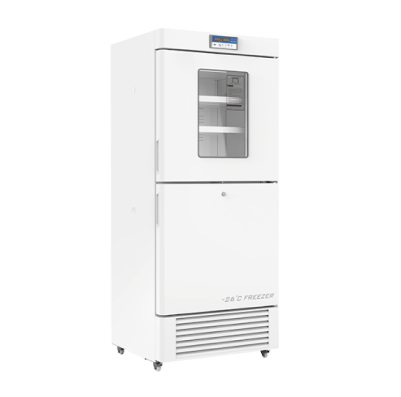

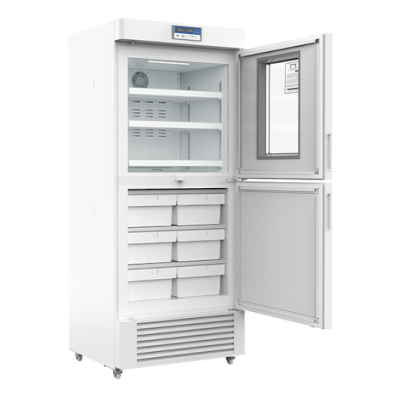

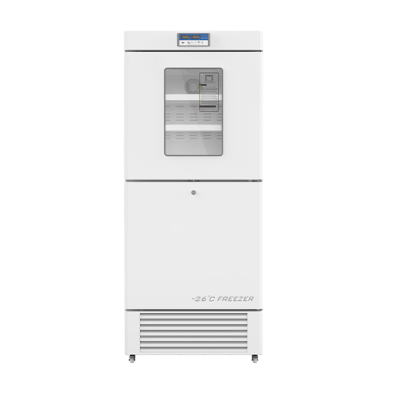

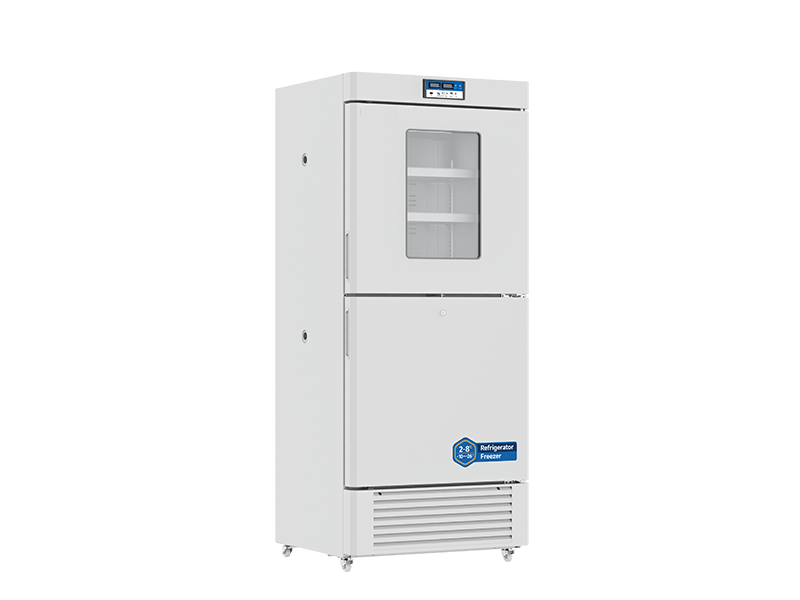

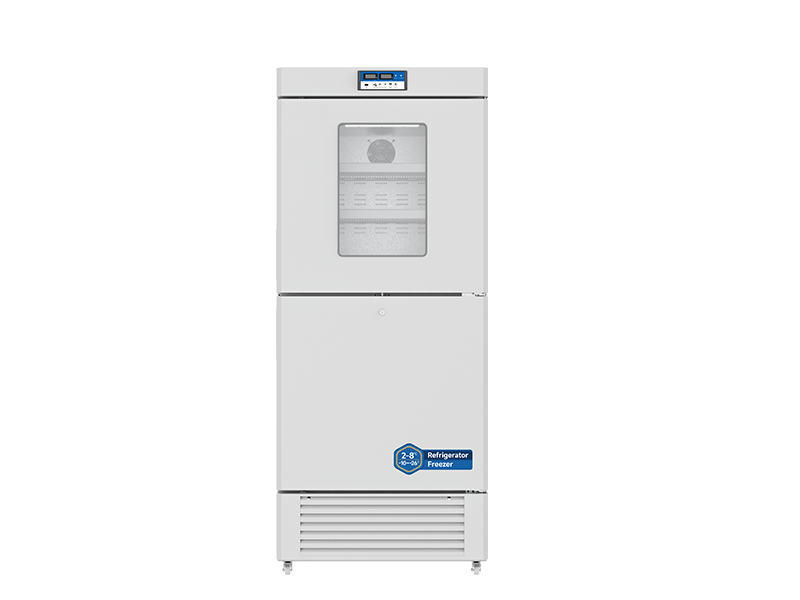

Combined Refrigerator and Freezer SMI-165FCR-EL450

Home ≫Ultra Low Temp.>Combined Refrigerator and Freezer SMI-165FCR-EL450

Combined Refrigerator and Freezer SMI-165FCR-EL450

CLICK TO SCAN

Description

  • High-precision Computerized Temperature Control System
  • High-efficiency Refrigerating System
  • Comprehensive Security System
  • Direct cooling and electronic temperature control
  • Tube-type condenser and built-in type evaporator

Jindal Combined Refrigerator and Freezer SMI-165FCR-EL450 works as a scientific refrigerator freezer and medical refrigerator and freezer, which comes with a brand new appearance. It is a fridge freezer with upper refrigeration and lower freezing separately controlled. This fridge freezer combo adopts high-efficiency 2 compressors and environmentally friendly refrigeration, which can ensure fast refrigeration and separately control of the upper refrigeration chamber and lower freezing chamber. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding your needs. We design the thermal insulation with a thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect.

Previous
Next
Enquire Now

High-precision Computerized Temperature Control System

The temperature control system of this combination refrigerator freezer can display the humidity and temperature independently. And you are able to check and view the operating status clearly on the display. This medical grade refrigerator freezer allows you to set the temperature freely with upper temperature in the range of 2℃~8℃ and lower temperature in a range of -10℃~-26℃.

High-efficiency Refrigerating System

This combination refrigerator freezer is equipped with high-efficiency compressors for the upper refrigeration chamber and lower freezing chamber. And the refrigerant is environmentally friendly, which can ensure energy-saving and high-efficiency. The CFC polyurethane foaming technology and thicker insulation layer can improve the effect of thermal insulation.

Comprehensive Security System

It is also a secure vaccine storage refrigerator freezer for the in-built 8 audible and visual alarm system, including high ambient temperature alarm, high\low temperature alarm, sensor failure alarm, communication failure ,(USB) data download failure alarm, low battery alarm, door ajar alarm, power off alarm, and data logging function not enabled alarm, which ensure safer sample storage.

Features

  • Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10℃~-26℃.
  • Direct cooling and electronic temperature control for fast refrigeration and constant temperature.
  • Separate control of upper refrigeration chamber and lower freezing chamber with separate compressors.
  • Digital temperature display to control temperature precisely and monitor operating status clearly.
  • Equipped with sheet metal refrigerated drawers and acrylic plates.
  • The inner material with Aluminum plate with spraying and three layers coated steel wire shelf clapboard.
  • Ensure safe sample storage with inter-room independent door lock and independent external padlock.
  • Tube-type condenser and built-in type evaporator work well to keep the temperature in the cabinet.
  • LED lighting in the cabinet of the combination refrigerator freezer provides great visibility.

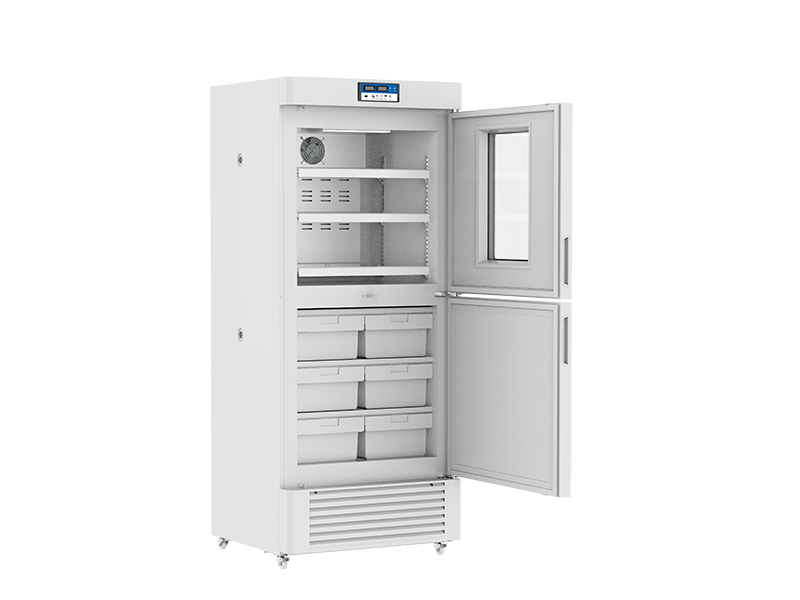

  • The lower freezing chamber is equipped with drawers and the refrigeration chamber is equipped with coated steel wire shelves.
  • The combination refrigerator freezer is equipped with casters at the bottom for convenient movement and placement.
  • Standard with Build-in USB data logger for temperature data recording.

Specifications

Model
SMI-165FCR-EL450
Cabinet Type
Upright
Capacity(L）
450, R:225, F:225
Internal Size(W*D*H)mm
R:650*570*627, F:650*570*627
External Size(W*D*H)mm
810*735*1960
Package Size(W*D*H)mm
895*820*2135
NW(Kg)
144/156
Performance
Temperature Range
R:2～8，F:-10～-26
Ambient Temperature
16-32℃
Cooling Performance
R:5, F:-26
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
2pcs
Cooling Method
R: Forced air cooling, F:Direct cooling
Defrost Mode
R:Automatic, F:Manual
Refrigerant
R600a
Insulation Thickness(mm)
L/R:80, B:80
Construction
External Material
PCM
Inner Material
Sprayed aluminum plate
Shelves
R:3(coated steel wire shelf), F:6(ABS)
Door lock with key
Yes
Lighting
LED
Data logging/Interval/Memory capacity
USB/Record every 10 minutes / 1000,000data
Door with heater
Yes
Access Port
2pcs. Ø 25 mm
Casters
4 (2 casters with brake)
Alarm
Temperature
High/Low temperature, High ambient temperature
Electrical
Power failure, Low battery
System
Sensor failure, Door ajar, Built-in USB datalog failure, Communication failure
Accessories
Standard
RS485, Remote alarm contact

Product Brochure

Product Brochure Link here
