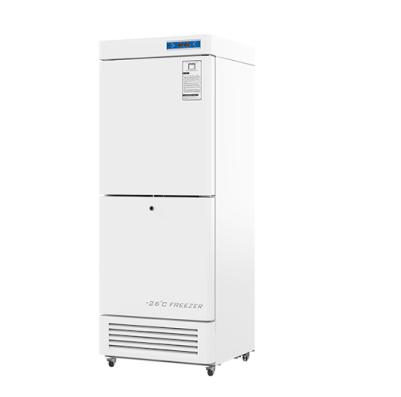

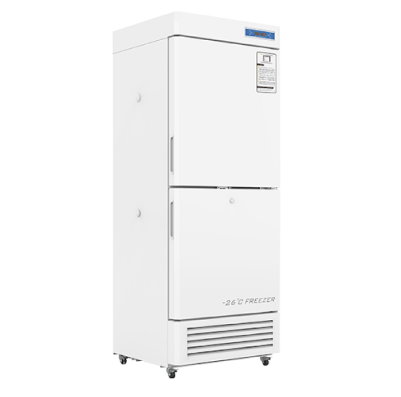

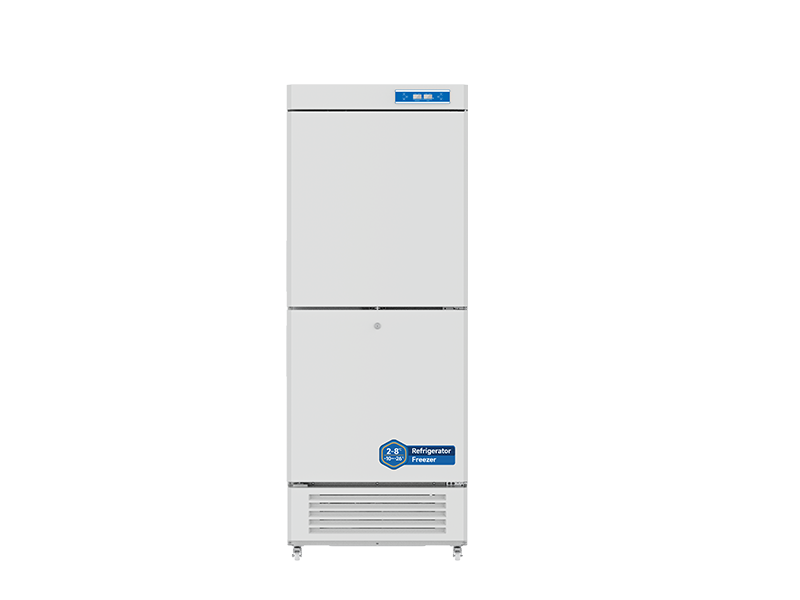

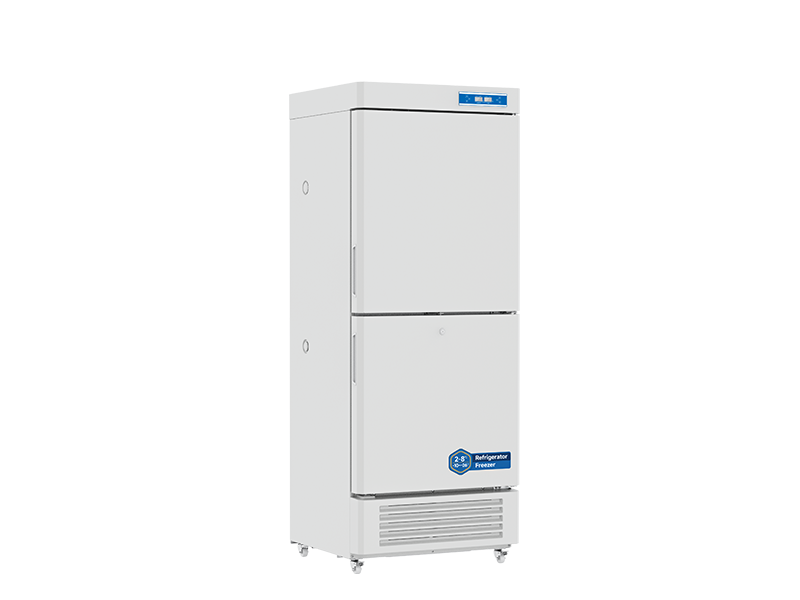

Combined Refrigerator and Freezer SMI-165FCR-EL298

CLICK TO SCAN

Description

This Jindal Combined Refrigerator and freezer combo is equipped with two compressors and utilizes CFC-free refrigeration, ensuring high efficiency and energy savings. It provides rapid cooling and allows precise, separate control of the refrigeration and freezing compartments. The thermal insulation incorporates a thicker layer with CFC-free polyurethane foam technology, delivering superior insulation performance. A digital temperature display clearly indicates the operating status, and users can set high and low temperature alarm points according to their specific needs.

Advance Cooling Technology

This refrigerator freezer unit features energy-efficient compressors dedicated to the upper refrigeration chamber and the lower freezing chamber. It utilizes eco-friendly refrigerants to promote energy conservation and reliable cooling performance. Enhanced thermal insulation is achieved through the use of CFC-free polyurethane foam and a thickened insulation layer, ensuring optimal temperature stability.

Enquire Now

Advanced Digital Temperature Control System

The temperature control system of this combination refrigerator freezer displays both temperature and humidity independently. The digital display allows you to clearly monitor the operating status at a glance. This medical-grade refrigerator freezer enables precise temperature settings, with the upper chamber range is 2℃ to 8℃ and lower chamber range is -10℃ to 26℃.

Advanced Protection System

This refrigerator freezer also serves as a secure vaccine storage solution, featuring an integrated 8-point audible and visual alarm system. The alarms include high ambient temperature, high/low temperature, sensor failure, communication failure (USB), data download failure, low battery, door ajar, and data logging function not enabled, ensuring the safe storage of sensitive samples.

Features

  • This combination refrigerator freezer features an upper temperature range of 2°C to 8°C and a lower range of -10°C to -26°C.
  • It offers separate control for the upper refrigeration chamber and the lower freezing chamber, each with its own compressor.
  • Direct cooling and electronic temperature control ensure rapid refrigeration and stable temperature maintenance.
  • The unit is equipped with sheet metal refrigerated drawers and acrylic plates.
  • A digital temperature display allows for precise temperature control and clear monitoring of the operating status.
  • For secure sample storage, the unit includes independent door locks for each chamber and an external padlock.
  • The interior is constructed with stainless steel and features three-layer stainless steel clapboards.
  • A tube-type condenser and built-in evaporator work effectively to maintain consistent temperature within the cabinet.

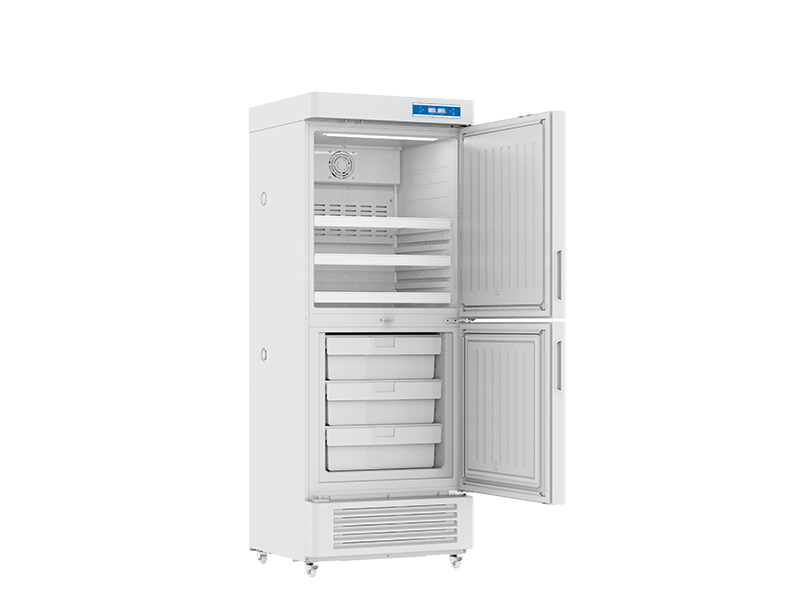

  • The lower freezing chamber includes drawers, while the refrigeration chamber is fitted with steel wire shelves.
  • LED lighting inside the cabinet provides excellent visibility.
  • Additionally, the combination refrigerator freezer is equipped with casters for easy movement and placement.
  • A built-in USB data logger is included as standard for recording temperature data.

Technical Data:



Model

SMI-165FCR-EL298

Cabinet Type

Upright

Capacity (L)

300,R:197,F:103

Internal Size(W X D X H)mm

R:600 X 510 X 657, F:500 X 460 X 535

External Size(W X D X H)mm

700 X 640 X 1876

Package Size(W X D X H)mm

760 X 720 X 1935

NW/GW(Kgs)

95/106

Temperature Range

R:2 to 8, F:-10 to -26

Ambient Temperature

16-32

Cooling Performance

R:5, F:-26

Climate Class

N

Controller

Microprocessor

Display

Digital display

Compressor

2 Nos.

Cooling Method

R: Forced air cooling, F:Direct cooling

Defrost Mode

R:Automatic, F:Manual

Refrigerant

R600a

Insulation Thickness(mm)

B:50(R), 100(F)

External Material

PCM

Inner Material

Sprayed aluminum plate

Shelves

R:3(coated steel wired shelf),F:3(ABS)

Door lock

Yes

Lighting

LED

Access Port

2pcs. Ø 25 mm

Casters

4 (2 casters with brakes)

Temperature

High/Low temperature

System

Sensor failure, Door ajar



Product Brochure

Product Brochure Link here
