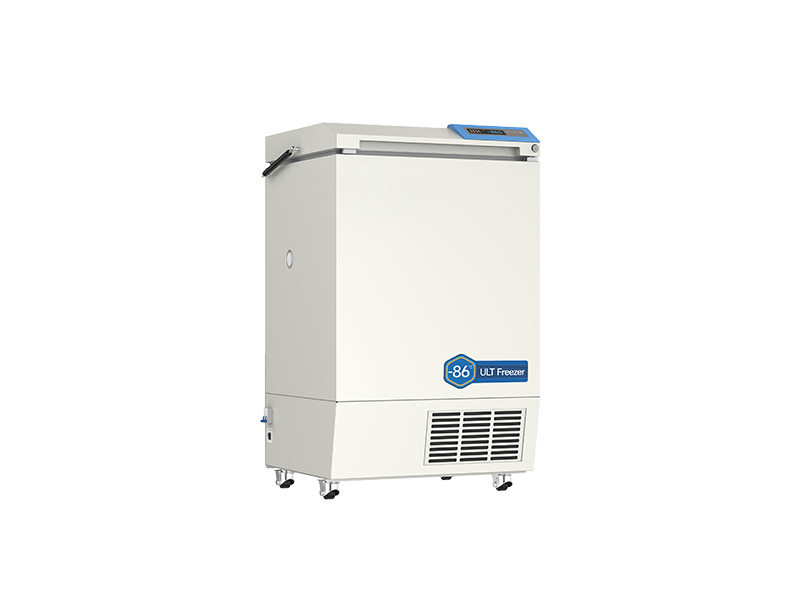

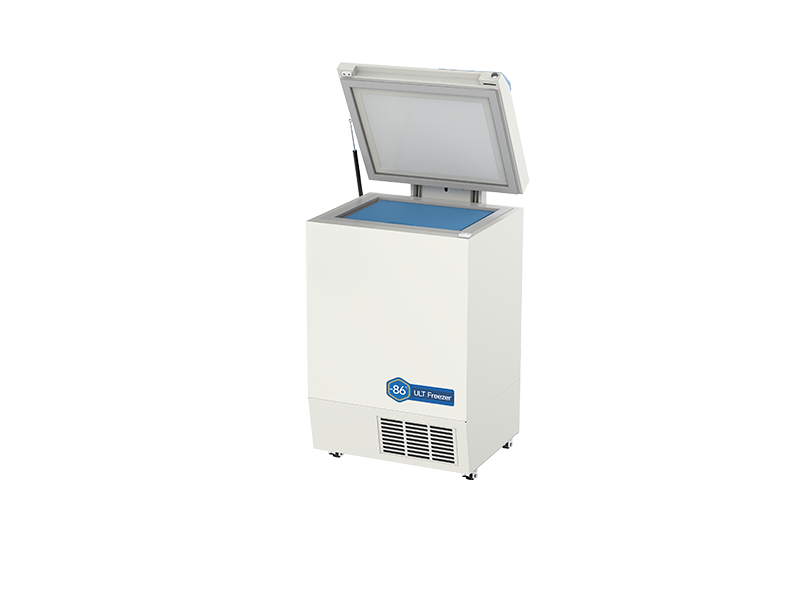

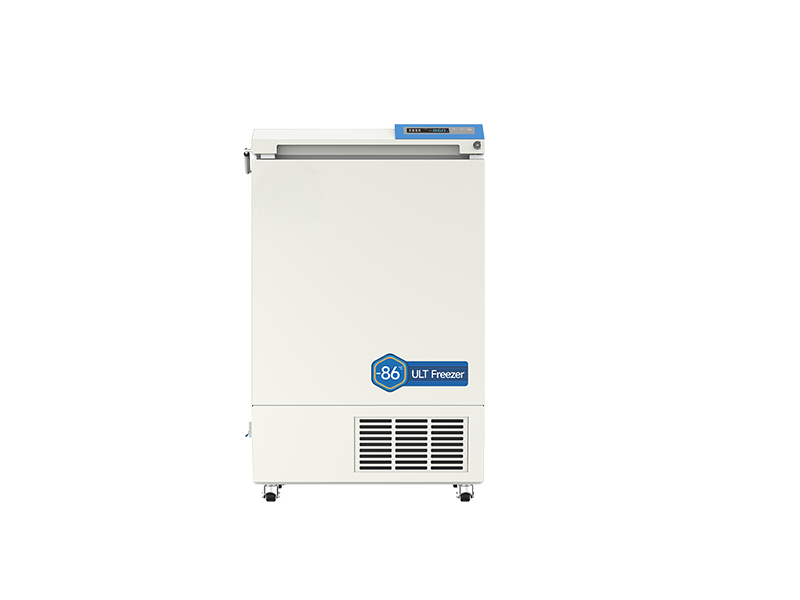

The Jindal -86°C Small Ultra-Low Temperature Chest Freezer SMI-165EUCF-HC-49 features a compact design with powerful performance. It is perfectly suited for the storage of materials used in low-temperature scientific experiments, plasma, tuna, biomaterials, and other biological products. This mini deep freezer is ideal for use in hospitals, blood banks, university laboratories, electronics industries, research institutes, military sectors, pelagic fishery companies, sanitation, and epidemic prevention centers.
Equipped with a microprocessor-based temperature controller, the freezer allows precise temperature settings ranging from -40°C to -86°C. Its chest-type structure and stainless steel interior make cleaning easy and efficient. Additionally, it includes a secure alarm system, keyboard lock, and password protection for enhanced safety and reliability.
The combination of 130mm CFC-free PU foam and high-quality vacuum insulated panels provides superior insulation, preventing rapid temperature increases and ensuring low energy consumption. The design of foam inner doors, built-in vacuum insulation board and triple independent silicone sealing strip design make the insulation performance excellent.
The ULT freezer uses natural green gases as refrigerants to meet safety requirements for usage. These natural hydrocarbon refrigerants are SNAP-compliant according to U.S. regulations. Additionally, this is supported by European Union regulation (EU-517/2014). The foaming agents used during manufacturing are fully controlled to ensure they are environmentally friendly.
Equipped with a microprocessor-based temperature control system, the freezer allows users to freely set temperatures within a range of -40°C to -86°C. Even at an ambient temperature of 32°C, the unit can maintain a minimum internal temperature of -86°C, with precise control in 0.1°C increments.
This ultra-low temperature freezer features a lockable door to prevent unauthorized access. It is equipped with a delayed start function and a safe stop interval between restarts and shutdowns to ensure reliable operation. The compact deep freezer also includes an audible and visual alarm system, featuring alerts for power failure, high/low temperature, communication failure, high ambient temperature, sensor failure, and more.
Model | SMI-165EUCF-HC-49 |
Cabinet type | Chest |
Capacity(L) | 49 |
Internal size(W X D X H)mm | 430 X 305 X 425 |
External size(W X D X H)mm | 650 X 606 X 1080 |
Package size(W X D X H)mm | 788 X 720 X 1283 |
NW(Kgs) | 74/120(wood packing) |
Temperature range | -40 to -86℃ |
Ambient temperature | 16-32℃ |
Cooling performance | -86℃ |
Climate class | N |
Controller | Microprocessor |
Display | Digital display |
Compressor | 1 Nos. |
Cooling method | Direct cooling |
Defrost mode | Manual |
Refrigerant | HC |
Insulation thickness(mm) | L/R:110, B:110 |
External material | Cold rolled steel |
Inner material | Stainless steel |
Door lock with key | Yes |
External lock | Optional |
Access port | 1pc. Ø 25 mm |
Casters | 4 |
Data logging/Interval/Memory capacity | USB/Record every 10 minutes / 100,000data |
Backup battery | Yes |
Temperature | High/Low temperature,High ambient temperature |
Electrical | Power failure,Low battery |
System | Sensor failure, Condenser overheating, Built-in USB datalogger failure, Communication error |
Standard | RS485,Remote alarm contact |
Options | Chart recorder, CO2 backup system |
