Applicable for products and samples which require strict storage, biological products, electronics and special materials. Products are widely used in hospitals, disease control, CDC, scientific research institutions biomedical engineering institutes, agriculture/fishery companies.
The Jindal Freezer achieves active ECO technology through three key innovations: Energy efficient and equipped with inverter technology with uniform temperature maintained throughout the freezer.
Though dual-system redundancy, two independent cooling units operate collaboratively to maintain uninterrupted performance even if one encounters issues, while shared operational loaders minimize individual strain, collectively extending the system’s overall durability and service life.
Twin frequency-controlled compressors dynamically balance cooling demand, slashing energy waste by 40% while maintaining precise -86°C stability. This smart power synergy extends com ponent lifespan and reduces acoustic output to lab-friendly levels 46dB .
Achieves -80℃ in just 5 hours from ambient (25°C), 50% faster than the industry standard of 6 hours, while also enhancing temperature uniformity to ±3℃ with enhanced shelf design for efficient and consistent air circulation in the chamber and rounded metal rims of shelf edges for enhanced safety of users’ fingers. 40% improvement over typical ±5°C fluctuations.
Equipped with AI-enhanced inverter technology, the Jindal Dual ULT Freezer intelligently adjusts to voltage fluctuations (100V–260V), maintaining uninterrupted -86℃ stability even in regions with erratic power grids

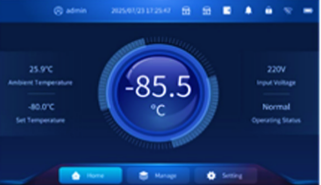

Global integrated Experience unparalleled convenience with Jindal easy-to-use interface, featuring a state of-the art 10.1″ TFT Touch Screen. Take command of precise temperature control effortlessly, ensuring optimal storage conditions for even the most sensitive materials. cold chain solutions supplier
Immerse yourself in comprehensive visual management with Multi Visual system, empowering you to monitor temperature, humidity, and alarms in real-time. Effortlessly ensure sample integrity and regulatory compliance as you access detailed data and trends with ease.
Simplify your laboratory workflow with ULT Freezer’s convenient settings feature. Effortlessly configure parameters using the large, intuitive touchscreen interface, streamlining operation for users of all levels, ensuring efficient management of your valuable samples. Whether adjusting temperature thresholds or setting alarms.
Ensure the utmost safety and security for samples with 10.1″ TFT Touch Screen feature. Experience unparalleled control and visibility as you monitor and adjust temperature settings with precision. Rest easy knowing that your valuable samples are safeguarded against temperature fluctuations and environmental changes
Multi-layers reinforced silicone gaskets provide a tight seal between the inner doors and outer door, reducing heat exchange rate and retaining the inner temperature better when there is power failure
Engineered for global deployment, our 220V/10A power system auto-adapts to 100-260V inputs (±15% voltage fluctuation tolerance), ensuring lab-grade stability across grids from 50Hz to 60Hz
Ingenious handle design helps you easy to open and close door easier. Lockable handle safeguards your precious samples. Padlock can also be added for extra sample safety.
| Cabinet Type | Upright |
|---|---|
|
Storage Volume (L） |
850 |
|
Temperature Range |
-40°C to -86°C |
|
Default Set Point |
-81°C |
|
Power |
100-240~V /50/60Hz |
|
Current |
14A (at 100V) ,7A(at 240V) |
|
Power Cord Length |
1.7m |
|
Door type |
Solid door |
|
Application Environment |
Non-corrosive, non-flammable, non-explosive |
|
Outer Chamber Material |
Powder coated steel |
|
Inner Chamber Material |
Stainless steel 304 grade |
|
Ambient Operating Temperature |
10°C~32°C |
|
Refrigeration System |
Dual Inverter cooling |
|
Compressors |
2 Nos. |
|
Condenser Type |
Air cooling |
|
Expansion Device |
Capillary tube |
|
Evaporator Type |
Built-in |
|
Defrost Method |
Manual defrosting |
|
Refrigerant |
Mix refrigerant |
|
Display screen |
10.1“LCD Touch screen |
|
Controller Type |
Microprocessor |
|
Security |
Lockable door, password protected settings |
|
Control Sensor |
PT1000, stainless steel |
|
Communication Ports |
USB, Remote alarm contacts |
|
Power Failure Alarm |
Yes |
|
High/Low Alarms |
Yes, fully adjustable |
|
Door Ajar Alarm |
Yes |
|
Sensor Alarm |
Yes |
|
Temperature Log |
Yes, download by USB |
|
Battery Back-up |
Yes, 17 hr. display and alarm back-up | Rechargeable 12V, li-ion battery |
|

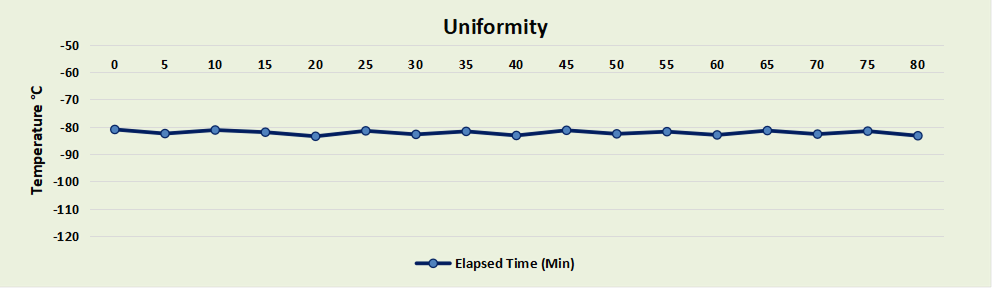

Uniformity |
±3°C |
|

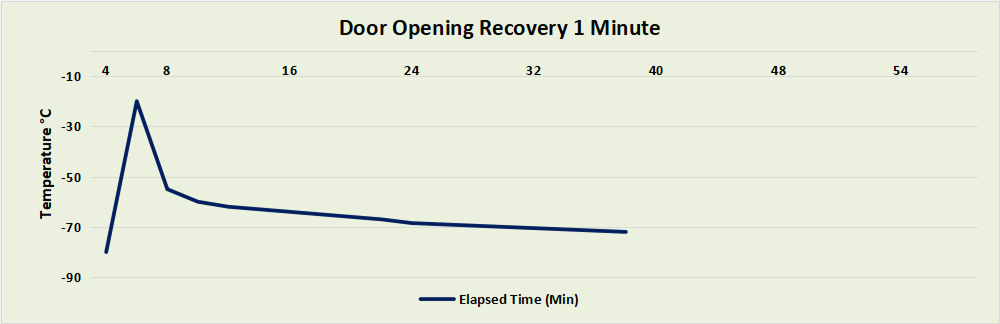

Recovery to -75°C after 1 min door opening |
27 Min. |
|
Temperature fluctuation |
≤3.2°C |
|
Energy consumption |
6.9 kWh/day |
|
Noise emission |
46 dB |
|
Heat rejection |
1706 BTU/hr. |
|
Pull-down time to -81°C |
300 Min. |
|
Backup Time |
17 Hour |
|
Optional/Additional Accessories |
Stainless Steel Racks, Cryo-Boxes, Cryo-gloves, Chart Recorder, Cold Chain Monitor,CO2 Backup , Voltage Stabilizer |
|
Internal (W*D*H) |
885*720*1310 mm |
|
External (W*D*H) |
1175*995*1980 mm |
|
Access Port |
2 Access Port- for external monitoring probe(s) (25 mm diameter) |
|
shelf |
3 | 87 kg max capacity |
|
Wheels |
4 Swivel Casters + 2 Leveling Feet |
|
Net Weight |
344 kg |
|
Gross Weight |
403 kg |
