Vertical Autoclave SMI-102-76A

Home Sterilization >Vertical Autoclave>Vertical Autoclave SMI-102-76A

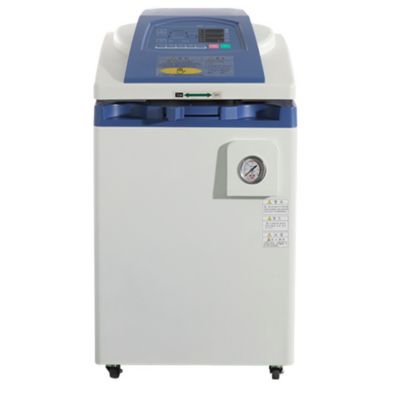

Vertical Autoclave SMI-102-76A

CLICK TO SCAN

Description

Autoclaves with powerful functions are made for laboratory research, dental clinics, hospitals, and the pharmaceutical industry. Make your investment pay off by using Unicorn’s safe, quality autoclaves and one-stop services. Unicorn’s vertical autoclaves, or top-loading autoclaves, are the most reasonable choice for limited spaces while satisfying different loading needs. In addition to offering versatile functions, including automatic water feeding, vacuum pumping, and deodorization, Unicorn’s autoclaves use quality safety parts from well-known suppliers to guarantee reliable quality and user safety. That is why hundreds of clients around the world have chosen Unicorn as their lab sterilization solution provider.

Features:

  • Sterilization temperature can be set up to 138 degrees.
  • Adopt PT1000 sensor for more precise temperature control with 0.1 degree display accuracy.
  • Two water level monitoring functions: capacitive water level sensor and temperature type water level sensor.
  • With a 5-level password setting function, it can be used for data traces of pharmaceutical companies, meet GMP and FDA certification requirements, and can print FO values.
  • SMS alarm (optional)
  • Configurable negative pressure to a pressure gauge up to 0.5.
  • Standard optimization to prevent dry burning.
  • Open the cover to stop heating.
  • Real-time data saving function, memory storage 60 programs, programmable various mode sterilization programs.
  • Voice prompt function.
  • Intelligent multi-stage exhaust function.
  • Freertos embedded operating system.
  • Standard U disk real-time data recording and download function.
  • Log function (touch screen).
  • Fault monitoring, alarm and recording functions (touch screen).
  • With automatic detection, check the relationship between temperature and pressure to ensure a true saturated steam state.
  • Automatically detect cold air emissions, ensure steam internal discharge function, and ensure pollution-free environment.
  • The boiling temperature can be adjusted according to the altitude.
  • Exhaust gas temperature can be adjusted within 0-25 degrees of boiling temperature.
  • Dual temperature sensor for detecting temperature and water temperature.
  • One sensor hole and one verification hole for the tank cover, convenient for verifying the connection.

Technical Data:

Model
SMI-102-76A
Capacity
76 liters
Inner chamber electropolishing
Yes
Inner chamber Thickness
3
Display Accuracy
0.1
Sterilization maximum setting temperature
138
Gas cylinder
Side setting
Sterilization range (°)
105-138
Dissolution temperature (°)
50-100
Holding temperature (°)
40-60
Pressure display range
-0.1-0.5mpa
Exhaust method
Full row, micro row, no row, intelligent multi-stage exhaust
Automatic hydration
No
Dry
No
Internal row function
No
Deodorization system
No
Cooling fan
Horizontal row
Water level sensing
Yes
Pressure Sensor
Yes
USB
Yes
Pan opening method
One -touch upper cover
Dimensions(W*D*H)mm
612*520*1070
Dimensions
5-45℃
Rated power
2800W
Sterilization bile size (diameter * high)
Φ370*730
Basket size(W*D*H)mm
Φ340*230/ Φ340*350
Product weight
120 Kg
Overall dimensions
612*520*1070
Working power
220V±10%,16A,50Hz/60Hz
