S.M. Scientific Instruments (P) LTD

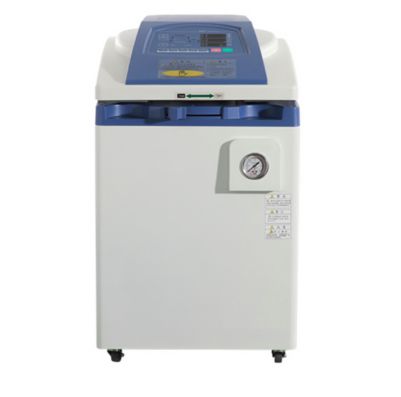

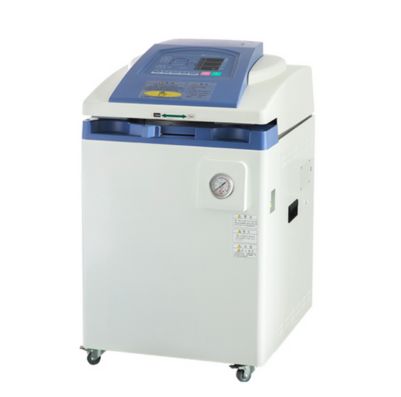

Vertical Autoclave SMI-102-118

Home ≫Sterilization >Vertical Autoclave>Vertical Autoclave SMI-102-118

Vertical Autoclave SMI-102-118

CLICK TO SCAN

Description

Autoclaves with powerful functions are made for laboratory research, dental clinics, hospitals, and the pharmaceutical industry. Make your investment pay off by using Jindal’s safe, quality autoclaves and one-stop services. Jindal’s vertical autoclaves, or top-loading autoclaves, are the most reasonable choice for limited spaces while satisfying different loading needs. In addition to offering versatile functions, including automatic water feeding, vacuum pumping, and deodorization, Jindal’s autoclaves use quality safety parts from well-known suppliers to guarantee reliable quality and user safety. That is why hundreds of clients around the world have chosen Jindal as their lab sterilization solution provider.

Features:

  • Sterilization temperature can be set up to 138 degrees
  • Adopt PT1000 sensor for more precise temperature control with 0.1 degree display accuracy
  • Two water level monitoring functions: capacitive water level sensor and temperature type water level sensor
  • With a 5-level password setting function, it can be used for data traces of pharmaceutical companies, meet GMP and FDA certification requirements, and can print FO value
  • SMS alarm (optional)
  • Configurable negative pressure to a pressure gauge up to 0.5
  • Standard optimization to prevent dry burning
  • Open the cover to stop heating
  • Real-time data saving function, memory storage 60 programs, programmable various mode sterilization programs
  • Voice prompt function
  • Intelligent multi-stage exhaust function
  • Freertos embedded operating system
  • Standard U disk real-time data recording and download function
  • Log function (touch screen)
  • Fault monitoring, alarm and recording functions (touch screen)
  • With automatic detection, check the relationship between temperature and pressure to ensure a true saturated steam state
  • Automatically detect cold air emissions, ensure steam internal discharge function, and ensure pollution-free environment
  • The boiling temperature can be adjusted according to the altitude
  • Exhaust gas temperature can be adjusted within 0-25 degrees of boiling temperature
  • Dual temperature sensor for detecting temperature and water temperature
  • One sensor hole and one verification hole for the tank cover, convenient for verifying the connection
Previous
Next
Enquire Now

Technical Data:

Model

SMI-102-118A

SMI-102-118W

SMI-102-118D

SMI-102-118S

Capacity

120 Liters

120Liters

120 Liters

120 Liters

Inner Chamber Electropolishing

Yes

Yes

Yes

Yes

Inner Chamber Thickness

3

3

3

3

Display Accuracy

0.1

0.1

0.1

0.1

Sterilization maximum setting temperature

138

138

138

138

Gas Cylinder

Side setting

Side setting

Side setting

Side setting

Sterilization Range (°)

105-138

105-138

105-138

105-138

Dissolution Temperature (°)

50-100

50-100

50-100

50-100

Holding Temperature (°)

40-60

40-60

40-60

40-60

Set Time

Sterilization, melting: 0 minutes – 9999 minutes; holding time: 9999 hours; scheduled

Sterilization, melting: 0 minutes – 9999 minutes; holding time: 9999 hours; scheduled sterilization time: 0-15 days delay

Sterilization, melting: 0 minutes – 9999 minutes; holding time: 9999 hours; scheduled sterilization time: 0-15 days delay

Sterilization, melting: 0 minutes – 9999 minutes; holding time: 9999 hours; scheduled sterilization time: 0-15 days delay

Pressure Display Range

-0.1-0.5mpa

-0.1-0.5mpa

-0.1-0.5mpa

-0.1-0.5mpa

Exhaust Method

Full row, micro row, no row, intelligent multi-stage exhaust

Full row, micro row, no row, intelligent multi-stage exhaust

Full row, micro row, no row, intelligent multi-stage exhaust

Full row, micro row, no row, intelligent multi-stage exhaust

Safety Equipment

Pressure safety valve, prevent dry burning, door lock safety interlock device, chamber cover closing detection system, over pressure detection, over temperature detection, leakage short circuit detection

Pressure safety valve, prevent dry burning, door lock safety interlock device, chamber cover closing detection system, over pressure detection, over temperature detection, leakage short circuit detection

Pressure safety valve, prevent dry burning, door lock safety interlock device, chamber cover closing detection system, over pressure detection, over temperature detection, leakage short circuit detection

Pressure safety valve, prevent dry burning, door lock safety interlock device, chamber cover closing detection system, over pressure detection, over temperature detection, leakage short circuit detection

Automatic Hydration

No

Yes

Yes

Yes

Dry

No

No

Yes

No

Internal Row Function

No

No

No

Yes

Deodorization System

No

No

No

Yes

Cooling Fan

Vertical Row

Vertical Row

Vertical Row

Vertical Row

Water Level Sensing

Yes

Yes

Yes

YEs

Pressure Sensor

Yes

Yes

Yes

Yes

USB

Yes

Yes

Yes

Yes

Pan Opening Method

One-touch upper cover

One-touch upper cover

One-touch upper cover

One-touch upper cover

Dimensions(W*D*H)mm

815*660*1365

815*660*1365

815*660*1365

815*660*1365

Dimensions

5-45℃

5-45℃

5-45℃

5-45℃

Rated Power

4800W

4800W

4800W

4800W

Sterilization bile size (diameter * high)”

Φ450*845

Φ450*845

Φ450*845

Φ450*845

Basket Size(W*D*H)mm

Φ430*350*2

Φ430*350*2

Φ430*350*2

Φ430*350*2

Product Weight

216Kg

216Kg

216Kg

216Kg

Overall Dimensions

815*660*1365

815*660*1365

815*660*1365

815*660*1365

Working Power

220V±10%,32A,50Hz/60Hz

220V±10%,32A,50Hz/60Hz

220V±10%,32A,50Hz/60Hz

220V±10%,32A,50Hz/60Hz
