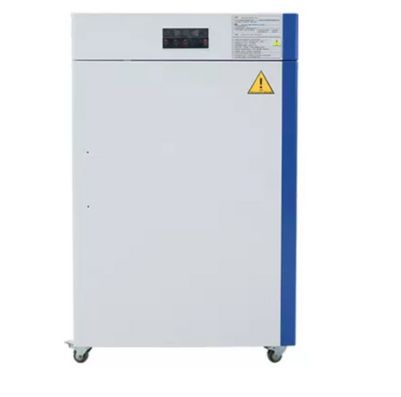

The Jindal UV Sterilization Cabinet is designed for sterilizing high-temperature-resistant appliances, including glass, porcelain cups, ceramics, production supplies, currency, non-woven fabric, composite paper, cleaning appliances, tableware, towels, clothes, shoes, packaging materials, and other products. It utilizes three-sided high-intensity sterilization, combining ultraviolet and ozone for synergistic sterilization. Ozone is employed to disinfect areas not exposed to UV rays, effectively killing surface viruses or bacteria.
|
Model No.: |
SMI-3080A-01 |
SMI-3080A-02 |
|
Type |
With Ozone |
Without Ozone |
|
UV Ray Wavelength |
253.7/184.9nm |
253.7nm |
|
Sterilization Way |
2 sides of UV ray+1 side of ozone |
3 sides of UV ray |
|
Capacity |
200L |
|
|
Power |
120W |
|
|
Power Supply |
Standard: 220V 50/60Hz, optional: 110V 50/60Hz |
|
|
UV Lamp Material |
Quartz Glass |
|
|
Shelves |
Standard 2pc, can be optional |
|
|
Internal Size (L X W X H) |
518 X 523 X 778 mm |
|
|
External Size (L X W X H) |
750 X 663 X 1200 mm |
|
|
Packing Size (L X W X H) |
875 X 788 X 1265 mm |
|
|
Gross Weight |
100 Kg. |
|
Microorganism Species | Exposure Dose | Exposure Time |
Bacterial Propagules | ≥10000uw.s/cm2 | 10min |
Bacterial Spores | ≥100000uw.s/cm2 | 10min |
Virus | 10000uw.s/cm2≤Exposure Dose ≤100000uw.s/cm2 | 10min |
Fungal Spores | General Exposure Dose ≤100000uw.s/cm2, Special Exposure Dose 600000uw.s/cm2 | 60min |
When the target microorganism is unknown | ≥100000uw.s/cm2 | 10min |
Remarks: The suitable temperature range for ultraviolet disinfection is 20°C–40°C. If the temperature is too high or too low, the disinfection effect will be affected, and the disinfection time can be appropriately extended.
Product Brochure Link here
