S.M. Scientific Instruments (P) LTD

UV Air Sterilizer(Wall Mounted) SMI-UVAS

Home Sterilization >Air Sterilizers>UV Air Sterilizer(Wall Mounted) SMI-UVAS

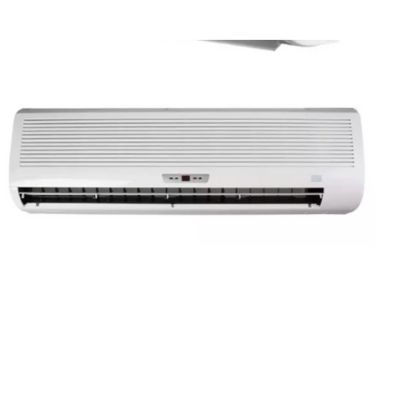

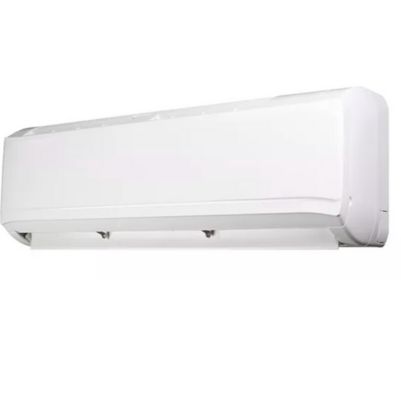

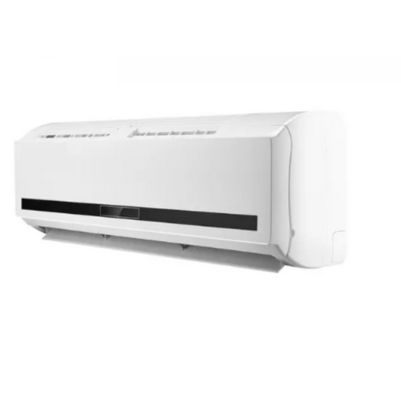

UV Air Sterilizer(Wall Mounted) SMI-UVAS

CLICK TO SCAN

Description

It is suitable for dynamic indoor air disinfection in class II, III, and IV environments of hospitals, such as operating rooms, delivery rooms, general protective isolation rooms, supply room sterile areas, burn wards, ICU intensive care units, pediatric wards, injection rooms, emergency rooms, laboratories, etc. Also applicable are homes, schools, libraries, blood stations, food and beverage factories, pharmaceutical factories, sanitary products factories, electronics factories, farms, warehouses, banks, nursing homes, museums, archives, restaurants, and other public places.

Features:

  • LED display, there are 20s to display the total running time after shutdown.
    There are two working modes: manual mode and timing mode.
  • Timing can achieve 24 hours of freely set sterilization periods and has a memory function.
  • There are two kinds of wind direction control: manual and automatic. The wind angle can be adjusted manually.
  • The super-infrared receiving device can realize long-distance remote control.
  • Built-in high-brightness, long-life, ozone-free, single-end H-type UV lamp.
  • Human and machine coexistence (when there is no ozone)

Technical Data:

Model
SMI-UVAS-600
SMI-UVAS-800
SMI-UVAS-1000
Applicable Room
≤60m3
≤80m3
≤100m3
Circulating Air
≥600m3/h
≥800m3/h
≥1000m3/h
Shell Material
ABS,anti-UV
Filter
Activated carbon, filter dust particles more than 5um
UV Lamp Life
≥5000h
UV Radiation Intensity(Inner)
≥20000μW/cm2
Natural Bacteria Extinction Rate
≥90%
Sterilization Rate of Staphylococcus Albicans
≥99.9%
Noise
≤55dB
Consumption
≤130W
≤160W
≤280W
Power Supply
AC220,50Hz (Standard); 110V,60Hz (Optional)
External Size(W*D*H)mm
850*280*220
980*330*220
1080*330*220
Package Size(W*D*H)mm
1100*280*385
1113*297*385
1220*297*385
Net Weight(Kg)
7.2
8.8
11.5
Gross Weight(Kg)
9.8
12.6
15.5

Product Brochure

Product Brochure Link here
