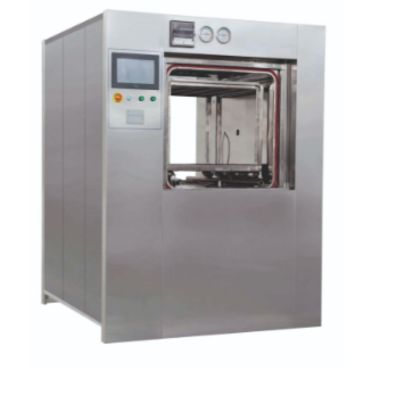

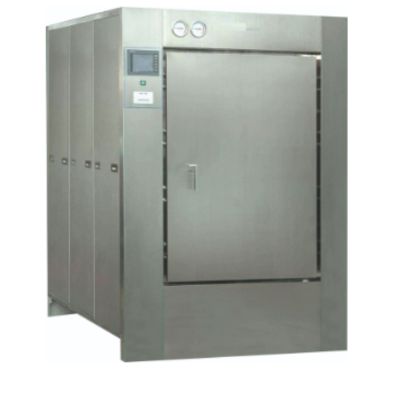

Rectangular Fully Automatic Sliding Door Autoclave SMI-106V

Home Sterilization >Horizontal Cylindrical Steam Sterilizers>Rectangular Fully Automatic Sliding Door Autoclave SMI-106V

Rectangular Fully Automatic Sliding Door Autoclave SMI-106V

CLICK TO SCAN

Description

JINDAL fully automatic microprocessor-based, high-pressure, high-vacuum autoclave is designed to fulfill the needs of the CSSD unit and various other microbiology works. The sterilizer is designed for sterilizing hospital materials, including agars, solutions in open and closed bottles, disinfection of materials, and waste decontamination. It complies with EN 285 standards and is CE certified under Pressure Directive 97/23/EC.

Construction:

The complete autoclave, including the outer casing, is made of high-grade stainless steel.

The autoclave chamber is a horizontal model, rectangular in shape, with a front-loading design. The chamber and jacket are made of SS 316L. The chamber consists of rounded corners to prevent the formation of debris and ensure efficient cleaning. The jacket is duly insulated with 50-mm-thick glass wool insulation to ensure low thermal losses.

The sterilizer is provided complete with high quality stainless steel trolleys and sterilization baskets.

External Trolley: 01

Internal trolley with steel roller & shelves: 01

Sterilization baskets: 02

The door is also made of SS 316L and is duly insulated with 50mm thick glass wool insulation to ensure that the working temperature of the door is 420 °C. The fully automatic single vertical sliding door provides quick operation through a pass-through system with the latest multiple safety arrangements. An electrically operated door is linked to a silicone seal to provide a perfect seal.

Fully Automatic Microprocessor Control:

The complete autoclave is linked to a microprocessor controller that monitors all the parameters in real time. The microprocessor control is linked to a bright-color touch-screen HMI to display and set all the parameters. The menu consists of eight preprogrammed standard cycles, which the operator can run at the touch of a button. Separate five-user programmable cycles are also provided. The operator can edit and run any of these five cycles. built-in provision of a chip card port for loading new programs through chip cards.

The operator access levels are programmable with password entry as under:

  • Unauthorized User
  • Authorized User
  • Administrator
  • Service Engineer
  • Designer

The built-in alarm system provides a message on the touch screen in case of any failure or malfunction. The temperature is adjustable from 1210 °C up to 1350 °C. The safe working pressure range provided is 15 to 32 PSIG. Routine calibration and maintenance checks are carried out on a quarterly basis.

Safety & Ergonomic Features:

  • Built in water saving systems ensure water conservation.
  • Safety curtain at the time of automatic door closing to prevent any injury.
  • User programmable menu linked to dedicated microprocessor.
  • Cycle Interrupt feature allows the user to interrupt the cycle & to unload the material .
  • Independent pressure safety valves for chambers & jacket
  • Built in pressure safety cut off electrical switch for jacket/boiler
  • Emergency stop in case of malfunction
  • Over temperature safety cut out
  • Built in current breaker, MCBs for safety
  • Factory installed steam traps for mechanical safety & smooth running
  • Online printing non fade thermo recorder for step by step progress values during cycle with date, time & active alarm conditions if any.

Chamber Internal Sizes:

Approx. Capacity in Liters.

  • 450mm X 450mm X 900mm 180 Ltr.
  • 450mm X 450mm X 1200mm 243 Ltr.
  • 600mm X 600mm X 1200mm 432 Ltr.
  • 600mm X 900mm X 1500mm 810 Ltr.

Custom built sizes can also be manufactured on request.

The instrument is designed to operate on 415V Three Phase AC Supply.

Optional Features:

  • Double Sliding door for pass through operation
  • Touch screen HMI on both sides for convenient operation in case of double door operation
