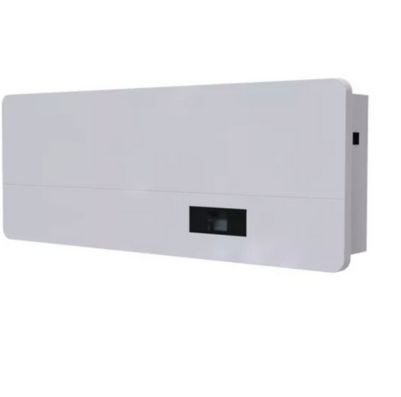

Plasma Air Sterilizer(Wall Mounted) SMI-PAS

Home Sterilization >Air Sterilizers>Plasma Air Sterilizer(Wall Mounted) SMI-PAS

Plasma Air Sterilizer(Wall Mounted) SMI-PAS

CLICK TO SCAN

Description

It consists of a plasma sterilization area and a dust accumulation area. The sterilization area contains electrons, ions, excited atoms, molecules, and active free radicals, which can effectively kill various bacteria, viruses, fungi, and other pathogenic microorganisms in the air. The dust accumulation area can effectively absorb the charged dust particles passing through the sterilization area.

It is suitable for general operating rooms, delivery rooms, blood wards, burn wards, protective isolation wards, intensive care units, disinfection supply centers, intensive dialysis centers, examination rooms, treatment rooms, infectious disease consultation rooms, etc.

Features:

  • Human and machine coexistence.
  • lt can effectively remove organic gasses and various odors in hospitals.
  • High sterilization efficiency and good dust accumulation effect.
  • Real-time monitoring of indoor air temperature.
  • Three gears adjustable wind speed.
  •  Multiple working modes: manual, timing, temporary.
  • 6 groups program-controlled timing disinfection.
  • Automatic accumulation of working hours.
  • LCD display, far infrared remote control.

Technical Data:

Model
SMI-PAS
Circulating Air
1000m³/h
Applicable Room
100m³
Plasma Generator Life
≥8000h
Plasma Concentration(ions/m³)
8.46*10^16~2.03*10^17m³
Electric Field Intensity of Sterilization Area
8000V
Electric Field Intensity of Dust Accumulation Area
4000V
O₃ Residue
≤0.02mg/m3
Sterilization Rate of Staphylococcus Albicans
>99.9%
Average Extinction Rate of Natural Bacteria
>92%
Input Power
≤80W
Power Supply
AC220V±10%, 50Hz
External Size(W*D*H)
1110*420*170mm
Package Size(W*D*H)
1160*494*263mm
Gross Weight(Kg)
24.5
