Ozone UV Sterilization Cabinet SMI-3080OS

Home ≫Sterilization >Ultra Violet Sterilizers >Ozone UV Sterilization Cabinet SMI-3080OS

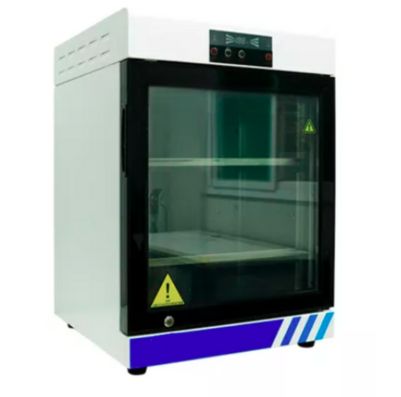

Ozone UV Sterilization Cabinet SMI-3080OS

CLICK TO SCAN

Description

The ozone UV sterilization cabinet can sterilize the following appliances that are not resistant to high temperatures: glass enamel cups, plastics, ceramics, machinery and equipment, production supplies, currency, non-woven fabrics, composite paper, packing boxes, packaging bags, appliances, cleaning appliances, mold, tableware, containers, towels, work clothing, clothing, shoes, packaging materials, raw materials, and solid objects.

It is suitable for banks, hotels, restaurants, schools, production workshops with hygienic requirements, public places that need to be sterilized, and family rooms.

Previous
Next
Enquire Now

Features

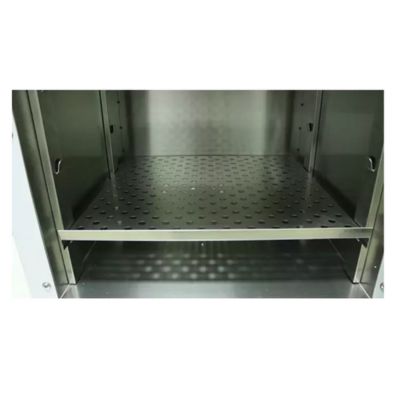

  • High-quality sealing materials and adjustable shelves make this product versatile and user-friendly
  • The customizable design allows for the addition of several layers based on specific requirements

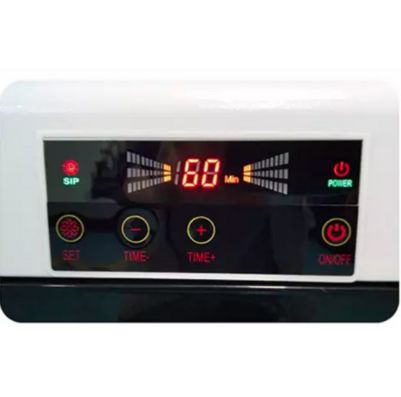

  • Fully automatic control, adjustable sterilization time and shut down automatically after  sterilization
  • Sterilization is more thorough, rapid, comprehensive, stable, 360-degree coverage
  • 304 stainless steel inner cavity, luxurious appearance, fashionable and beautiful
  • Stable operation, convenient operation, safe and reliable use, long service life, firmness and durability

Technical Specification

Model No.:

SMI-3080OS

SMI-3080OSA

Capacity

70L

90L

Internal Size (W X D X H) mm

398 X 398 X 452

398 X 498 X 452

External Size (W X D X H) mm

495 X 501 X 760

495 X 601 X 760

Sterilization  Method

Ozone

Shelves

2 pcs, optional 2 pcs, adjustable



Material

Work Zone: 304 stainless steel, 1.0mm thick

Main Body: Cold-rolled steel with coating

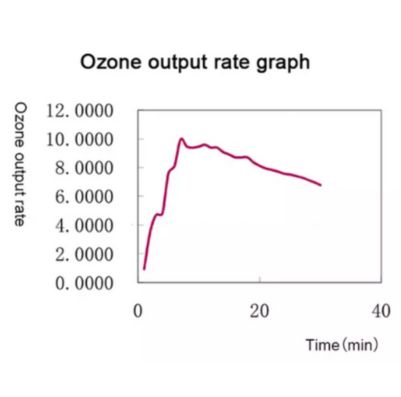

Ozone Concentration

>60mg/m3

Ozone Leakage

＜0.16㎎/m3

Sterilization Level

Medium and low level

Indicator Bacteria

Escherichia Coli, Staphylococcus Aureus, Candida Albicans

Index

Each point of the log kill value should be≥3.00

Sterilization Rate

Over 99.99%, for all kinds of bacteria, viruses, fungi

Control System

Automatic



Working Condition

（a) Ambient temperature range 5℃-40℃

（b) Relative humidity is not more than 85%

（c) Atmospheric pressure 70Kpa-106Kpa

（d) No flammable, corrosive gas or conductive dust around

Power Supply

AC 220V 50Hz (Standard); 110V 60Hz (Optional)

Package Size(W X D X H) mm

626 X 620 X 860

726 X 620 X 860

Gross Weight (Kg)

50

55
