Loop Sterilizer SMI-4011Digital

Home Sterilization >Loop Sterilizer SMI-4011Digital

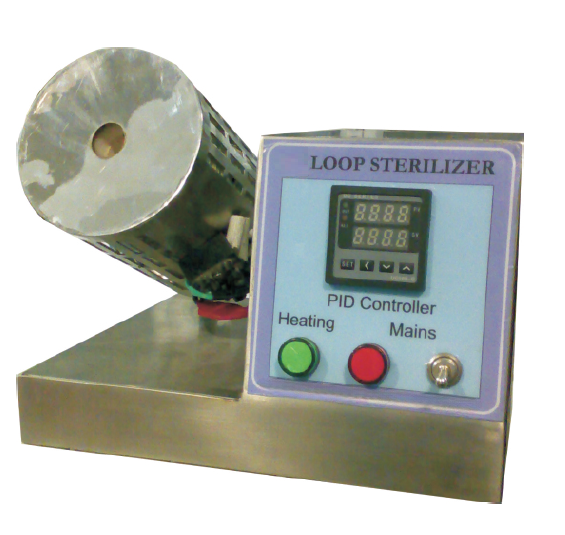

Loop Sterilizer SMI-4011Digital

CLICK TO SCAN

Description

Jindal loop sterilizer is designed with an electric heat source to sterilize metal inoculating loops and needles without using an open flame. Loop sterilizer widely used for inoculating loop or needle sterilization by producing uniform & constant heat. Sterilizers have an EN6052 protection class and are not intended to interfere with circuit radio. A ceramic heating element is surrounded by an isolating cover in loop sterilization.

Robust and temperature-shock resistant

The sterilizing tube, reaches its optimal temperature of 700-800°C after only a few minutes. To sterilize the inoculation loop, simply insert it into the quartz tube. After 5 seconds, the inoculation loop is sterilized. Any residue remaining on the smooth surface of the tube can be removed easily with the help of a soft brush

Flexible and safe

The low and stable housing facilitates ergonomic operation; the unique design protects the working surface from contamination.

Technical Data

  • Heating element Length : 150mm
  • Heating element Diameter: 15mm
  • Heating speed is 30-40 minutes to reach the maximum temperature
  • Sterilization Time: 5 seconds
  • Heating hole temperature : 700-800°C take 10-15 minutes

At a Glance

  • Long lasting sterilizing tube free from aerosol formation and cross contamination
  • Manual opration
  • Used in anaerobic chamber
  • Rapid & precise for fast loop annealing
  • Uniform & constant heat for perfect bottle neck sterilization
  • Precise temperature control technology avoid the heating components working overload long life

Silent Features

  • Protection from skin burn during handling
  • Light weight and easy to clean
  • Adjust the incinerator to stand at various angles
  • Digital temperature controller cum indicator with push button facility for setting desired sterilization temperature
  • Stand with Suction cup
  • Heating body made of stainless steel
  • Indian standerd Power Plug
  • Small unit which can be used in LAF, Biosafety cabinet, clean benches

Power Supply

  • Designed to operate at 220-240V, 50Hz AC power supply
  • Power Consumption : 350W

Accessories

  • Heater
  • Sensor
