S.M. Scientific Instruments (P) LTD

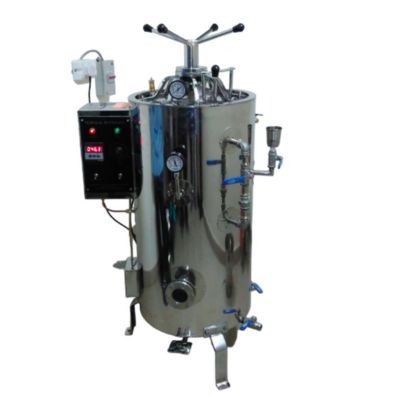

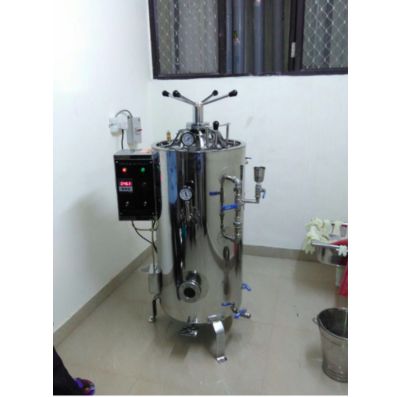

H.P. Sterilizer For Dry Sterilizer Vertical (Triple Walled) SMI -103A

Home Sterilization >Vertical Autoclave>H.P. Sterilizer For Dry Sterilizer Vertical (Triple Walled) SMI -103A

H.P. Sterilizer For Dry Sterilizer Vertical (Triple Walled) SMI -103A

CLICK TO SCAN

Description

The Jindal High Pressure Electrically Heated Vertical Steam Sterilizer is used for sterilizing surgical instruments, dressing material, linen, rubber, plastic material, and injection liquids by means of steam under high pressure and a temperature of 30 PSIG and 134 °C, which is adjustable.

This autoclave is useful for NABH-accredited hospitals and nursing homes for rapid sterilization of loads.

Construction:–

Triple-walled with an inner chamber, outer wall, and steam jacket made of thick stainless steel sheet. The lid is made out of stainless steel plate and is closed by a radial locking arrangement. The jacket is insulated by high-grade glass wool to minimize temperature loss. All sterilizers are hydraulically tested up to 2.5 times their working pressure.

The instrument is fitted with a pressure switch to control the pressure in the chamber. A built-in low water cut-off device ensures the safety of heaters in case of low water levels. The temperature is controlled by a digital PID temperature indicator controller with a timer.

The sterilizer is fitted with a safety valve, a water level indicator, and water inlet and drain valves. The sterilizer is supplied complete with cord and plug.

The instrument is designed to operate on a 220V AC supply (a model with 110V is also available).

Available in following chamber sizes:–

Dia   ×   Depth      Load
16”   X     24”       6.0 Kw (Double drum model)

Optional Accessories:

  • Microprocessor based fully automatic programmable controller
