H.P. Sterilizer For Dry Sterilization Vertical (Triple Walled) SMI -103

Home Sterilization >Vertical Autoclave>H.P. Sterilizer For Dry Sterilization Vertical (Triple Walled) SMI -103

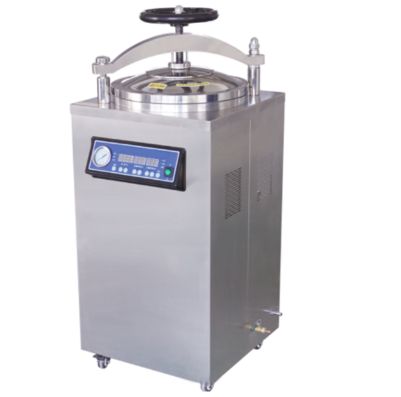

H.P. Sterilizer For Dry Sterilization Vertical (Triple Walled) SMI -103

CLICK TO SCAN

Description

The Jindal high-pressure electrically heated vertical steam sterilizer is used for sterilizing surgical instruments, dressing material, linen, rubber, plastic material, and injection liquids by means of steam under a pressure of 5 to 20 pounds per square inch (PSI), which is adjustable.

Construction:–

Triple-walled with an inner chamber, outer wall, and steam jacket made of thick stainless steel sheet. The lid is made out of stainless steel plate and is closed by a wing nut arrangement. The jacket is insulated by high-grade glass wool to minimize temperature loss. All sterilizers are hydraulically tested up to 2.5 times their working pressure.

The instrument is fitted with a pressure switch to control the pressure in the chamber.

The sterilizer is fitted with a safety valve, a water level indicator, and water inlet and drain valves. The sterilizer is supplied complete with cord and plug.

The instrument is designed to operate on a 220V AC supply (a model with 110V is also available).

Available in following chamber sizes:–

Dia   ×   Depth      Load

300   ×   500 mm    3.0 kw

400   ×   600 mm    4.0 kw

550   ×   750 mm    5.0 kw



Optional Accessories:

  • Automatic Low water Cut off Device
  • Digital temperature indicator cum controller
  • Automatic 0-120 minutes timer
  • Digital temperature indicator
  • Digital pressure indicator cum controller
  • Microprocessor based fully automatic programmable controller
  • Radial locking system to lock the door instead of wing nut arrangement
