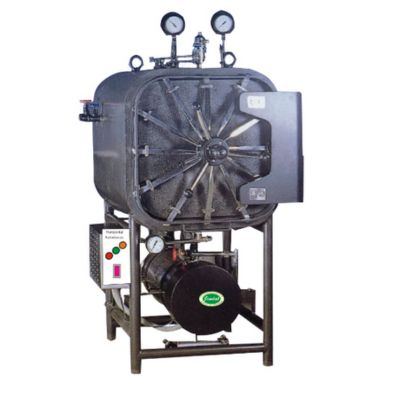

H.P. Rectangular Horizontal Sterilizer SMI -106

CLICK TO SCAN

Description

The sterilizer is based on the principle that the microbiological action of saturated steam at elevated temperatures is rapid and thorough. All models work on the downward displacement of air principle, which is the most economical method of obtaining all types of bulk sterilization that are commonly needed in medical, agricultural, and pharmaceutical institutes.

It is suitable for sterilizing hospital dressings, linen, rubber and plastic goods, surgical instruments, glassware, utensils, etc.

Enquire Now

Construction:

The sterilizer has a robust and rugged all-weld construction that is leak-proof. The inner chamber is made of a thick plate of high-quality stainless steel, and the jacket is made out of rolled stainless steel sheet.

Sterilizers will have a single door made out of thick stainless steel plate. All the sterilizers are hydraulically tested to withstand 2.5 times the working pressure.

The steam jacket is lined on the outer side with glass wool, which prevents heat losses due to radiation, and is covered by a strong rolled steel sheet, duly powder coated.

Boiler :

Made of a thick stainless steel plate suitably located under the sterilizer. High-grade flanged-type heating elements are fitted from the front side for easy replacement or repair. Fitted with a water gauge glass for water level, a safety valve, and water inlet and drain valves. It is also provided with a low water level cutoff device. This device protects the heater in the generator from burning out. The steam pressure in the boiler is indicated on an individual pressure gauge.

Safety Lock for Door :

Every horizontal rectangular sterilizer is fitted with a self-locking safety door that cannot be opened when the chamber is under pressure.

The clutch mechanism automatically disengages the threads of the radial locking system, precluding any eventuality of an accident when the chamber is under pressure. A heat-resistant Neoprene rubber gasket ensures a steam-tight fitting.

Pressure Control :

Electrically operated “PIEZOSTAT” (Pressure Control Device) is incorporated in all sterilizers. It acts as a safety device, economises power consumption and limits the use of a release valve which would frequently blow steam into the room.
It cuts off the power supply to heaters when the set pressure is achieved and re-energizes heaters when pressure falls down.

Sterilization :

Complete sterilization cycle is controlled from one point with the help of a “Multiport valve” fitted at the front top. Two speeds of exhaust are available for evacuating.

The Chamber :

Valves provided for evacuating air and steam from the inner chamber and jacket as and when desired. A steam trap is fitted in the chamber discharge line to eliminate the condensate automatically.

Control Panel:

The control panel includes a pressure switch, a microprocessor based digital temperature indicator cum controller, Mains MCB, pilot lamps, relays etc. and mounted on the stand of the sterilizer for easy operation.

Other Features:

  • Triple Safety: – The sterilizer is provided with triple safety features. At the boiler level by a PIEZOSTAT, which automatically limits the pressure to the required set value, and a spring-loaded safety valve in case of its failure, which releases the steam to keep pressure within the safety limits.
  • A digital temperature indicator and controller also help in monitoring the chamber temperature and switching off and on the heaters. At the chamber level, a spring-loaded safety valve and a dead-weight release valve release the steam in case the pressure exceeds the safety limit. All these safety features function independently of one another and sequentially, i.e., one takes over the charge in case of another’s failure.
  •  A plug screen prevents the discharge line from choking. The plug is easily removable for daily cleaning.
  • Powerful Ejector for drying sterilized linen circulates air throughout the chamber. The circulating air passes through a corrosion resistant metallic wool filter.
  • In the event of vacuum formation due to steam condensation, an automatic vacuum breaker is provided to break the vacuum.

Operating Temp. & Pressure:

Sterilizing Temp: 121°C
Sterilizing pressure: 1.2 to 1.5 kg/cm2 (15 psi to 22psi)
Power Requirement : Designed to operate on 415V volts, Three phase AC supply

Optional Accessories/Features:

• Chamber/Jacket of S.S. 316
• Door of S.S. 304/316
• Additional Tray/Shelves
• Carriage & Trolley
• Direct steam supply from centralised boiler
• Temperature recorder
• High pressure High vacuum model
• Additional door (Double door) model.
• Fully automatic microprocessor controlled model

Spare Accessories

• Pressure gauge/Compound gauge
• Water level gauge glass
• Dial thermometer
• Non return valve
• Moisture trap
• Joint less Gasket :– Neoprene/silicon rubber,
 size : 400 & 500mm
• Heating elements (Flange Type) Rating kw 6.0, 9.0

Available in following capacities :

Sr. No.
W
H
D
Load
1
600mm
600mm
1200mm
18Kw
2
600mm
900mm
1500mm
27Kw
3
900mm
1050mm
2100mm
36Kw

Product Brochure

Product Brochure Link here
