Flash Autoclave Class B SMI-108FAB

CLICK TO SCAN

Description

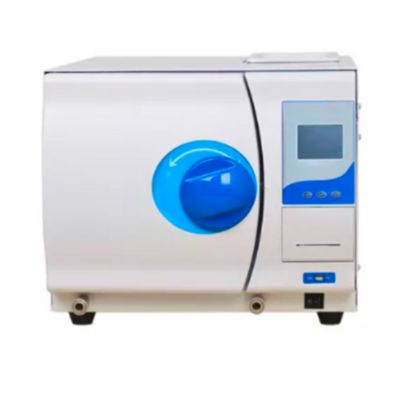

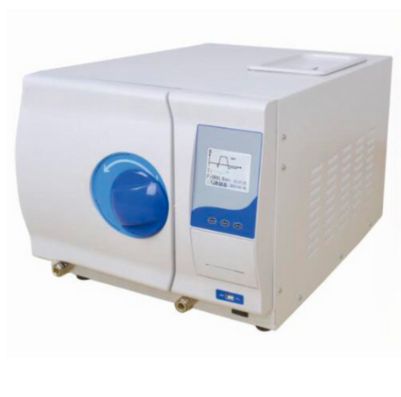

The JINDAL high-pressure, electrically heated flash sterilizer is designed to meet the requirements of CSSD, OT, emergency sterilization, etc.

The ergonomically designed square structure provides an elegant look to the equipment. The chamber, shell, lid, and other parts are made of high-grade SS304 stainless steel.

Technical Specifications:

  • Sterilization : Class B (As per EN13060 standards).
  • Sterilization Temperature : 1210C ; 1340C.
  • Designed to operate on 220/110V Single Phase AC Supply.
  • Drying System : Vacuum drying system.
  • LCD display.
  • Test Cycles : B&D test ; Vacuum test ; Helix test.
  • Control accuracy : Temperature : 10C ; Pressure : 0.1bar.

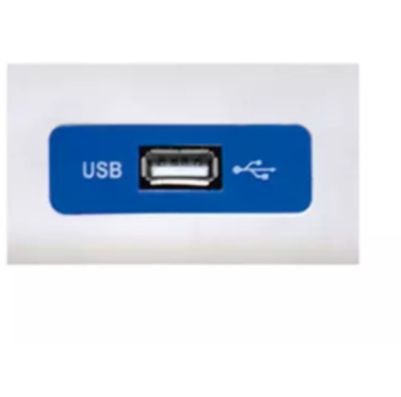

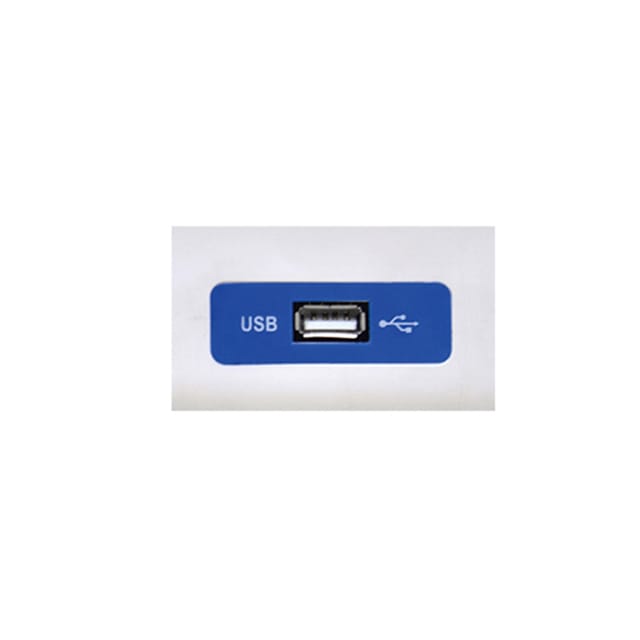

  • Standard USB port for data collection .
  • Water supply system : Built in water tank easy to clean.
  • Water tank Capacity : 4Ltr.
  • Water Consumption : 0.18Ltr Per sterilization Cycle.
  • Tray Stand : 3 Pcs SS trays on SS shelf.
  • Ambient Temperature : 50C to 400C .
  • Noise level : <50dB.
Previous
Next
Enquire Now

Chamber :

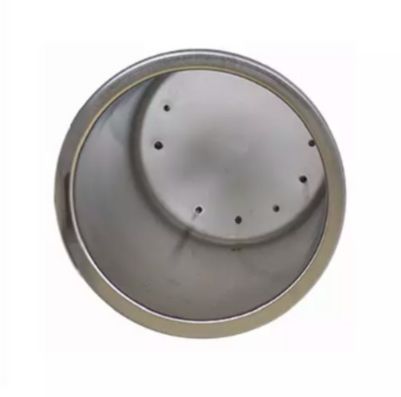

Made of SS304 grade unibody design structure to bear max. temperature of 1450C, max. working pressure 2.3bar & minimum -0.9bar.

Safety System :

  • Hand lock door
  • Pressure Lock system
  • Relief valve in case of over pressure
  • Pressure/Temperature overload protection
  • Alarm for system failure, cycle complete, water level low

Built in open type water tank :

The sterilizer uses an easy-clean open type water tank which can support repeated cycle running when fully filled.

High Efficiency Ultimate Vacuum :

High efficiency low noise vacuum system to remove air perfectly.

Multiple Program Types :

The microprocessor consists of various programs that include wrapped items, unwrapped items, custom program, rapid program, B&D test program, vacuum test program, pre-heat program & drying program.

Available in following chamber sizes:

  Dia.      ×       Depth               Power          Capacity                   External Size                             Gross Wt.

  247        ×    360 mm             1750W               18Ltr                   495X600X410mm                     72Kg.
  247        ×    470 mm             1850W               24Ltr                   495X700X410mm                      78Kg.
