Autoclave Vertical (Square Design Microprocessor Controlled) SMI-102SQM

Home Sterilization >Vertical Autoclave >Autoclave Vertical (Square Design Microprocessor Controlled) SMI-102SQM

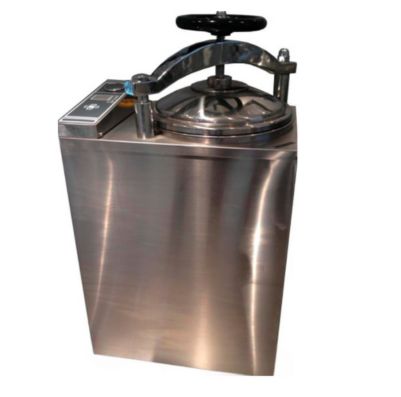

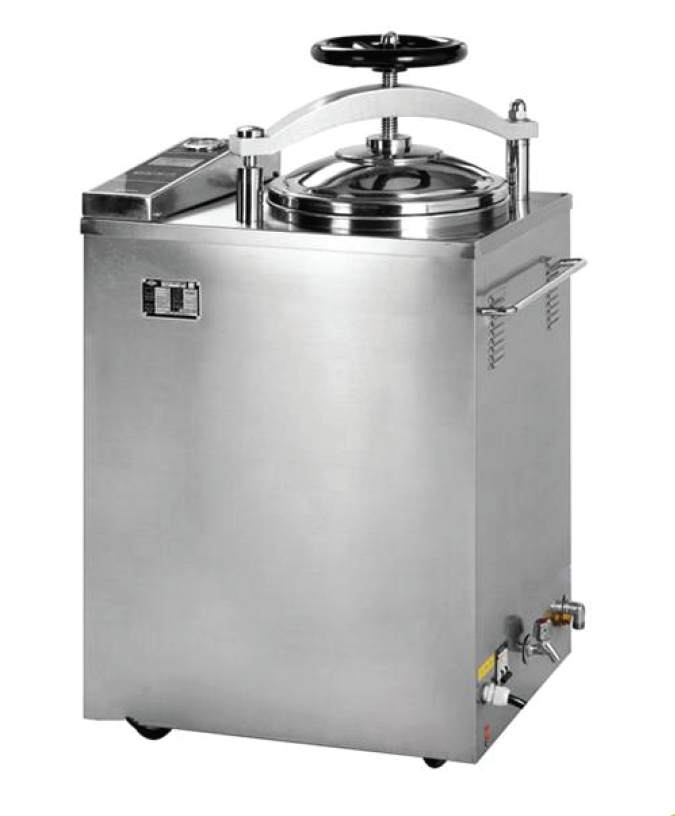

Autoclave Vertical (Square Design Microprocessor Controlled) SMI-102SQM



A JINDAL high-pressure, electrically heated vertical steam sterilizer is used for sterilization of surgical instruments, dressing material, linen, rubber, and plastic material by means of saturated steam under pressure.

It is an ideal instrument for medical and health institutions, laboratories, clinical institutions, biological research, the food industry, and other units to sterilize instruments, dressings, glassware, solutions, culture mediums, etc.

The ergonomically designed square structure provides an elegant look to the equipment. The chamber, shell, lid, and other parts are made of high-grade SS304 stainless steel.

Built-in vacuum pump to remove air pockets by pre-vacuuming done by a microprocessor controller. The vacuum dry function is an added advantage in the sterilizer.

Ergonomic latest design features

  • Built in safety interlock
  • Bright LCD display with soft touch keypad
  • Silicone gasket to provide perfect seal
  • Vacuum dry to ensure completely dry load
  • Over temperature, over pressure protection
  • Safety valves for mechanical safety
  • Supplied with an SS basket
  • Buzzer to indicate end of sterilization cycle
  • Auto exhaust of steam after the end of cycle
  • Printer for recording cycle
  • Working Temp. Range : Up to 1340C
  • Working Pressure Range : Up to 30 PSIG
  • Handwheel type opening for quick operation
  • Three Pulsation pre vacuum for complete removal of air pockets
  • Low water cut off device to prevent dry running of heaters
  • Made of high quality SS 304 grade stainless steel
  • Microprocessor controller to set sterilization parameters

High quality immersion type heating element heats the water and steam to desired temperature and pressure. The instrument is supplied complete with Stainless Steel basket, cord and plug. Built in manual steam release valve for safety.

The instrument is designed to operate on 220V AC Supply (Model with 110V also available).

Available in following chamber sizes

  Dia.    X   Depth             Load
  350     X   525 mm        4.0 kw (50Ltr)
  400     X    625 mm      5.0 kw (75Ltr)
  450     X    650 mm      5.0 kw (100Ltr)

Product Brochure

Product Brochure Link here
