S.M. Scientific Instruments (P) LTD

Atomizing Disinfection Robot SMI-107ADR

Home Sterilization >Disinfectors >Atomizing Disinfection Robot SMI-107ADR

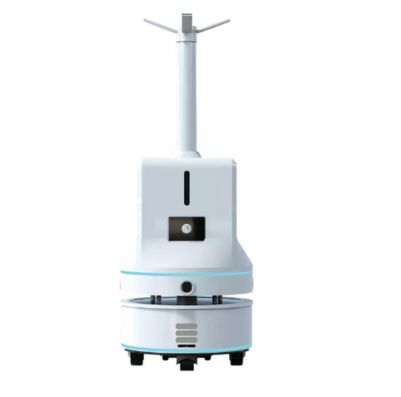

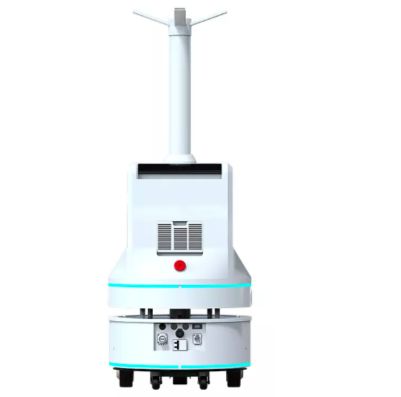

Atomizing Disinfection Robot SMI-107ADR

CLICK TO SCAN

Description

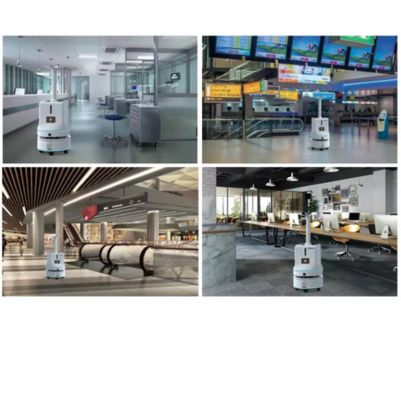

The Jindal atomizing disinfection robot is designed to purify the air by rapidly atomizing liquid and automatically spraying the area. This robot can navigate automatically to the designated area for full-coverage spraying and supports mobile app control, enabling man-machine separation and minimizing personnel exposure, thus greatly improving safety during use. With its simple structure, it is easy to maintain and manage. The spray robot is widely applicable in hospitals, airports, office buildings, shopping malls, schools, factories, and other public places

Features

  • The large-capacity 16L disinfectant tank enables continuous disinfection for more than 5 to 6 hours, with a coverage area of up to 4000 to 5000 m2

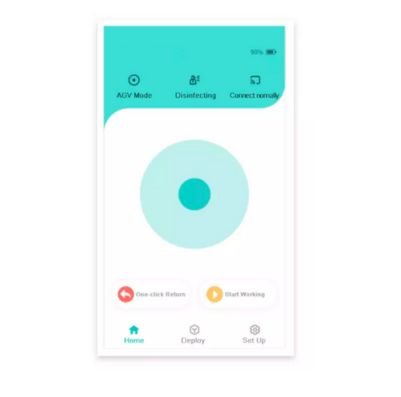

  • Supporting APP control, the no-touch automated disinfection greatly improves the safety of use during the disinfection process
  • Offering two disinfection modes: timed disinfection and immediate disinfection
  • Equipped with autonomous navigation function and lidar obstacle avoidance, ensuring full coverage of the required area
  • Supporting automatic return to charge without the need for human assistance
  • Automatically returning to the waiting area and turning off the spray device when the disinfectant level falls below the warning position

Technical Data

Model No.:

SMI-107ADR

External Size (mm)

φ500 X 1335

Atomization Efficiency

2L to 3L/H (adjustable)

Disinfectant Capacity

16L

Spray Diameter

5-6m

Disinfection Medium

Hypochlorous acid, Chlorine dioxide, Hydrogen peroxide, Peroxyacetic acid, etc.

Spray Method

Four-direction spray, large opening spray(optional)

Moving Way

Autonomous path planning and automatic navigation

Moving Speed

0 to 1 m/s

Safety System

Lidar obstacle avoidance, power-off protection of disinfectant shortage

Consumption

150W

Drive Method

Differential Drive

Ability to Cross Obstacles

±10mm

Gradeability

≤8°

Driving Channel Width

≥700mm

Noise

≤50dB

Operating Time

5 to 6h

Battery

Lithium battery 28AH 24V, rechargeable 10,000 times

Charging Time

3 to 4h

Power Supply

AC110/220V, 50/60Hz



Package Size

Main Body (W X D X H) mm

430 X 430 X 660

Chassis (W X D X H) mm

650 X 650 X 770



Gross Weight

Main Body

10Kg

Chassis

62Kg

Product Brochure

Product Brochure Link here
