Handheld UV Analyzer SMI-TU-6

Home Heating & Environment> Handheld Homogenizers >Handheld UV Analyzer SMI-TU-6



Handheld UV Analyzer SMI-TU-6

CLICK TO SCAN

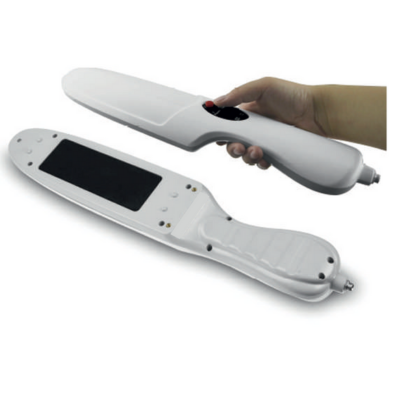

JINDAL SMI-TU-6, the handheld UV analyzer, provides optional single wavelengths of 365 nm/365 nm and 254 nm or double wavelengths of 365 nm/254 nm. It is used for the detection of nucleic acid dyes, such as ethidium bromide and acridine orange, in fluorescence dyes. The handheld UV analyzer is widely used for nucleic acid testing (observing fluorescence) in many industries, including molecular biology, biological chemistry, medical science, forensic autopsy examination, and biological agents.

Latest Ergonomic Design Features

  • Compact designed, simple operation, one-key switch the wavelength.
  • Lamp wavelength 365nm or 254nm; long using life of at least 1500 hours.
  • With a battery, it can be used for a long time without electricity.

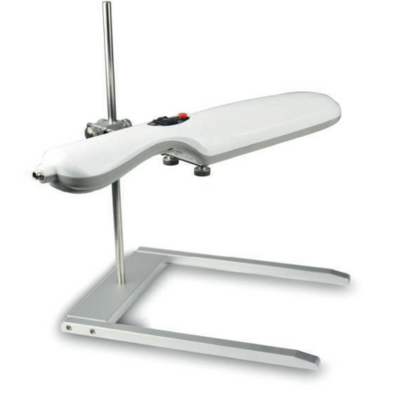

  • H-type stand (optional) to fix the instrument, meet the demand of special operations. It can adjust height and angle.
  • Single wavelength of the instrument is 470 nm. Long life LED to 1 hundred thousand hours.
  • Single and double wavelength for choice.

Technical Data

Wavelength : Dual 365nm,Dual 254nm,or 254nm Combine with 365nm
UV Window : 150 x 5 mm
Voltage :  AC 100 ~230V, 50/60Hz
Power : <6W
Dimension(W X D X H) mm :  440 x 75 x 51mm
Net Weight : 0.7kgs

Attention

  • Do not brush or press the UV color filter. Keep it clean and dry. Clean the UV color filter by gauze after use
  • Ultraviolet radiation takes a toll on health, shut off the instrument, when it is not in use. Do not point it at people when using
