Benchtop Incubator Shakers SMI-159BIS-150L

Home ≫Shakers & Shaking Incubators> Benchtop Incubator Shakers SMI-159BIS-150L

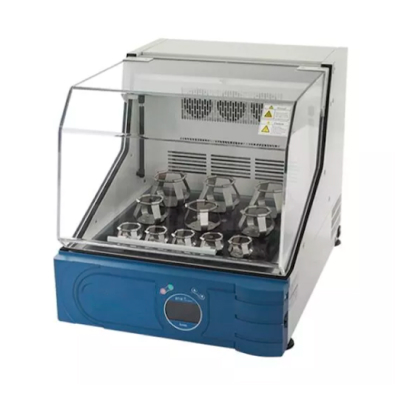

Benchtop Incubator Shakers SMI-159BIS-150L

CLICK TO SCAN

Description

Jindal Benchtop incubator shakers SMI-159BIS-150L is used to combine incubated and refrigerated temperatures in an orbital shaker with a spacious chamber. It provides accurate temperature control, while realizing shaking incubating to meet bacteria, microbe suspension incubation requirements. It provides high visibility for sample harvesting. The safety interlock protects the operator by stopping platform motion when the lid is lifted. It is an ideal instrument for insect cell culture, extraction procedures, general mixing, staining and destaining, hybridizations, solubility studies, plasmid production, bacterial suspensions, washing procedures, protein expression.

  • Intelligent control system for easy operation
  • User friendly  design combining incubator and shaker function
  • Brushless motor with large start torque, wide speed adjustment
  • Multi-segment temperature, speed,  time program at the same time
  • 304 mirror stainless steel structure inside the working chamber

Features

  • No frost and no fluctuation temperature control technology (20℃ or more)
  • More precise temperature control with PT1000 temperature sensor
  • Five-level automatic defrost function
  • 3 power-off mode selection functions, power-off reply, stop or restart
  • Ambient temperature detection function
  • Servo motor for more precise and stable control
  • Imported temperature sensor
  • With over temperature protection, leakage protection, door opening alarm, sensor alarm and other functions
  • With positive and negative control motor function
  • Printer
  • PC monitoring software

Technical Parameters

Model
SMI-159-BIS150LA
SMI-159-BIS150
Range of rotation
25~300 rpm
25~300 rpm
Speed accuracy
± 1 RPM
± 1 RPM
Temperature control range
Ambient temperature - 15 ℃ (minimum 4) ~ 65 ℃
Ambient temperature+5℃~65℃
Temperature control accuracy
± 0.1 ℃
± 0.1 ℃
Temperature uniformity
Less than or equal to 1 ℃ (20 to 40 ℃, when cooling is turned on)
Less than or equal to positive and negative 2℃(20~40℃)
Cooling power
500W
n/a
Heating power
750W
750W
Display method
LCD screen display
LCD screen display
Controller
P.I.D control
P.I.D control
Rocker size(W*D)mm
460mm W x 460mm D
460mm W x 460mm D
Chamber size(W*D*H)mm
520mm W x 550mm D x 450mm H
520mm W x 550mm D x 450mm H
Dimensions
620mm W x 840mm D x 630mm H
620mm W x 840mm D x 630mm H
Product weight
100Kg
100Kg
Power supply
AC220V±10%50-60Hz
AC220V±10%50-60Hz

Product Brochure

Product Brochure Link here
