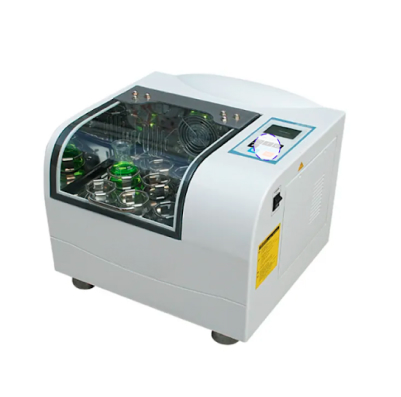

Benchtop Incubator Shakers (Small capacity) SMI-159BISSC

CLICK TO SCAN

Description

Jindal Benchtop Incubator Shakers (small capacity) SMI-159BISSC is used in the laboratory and pharmaceutical industry.

Features

  • 2 shaking modes: Reciprocating and Orbital (switchable)
  • ABS engineering plastic construction

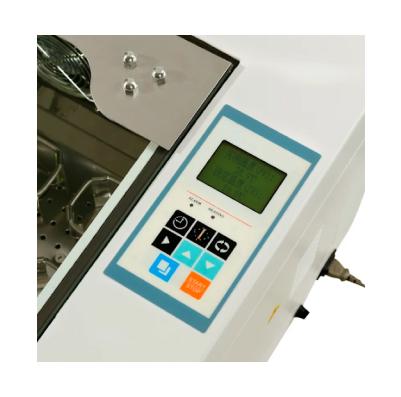

  • LCD display (with backlight) of set and working parameters

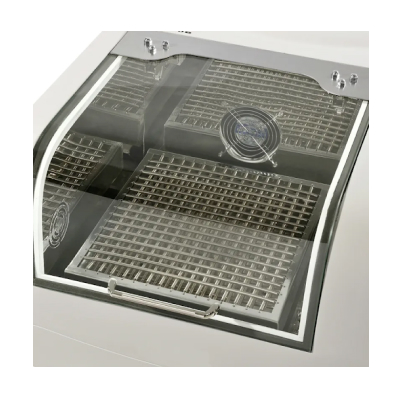

  • Large toughened glass window and stainless steel chamber
  • Single-shaft drive technology, quiet and durable
  • P.I.D environmental scanning micro-processing controller with acoustic & visual alarm
  • AC inductive long-life brushless motor, with wide speed regulation, constant speed of rotation,  and maintenance-free
  • High/low limit over temperature acoustic & visual alarm, high/low limit over speed alarm, stop-running protection for door opening, electric current leakage and overload protection. Motor overheat protection. Automatic power cut-off in case of temperature out of control or abnormal over-temperature
  • Repeat, increment (step) and 8-segment curve programming setting
  • Power-failure recovery, parameter memory, temperature/speed calibration, time display, and room/working temperature display.
  • Acceleration control circuit ensures soft start, smooth acceleration and safety of samples
  • Safety protection of automatic stop of shaking when door is open
  •
Previous
Next
Enquire Now

Specifications

Product
Benchtop Incubator Shakers (Small Capacity)
Model
SMI-159BISSC
Control
P.I.D.(Environmental Scanning Microprocessor)
Display
LCD(simultaneous display of working & set parameters)
Convection Mode
Forced Convection
Oscillation Mode
Revolution/Reciprocating (Switchable)
Drive
Single-shaft balance device
Working Environment
Temperature: 25° C.Humidyty 20%-90%
Temp. Range
RT+5°C-60°C
Temp. Accuracy
±0.1°C
Temp. Uniformity
±0.5°C
Speed Range(rpm)
50-300
Speed Accuracy
±1rpm
Oscillation Amplitude
∅25mm
Heater Power
150W
Timing Range
0-999.59 hr/Continuous
Tray Size(mm)
260x260
Tray Qty.
1 PC( Optional:flask clam tray and universal spring tray)

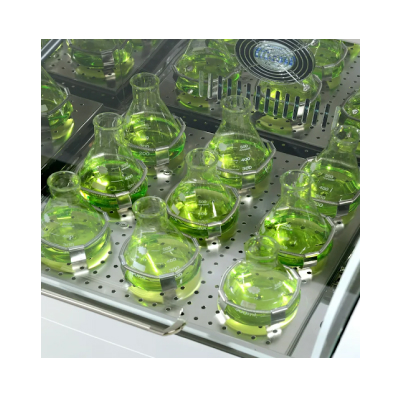

Flask Capacity
250mL x 4,or, 100mLx 9
Weight
55Kg
Overall Dimensions(DxWxH,mm)
460mm D x 410mm W x 390mm H
Power Supply
AC 200-240V/50-60Hz (Optional: AC110V/60Hz)
Power
280W
Chamber Material
Stainless Steel
Outside Construction
ABS engineering plastic & Galvanized steel sheet duly powder coated
